AR26.60-P-0600P Remove/Install Floor Selector



AR26.60-P-0600P Remove/install floor selector
- with TRANSMISSION 716.6

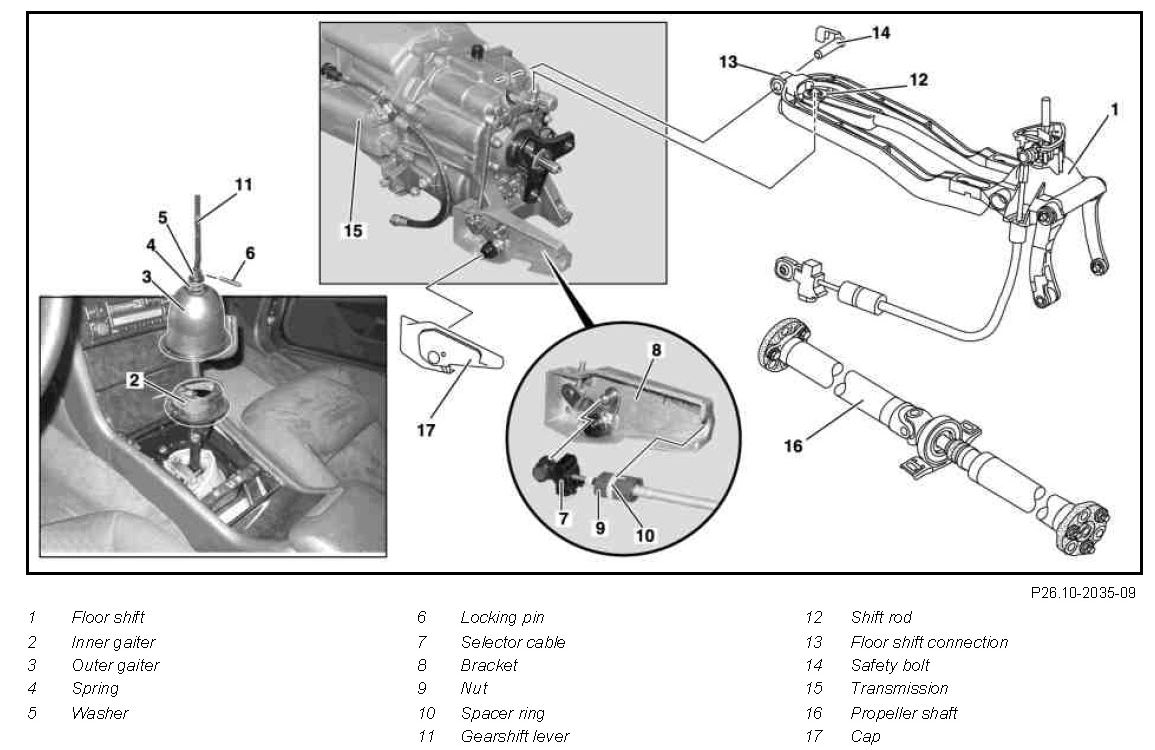

Component Identification:

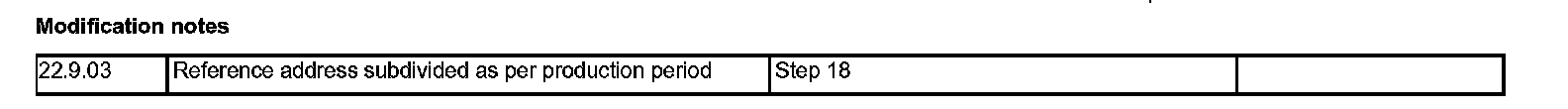

Modification notes:

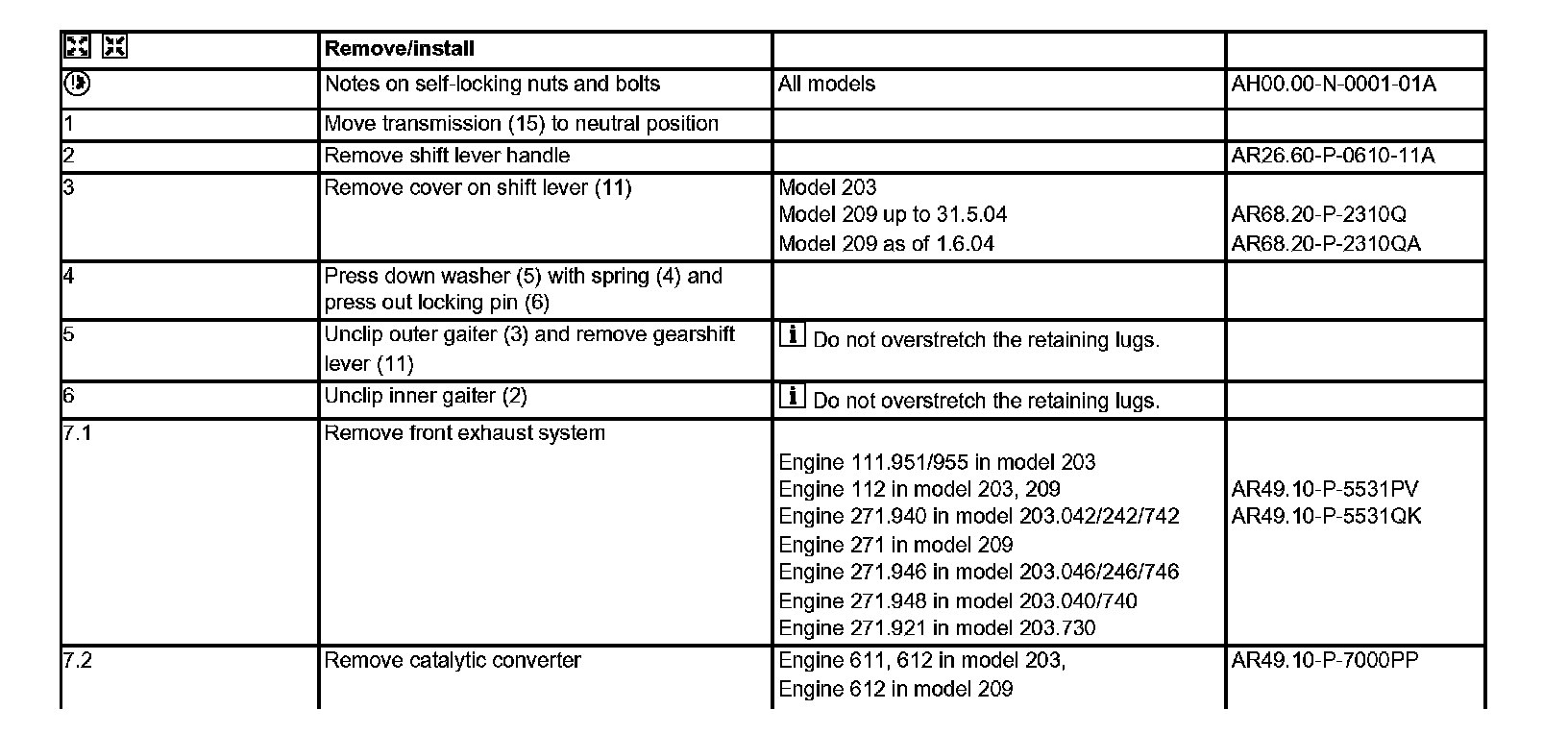

Remove/install Steps 1-7.2:

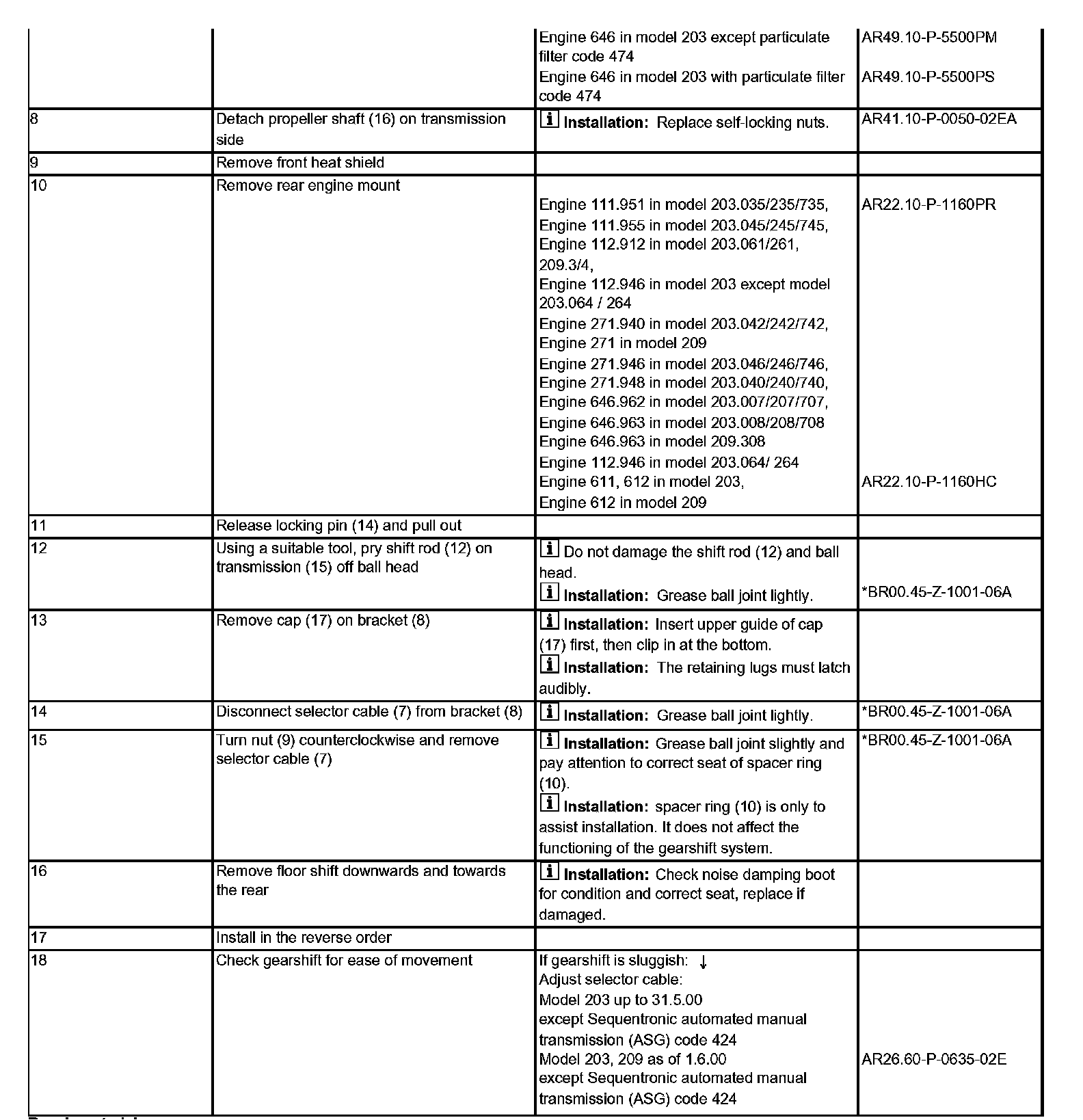

Remove/install Steps 7.2 (Continued)-18:

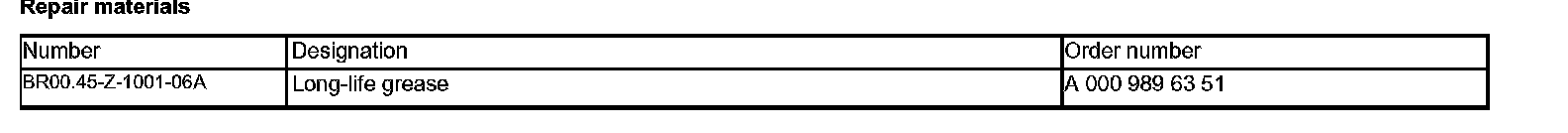

Repair materials:
