AR26.60-P-0600-02V Disassemble, Assemble Center Shifter Console and Shift Rod at Transmission

AR26.60-P-0600-02V Disassemble, assemble center shifter console and shift rod at transmission
- Vehicles with single pole circuit

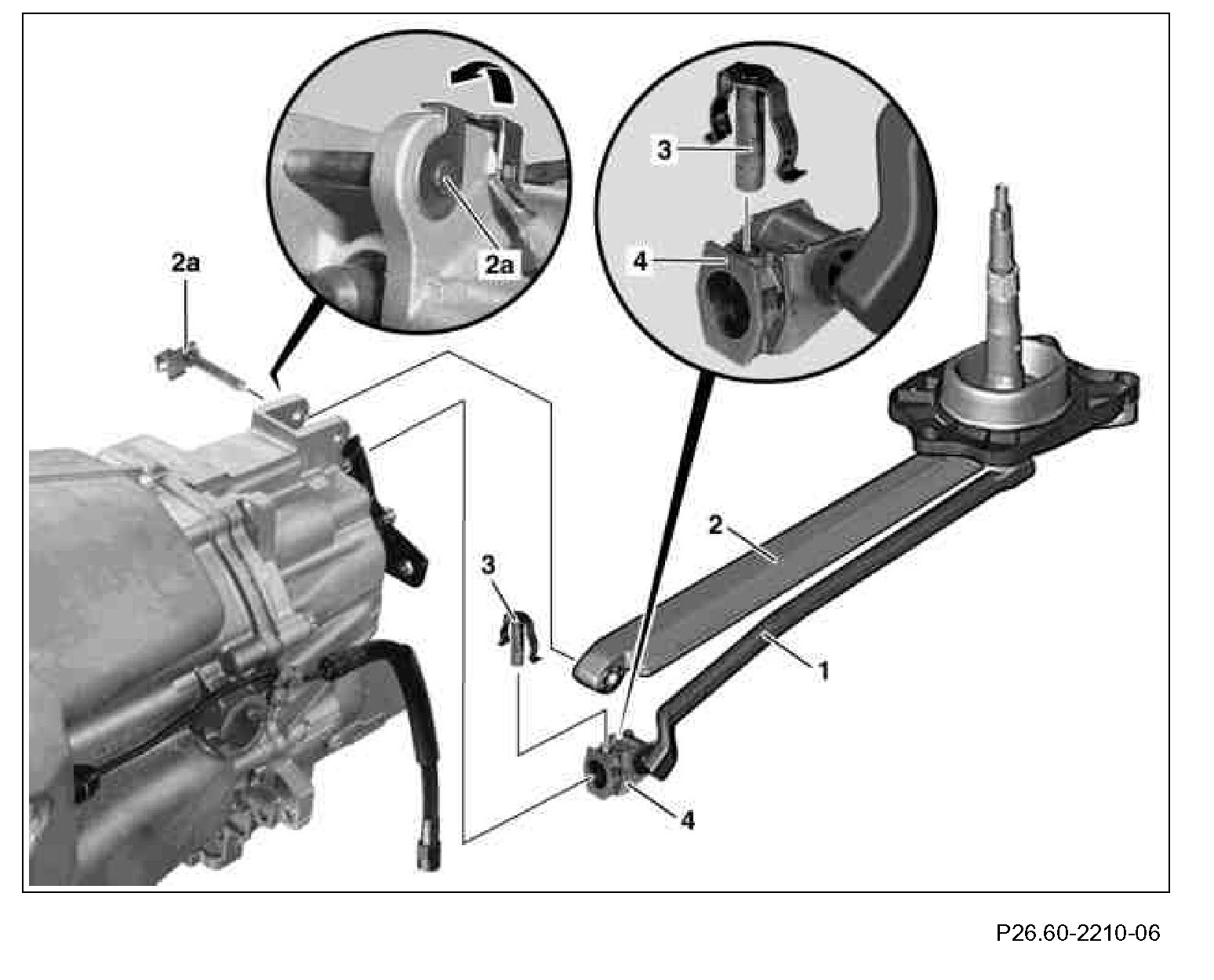

Component Identification:

Shown on transmission 716.631
1 Unlock the lock of the bolt (2a) using a screwdriver and swivel bolt (2a) upwards through 90 degrees.
2 Pull bolt (2a) out of the center shifter console (2).
3 Pull locking pin (3) out of connecting piece (4).
4 Remove center shifter console (2) from transmission and shift rod (1) with connecting piece (4) from main shaft.
5 Install in the reverse order.
