Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Overhaul >> AR35.31-P-0550Q Disassemble/Assemble Rear Axle Center Assembly, Adjusting Gear Set

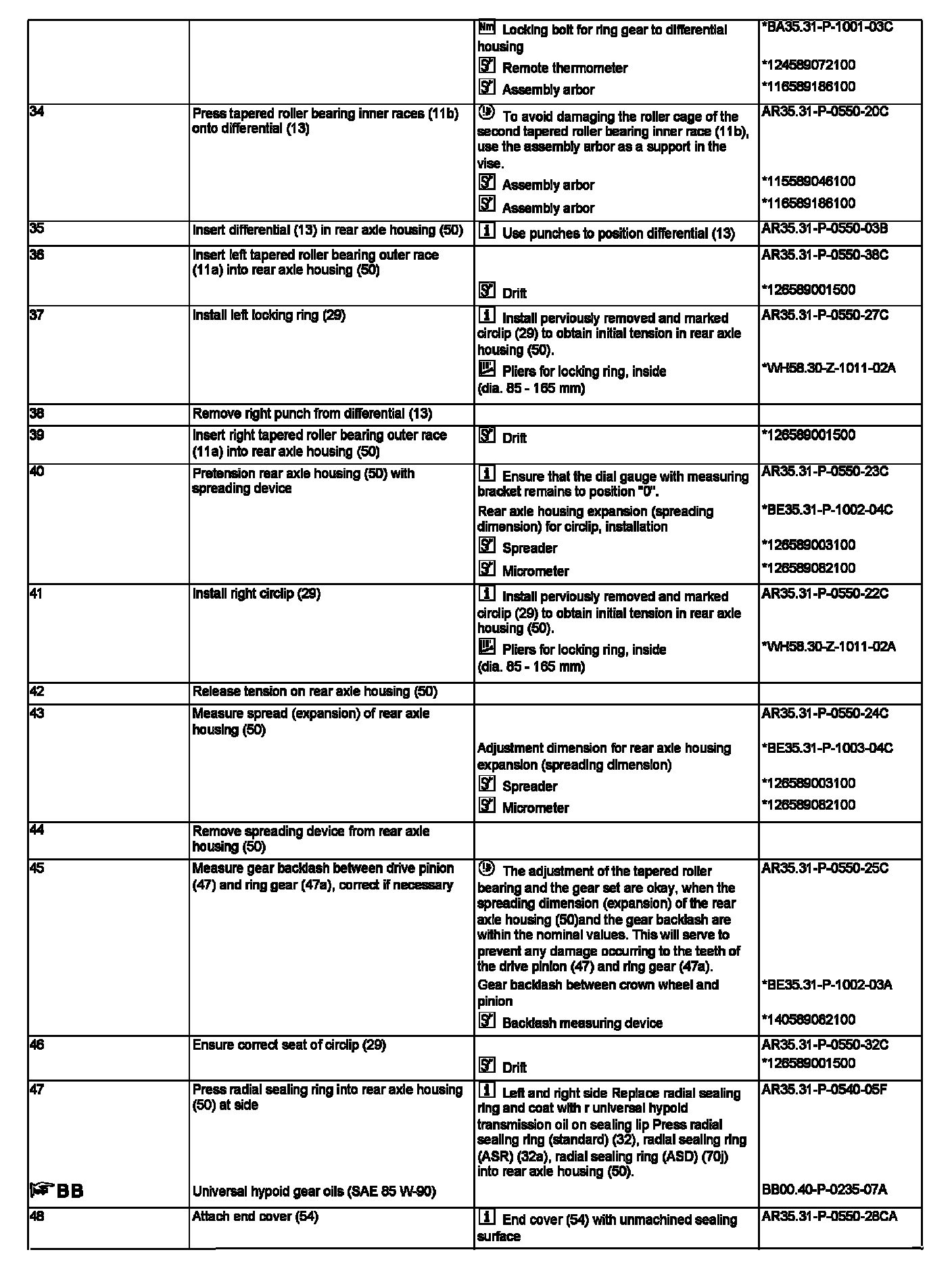

AR35.31-P-0550Q Disassemble/Assemble Rear Axle Center Assembly, Adjusting Gear Set

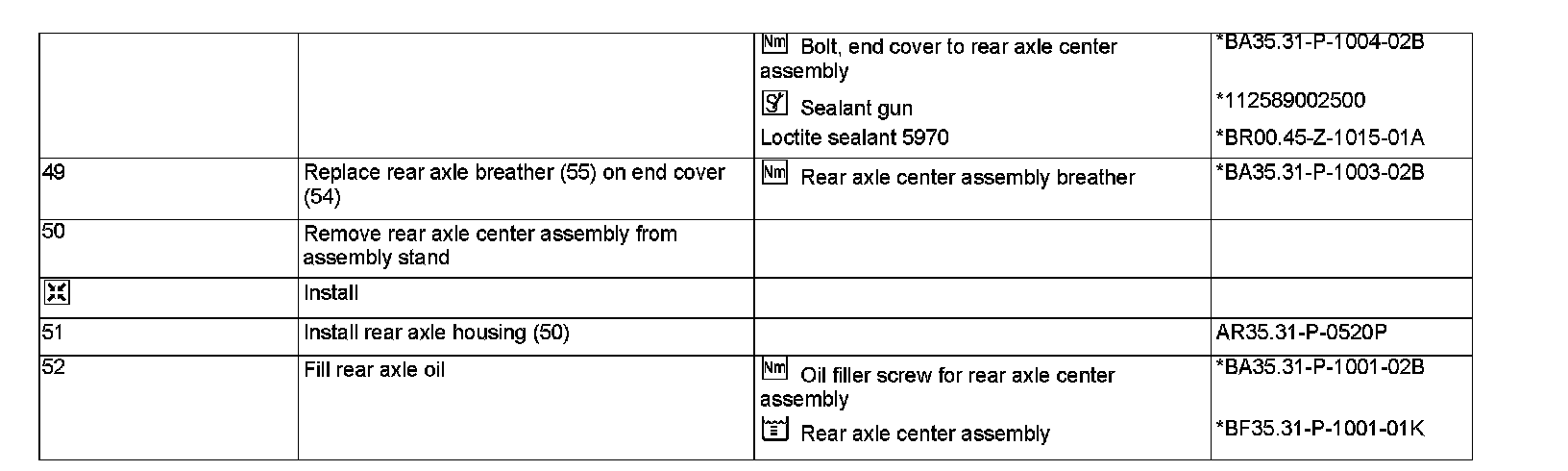

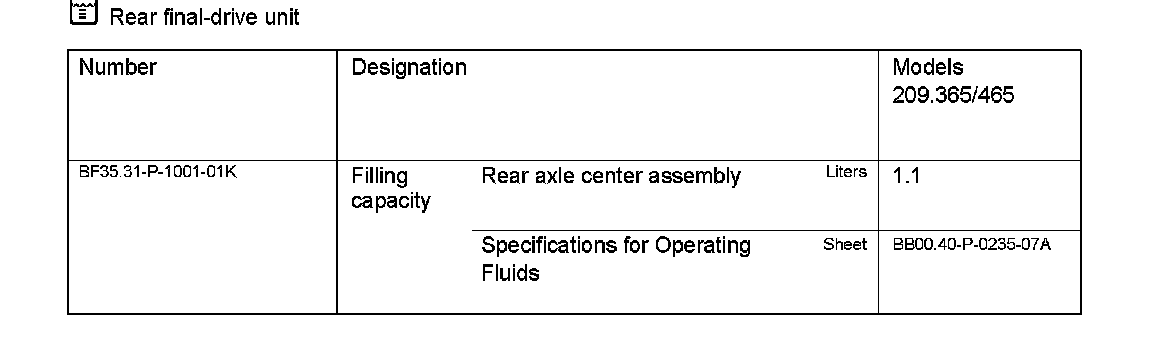

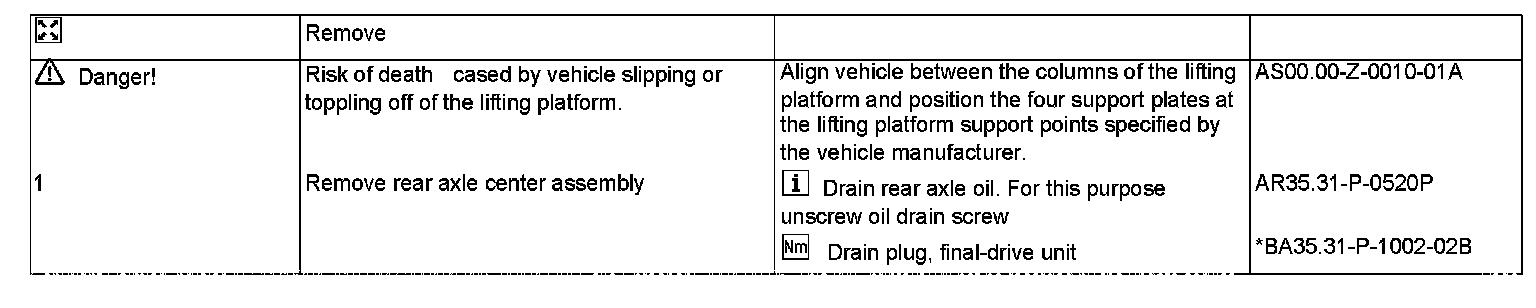

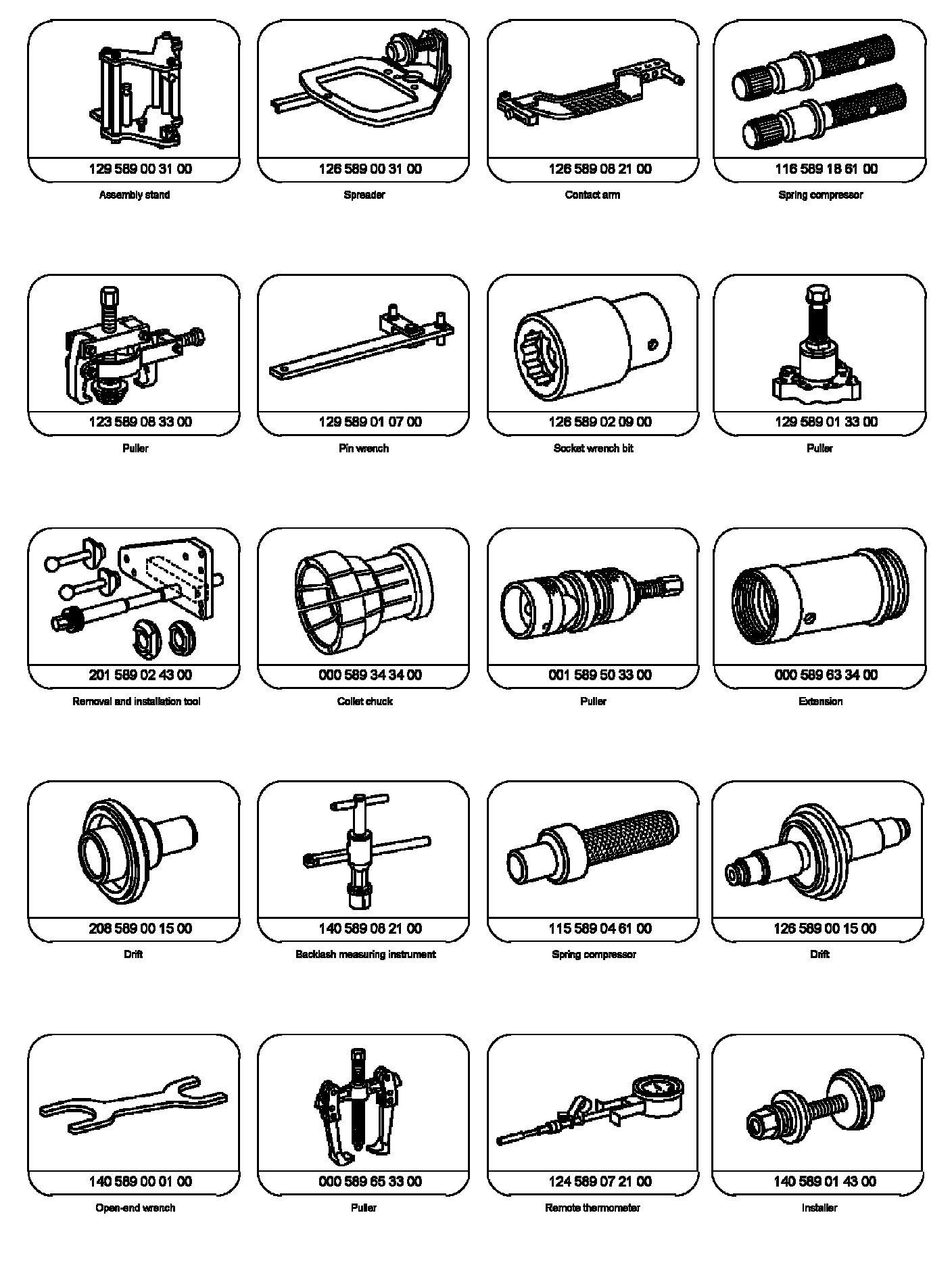

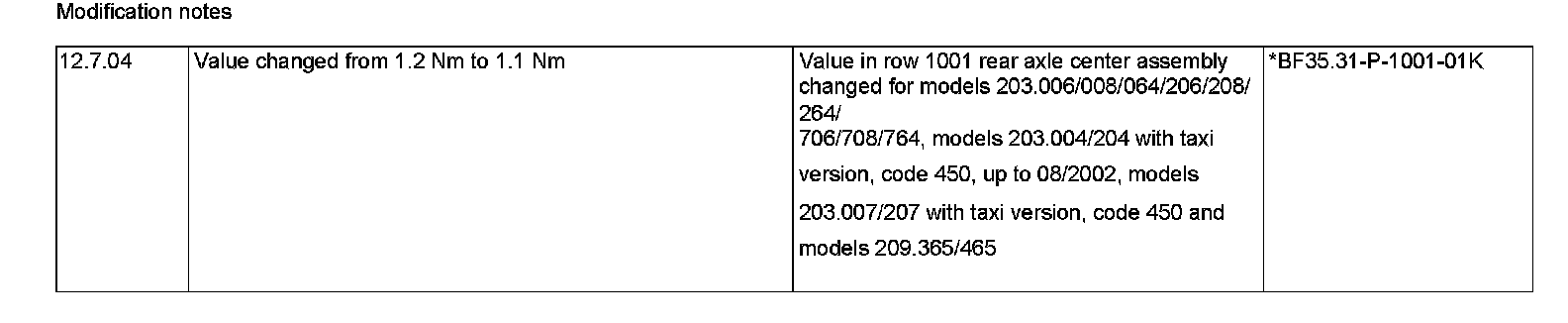

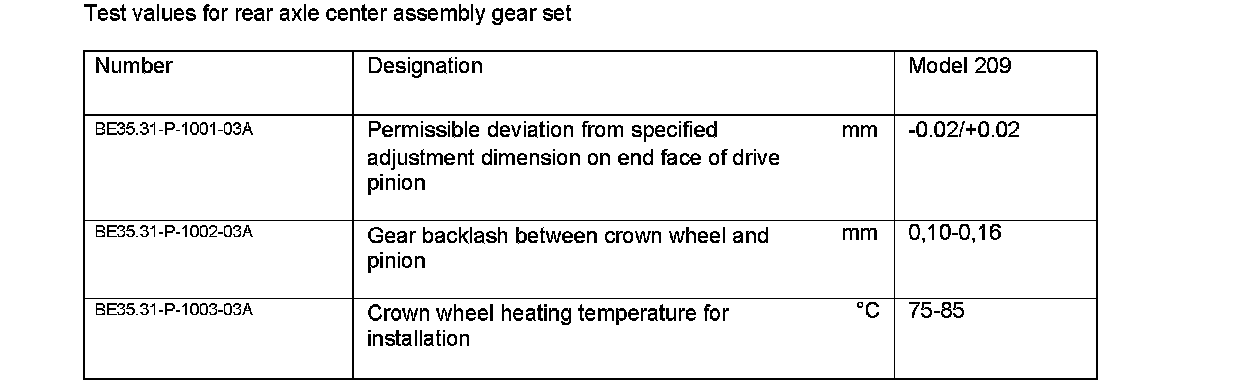

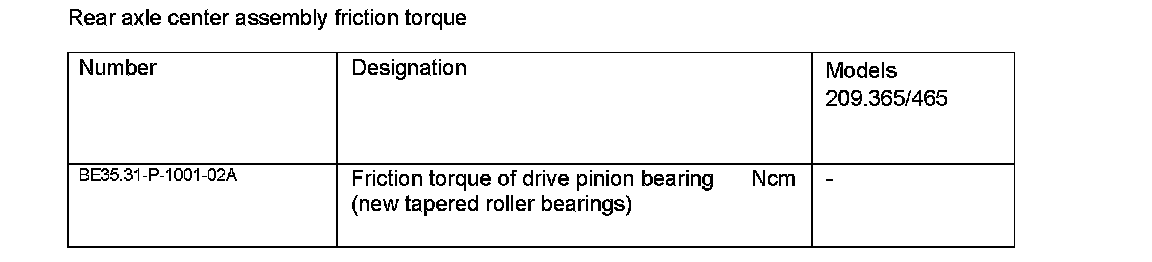

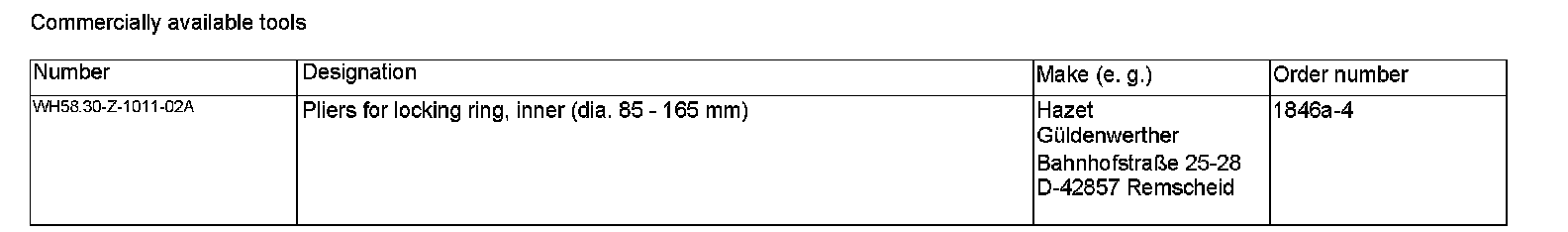

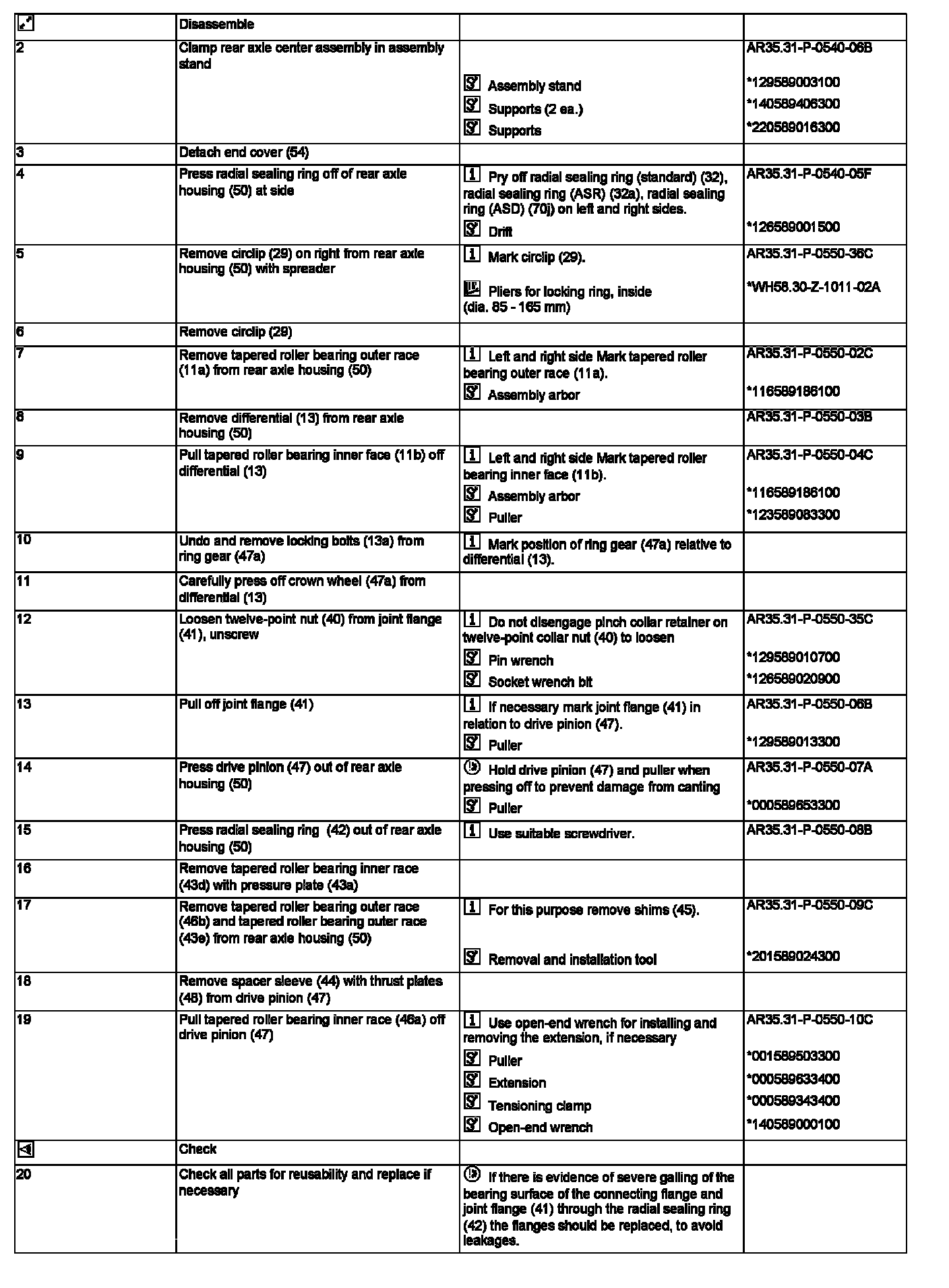

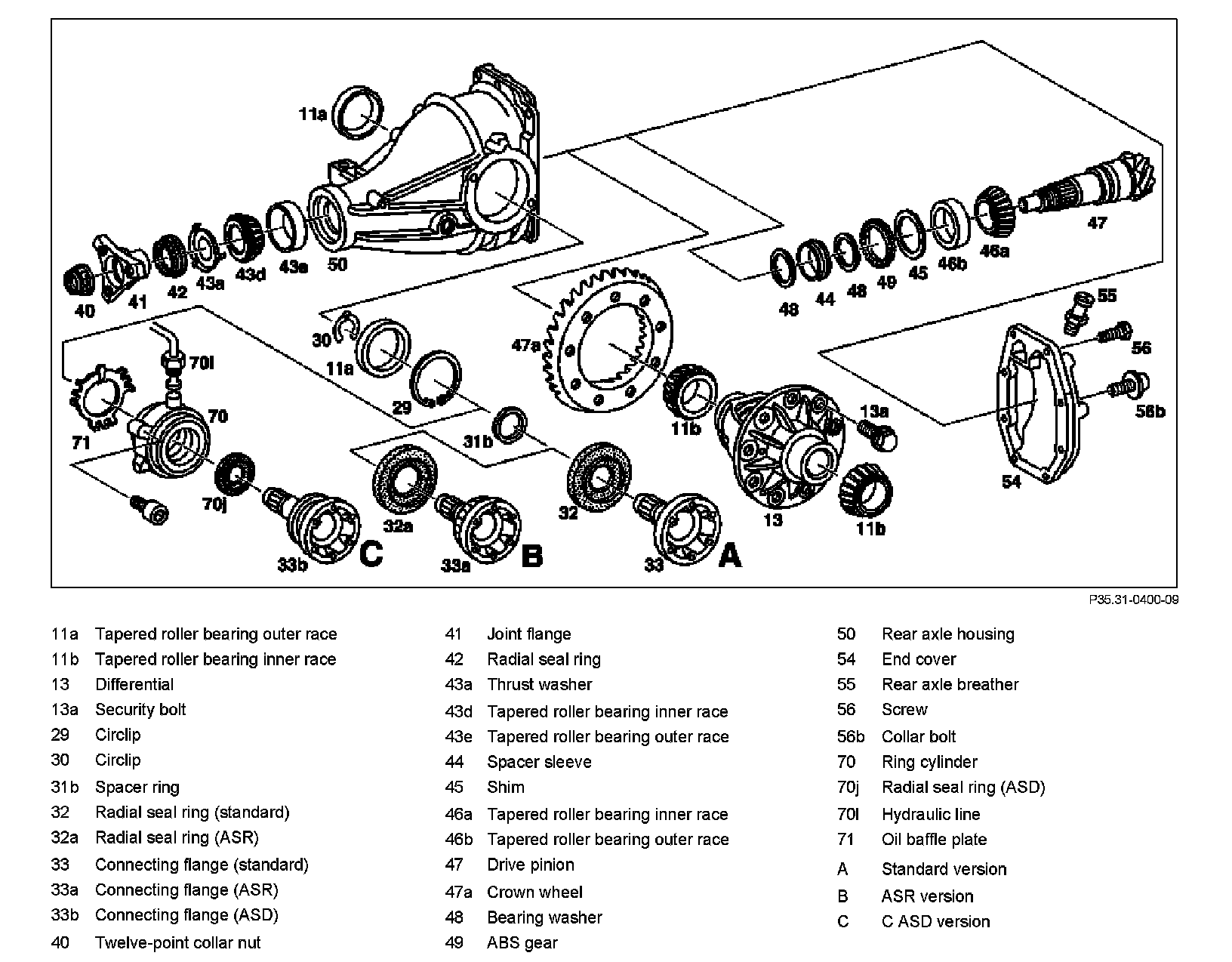

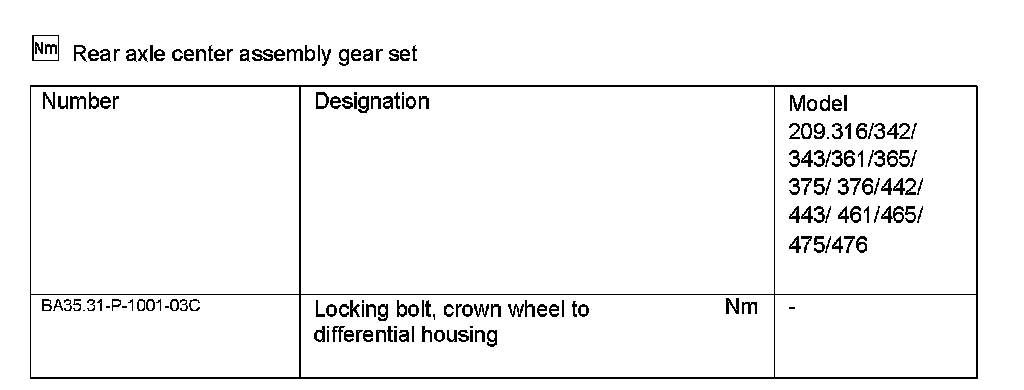

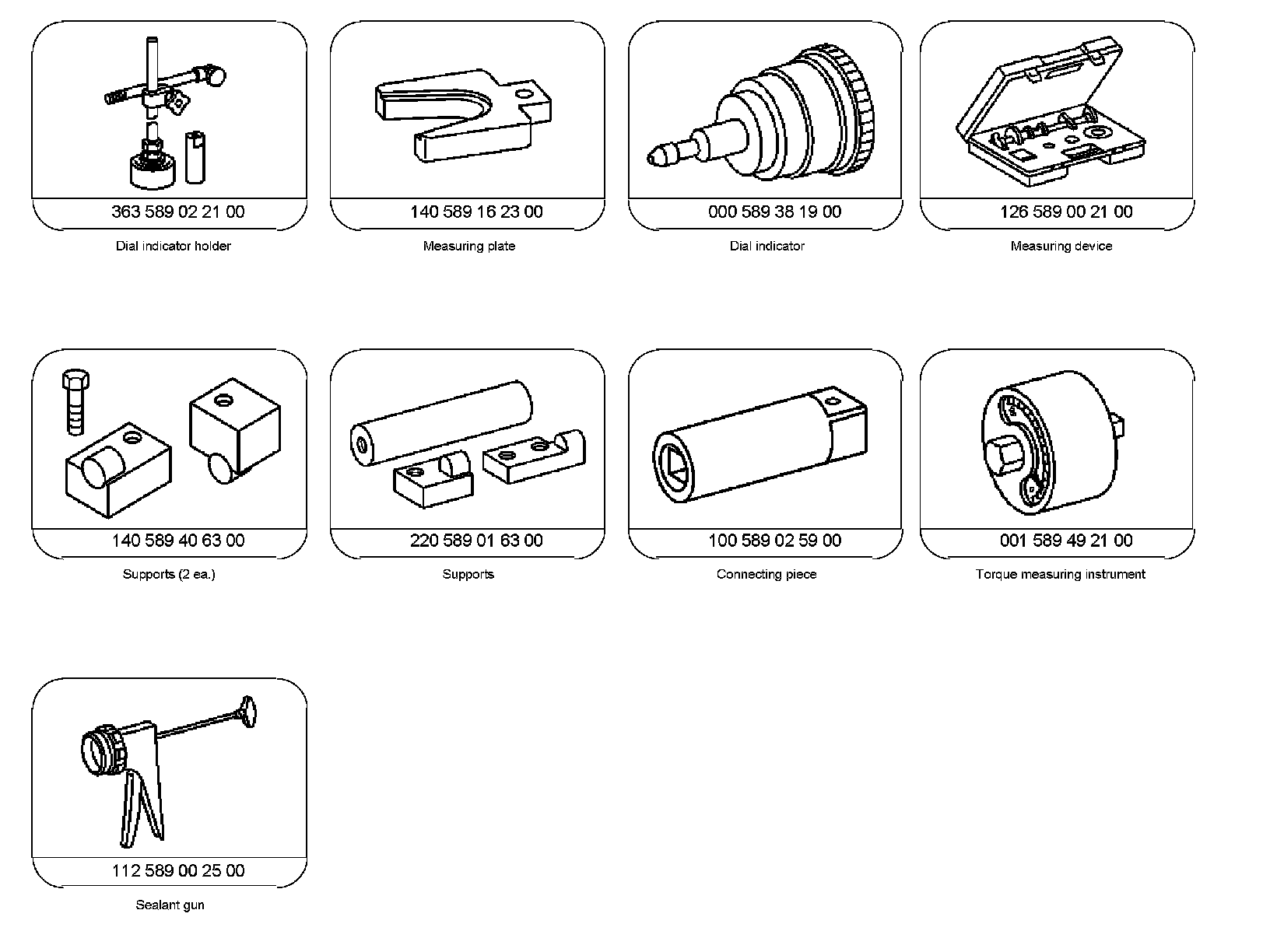

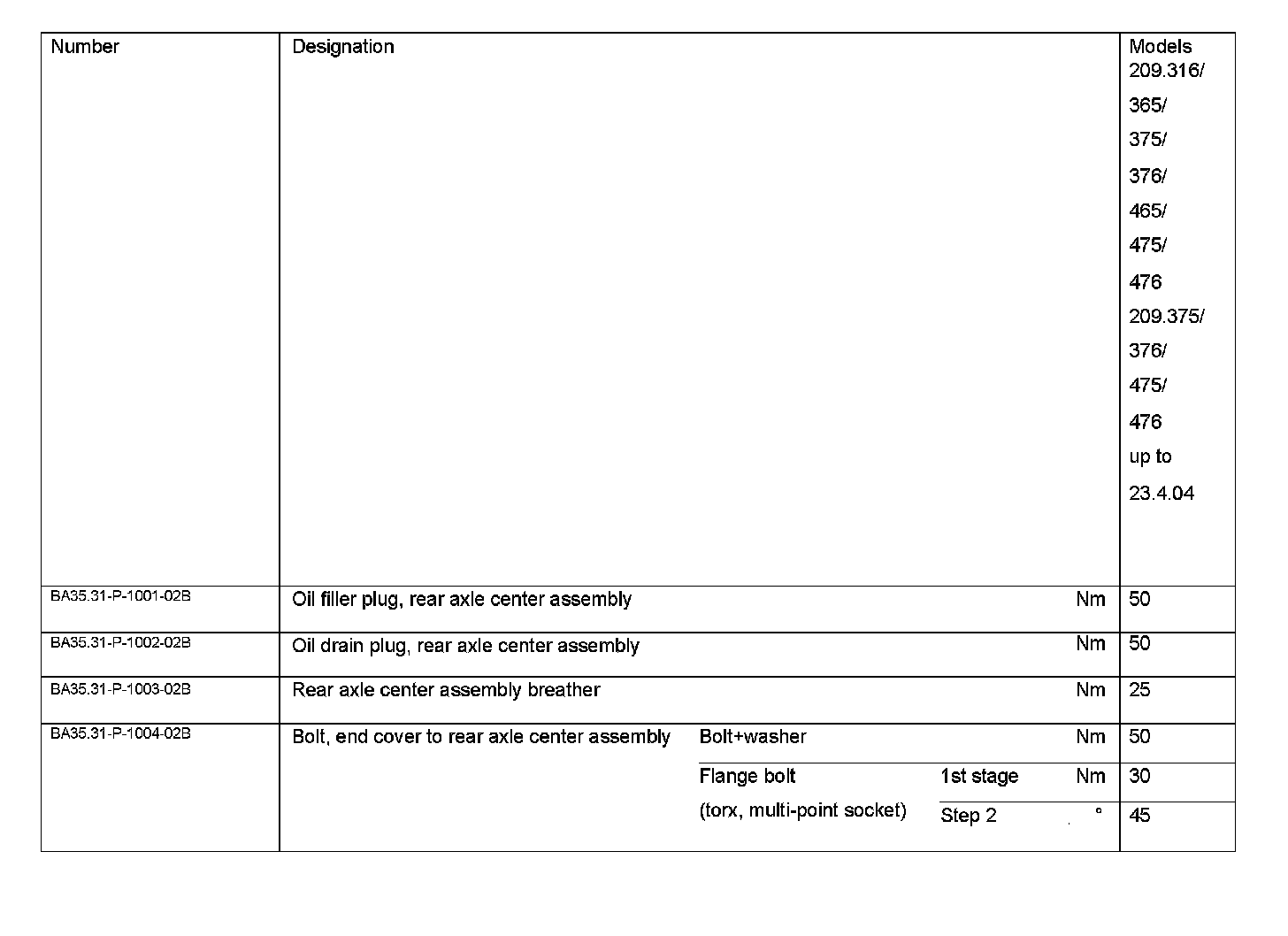

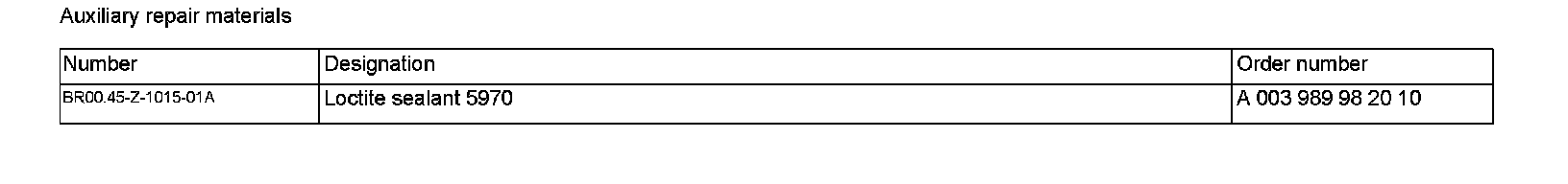

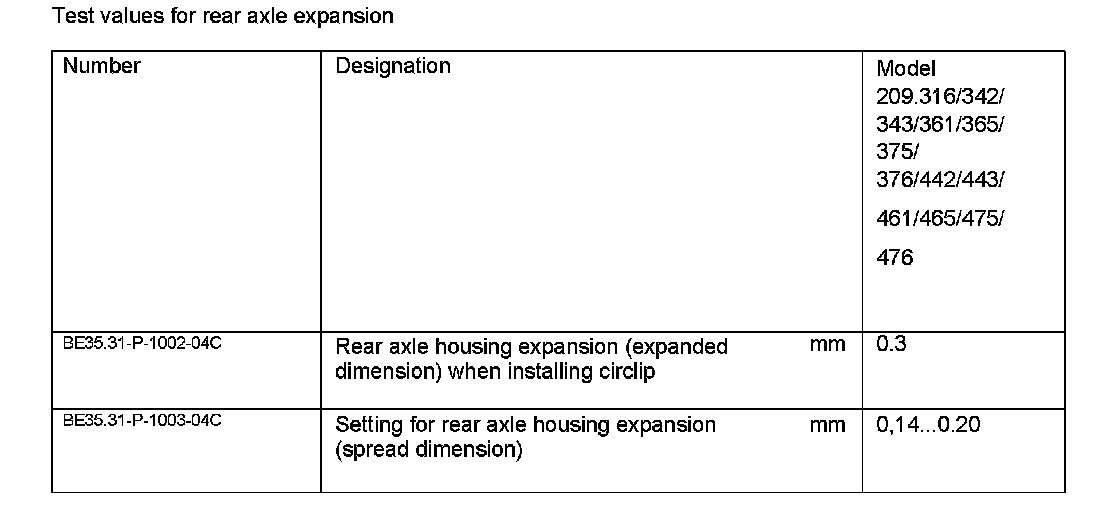

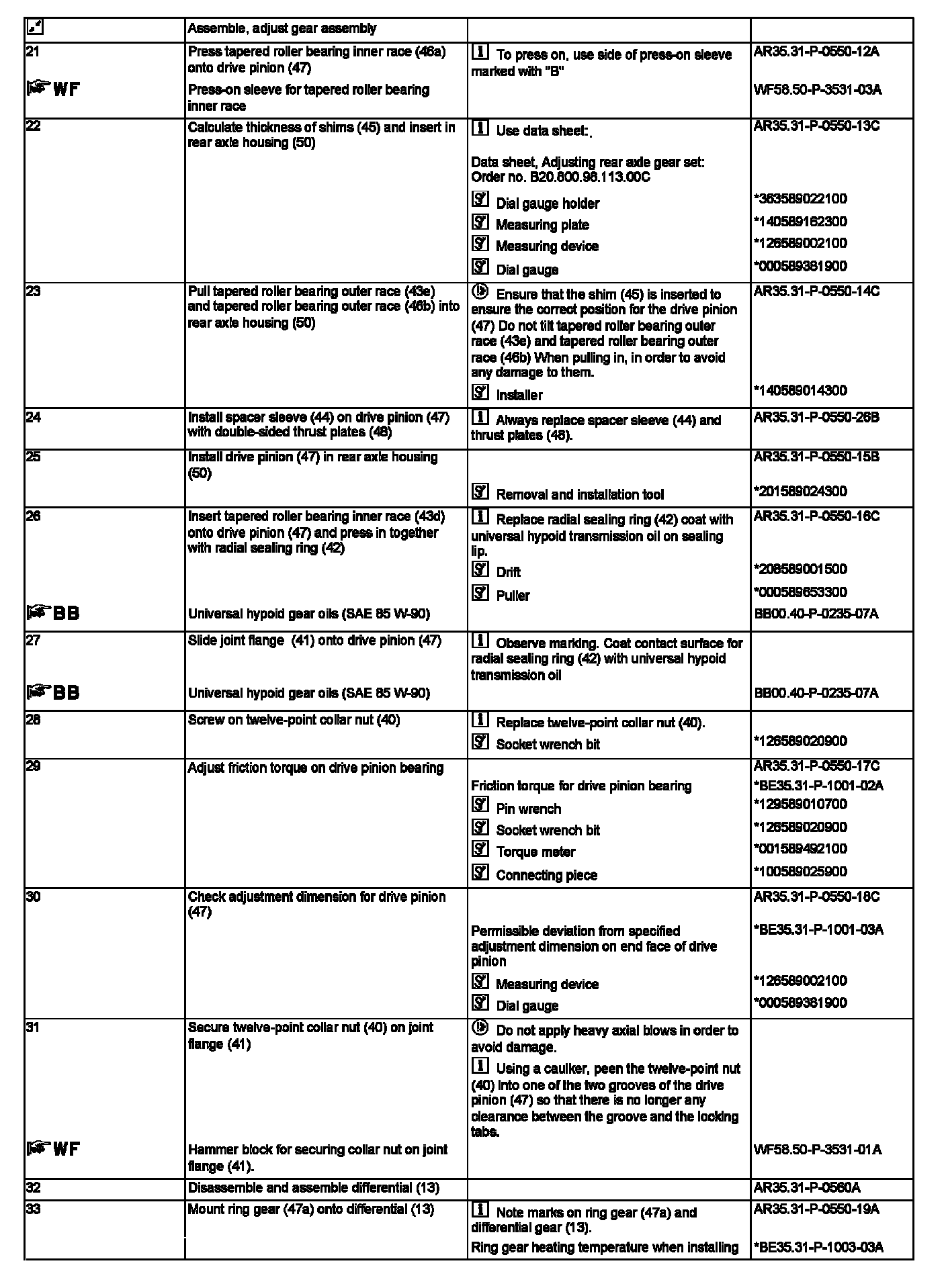

Disassemble/assemble rear axle center assembly, adjusting gear set





































Rear axle center assembly housing:
