AR35.31-P-0550-26PA Fitting Spacer Sleeve With Bearing Washers on Both Sides Onto Drive Pinion

AR35.31-P-0550-26PA Fitting spacer sleeve with bearing washers on both sides onto drive pinion
- Rear axle center assembly dia. 185, 198, 210

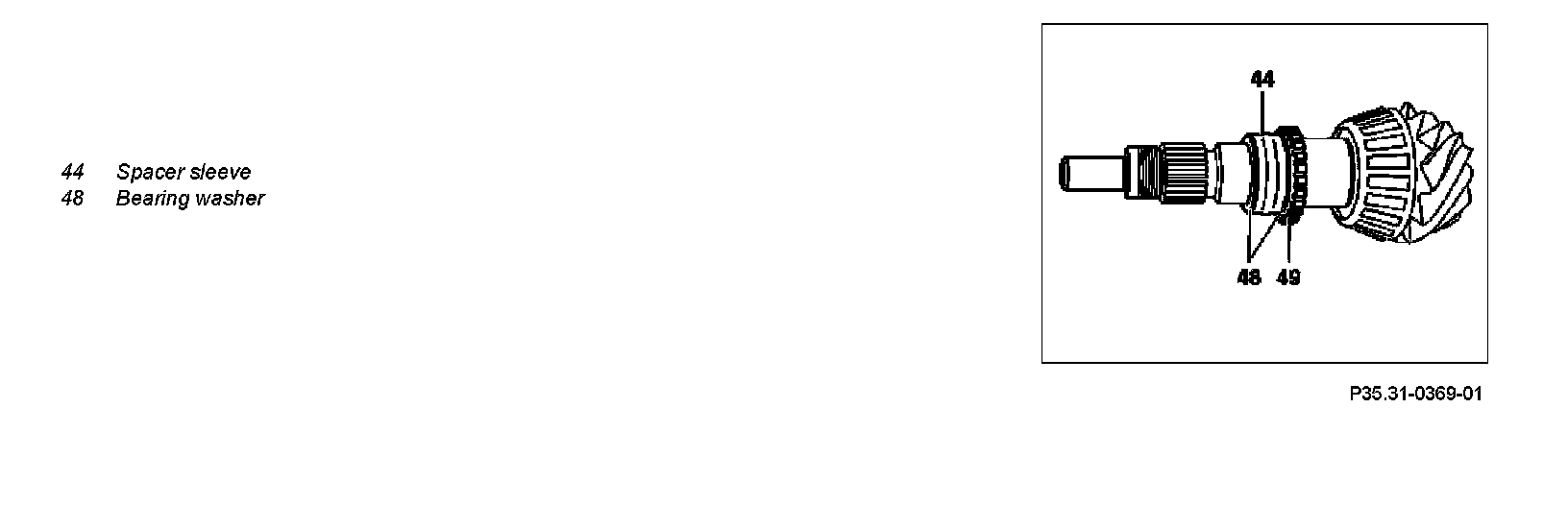

Component Identification:

1 Position a bearing washer (48) on each side of spacer sleeve (44) and slide onto drive pinion.

The spacer sleeve (44) and bearing washers (48) must always be replaced.
