AR35.31-P-0540-05CA Pressing Off, Pressing In Radial Seal at Side of Rear Axle Housing

AR35.31-P-0540-05CA Pressing off, pressing in radial seal at side of rear axle housing

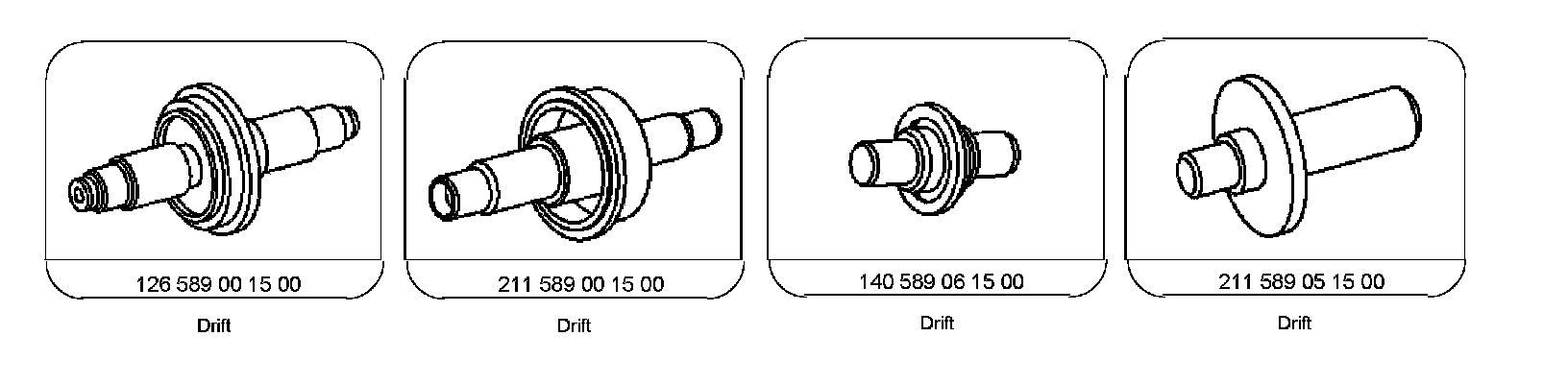

Special tool allocation
Drift 126 589 00 15 00 for rear axle differential [diameter] 185 mm

Drift 211 589 00 15 00 for rear axle differential [diameter] 187 mm, 198 mm and 200 mm
Drift 140 589 06 15 00 for rear axle differential [diameter] 210 mm

Drift 211 589 05 15 00 for rear axle differential [diameter] 215 mm

Special Tools:

Pushing off
Rear axle center assembly without side bearing cover.

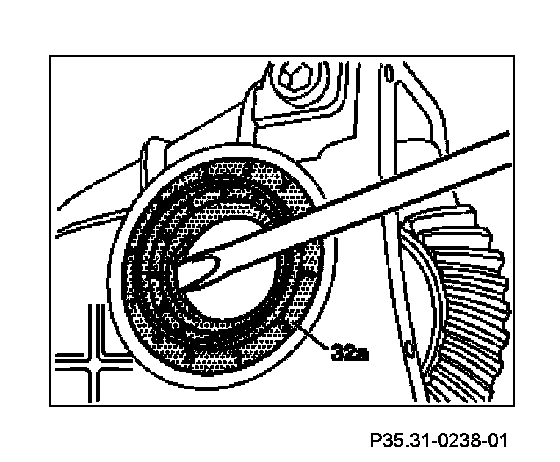

1 Use suitable screwdriver to press radial sealing ring (32a) out of housing.

Shown on rear axle differential 0 198 mm in assembly stand

Component Identification:

Pressing in
2 Coat new radial sealing ring (32a) on sealing lip with oil.

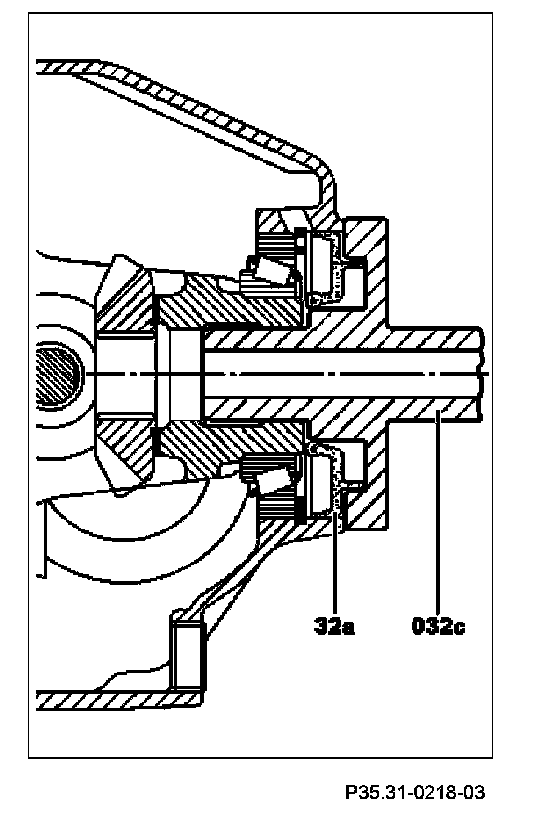

3 Press in radial sealing ring (32a) using a drift (032c).

Press radial sealing ring (32a) evenly into the housing to prevent leaks.

Shown on rear axle differential dia. 198 mm
