Clutch Master Cylinder: Service and Repair

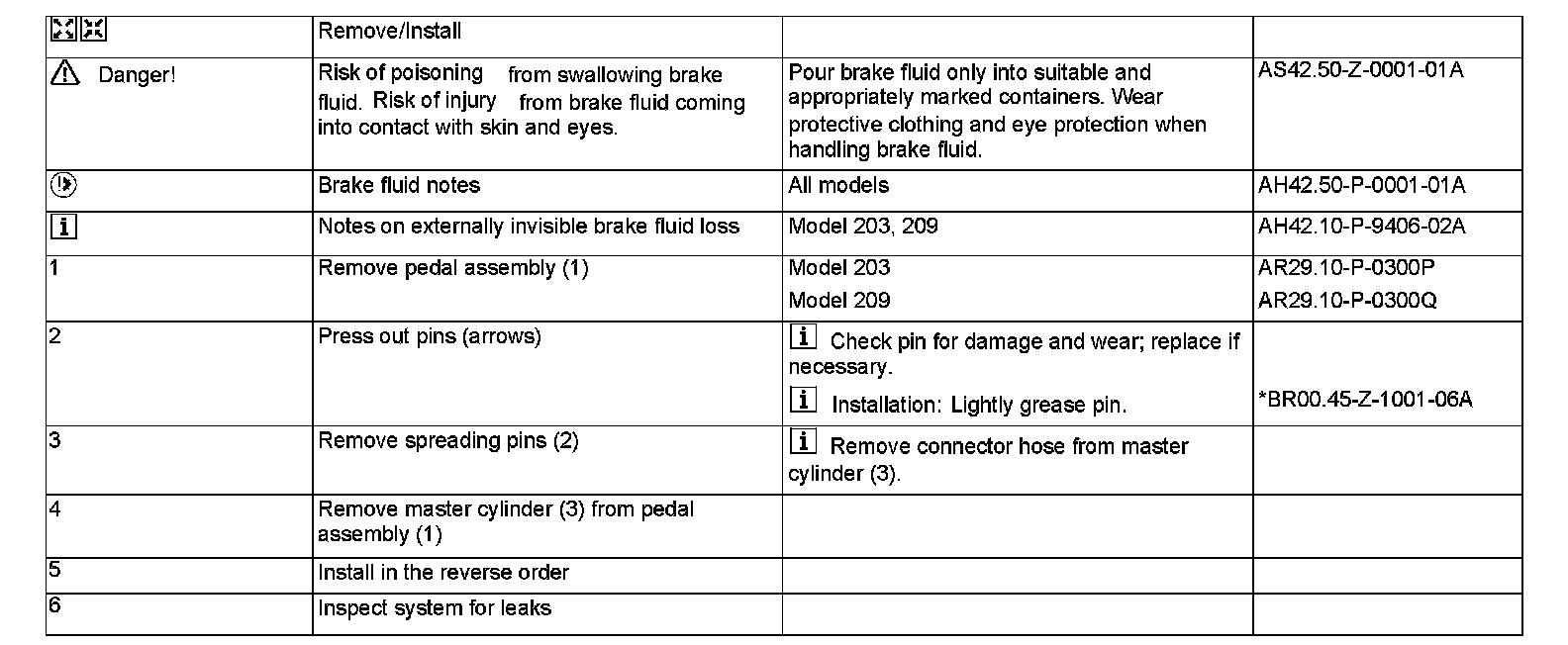

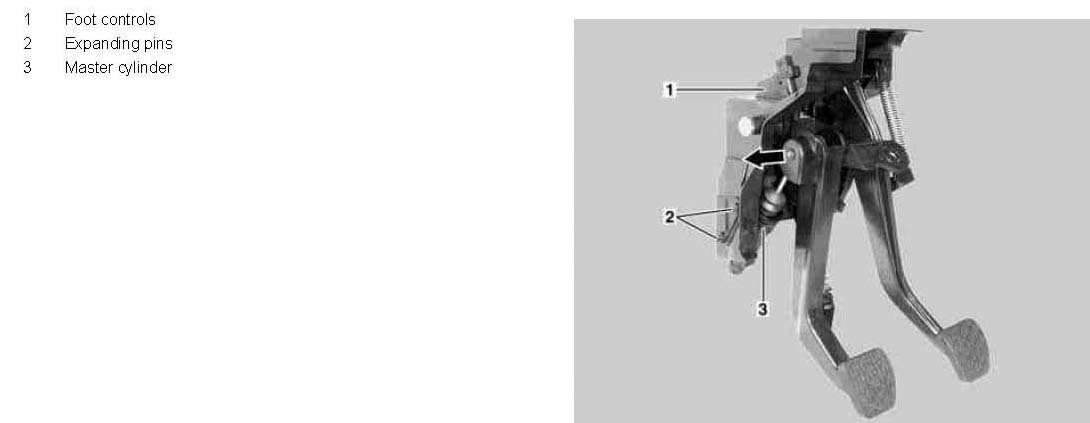

AR25.20-P-0100P Remove/Install Master Cylinder
- Transmission 716.6
