Hydraulic Accumulator: Diagrams

Hydraulic pressure reservoir: design

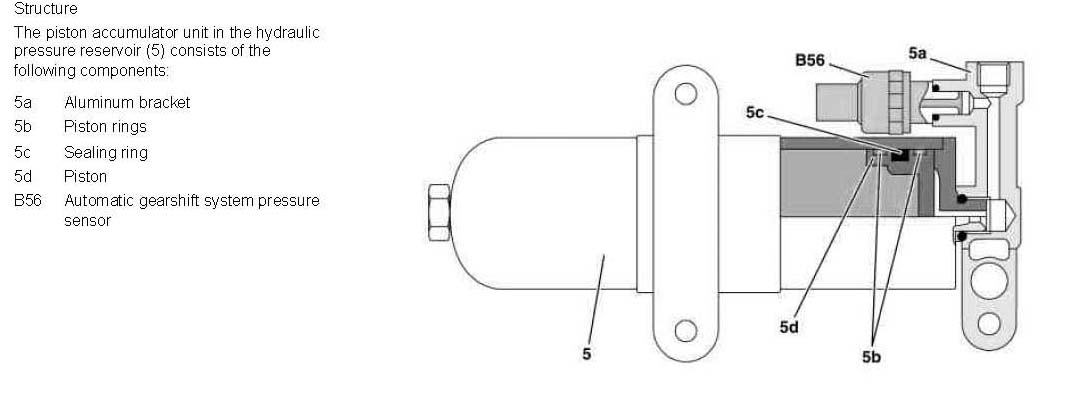

Structure
The piston accumulator unit in the hydraulic pressure reservoir (5) consists of the following components:
5a Aluminum bracket
5b Piston rings
5c Sealing ring
5d Piston
B56 Automatic gearshift system pressure sensor
