Automatically Shifted Manual Transmission/Transaxle: Service and Repair
AR26.10-P-0020E Remove/install transmission
- TRANSMISSION 716.6
- with CODE (424) Sequentronic automated manual transmission (SEQ)

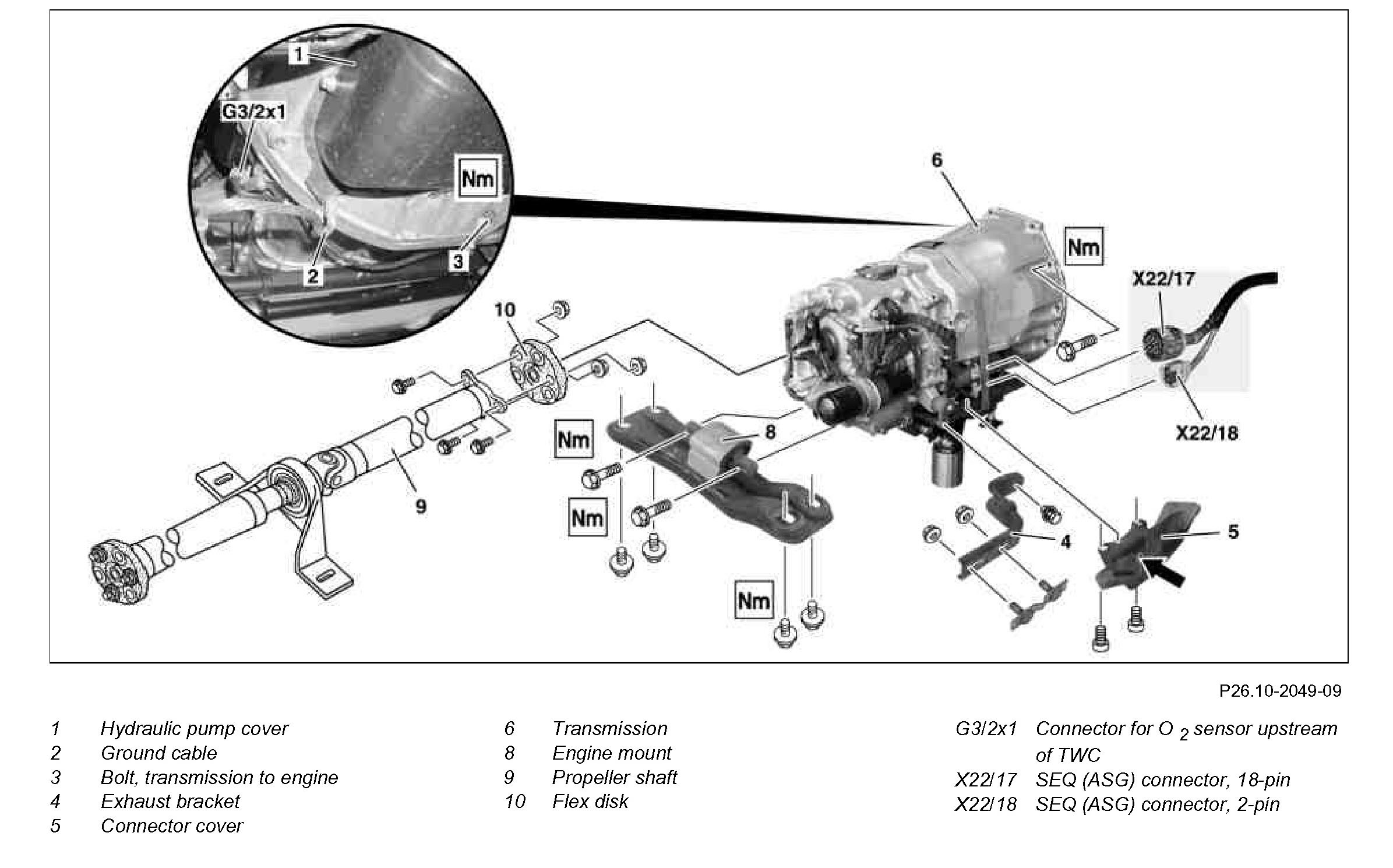

Component Identification:

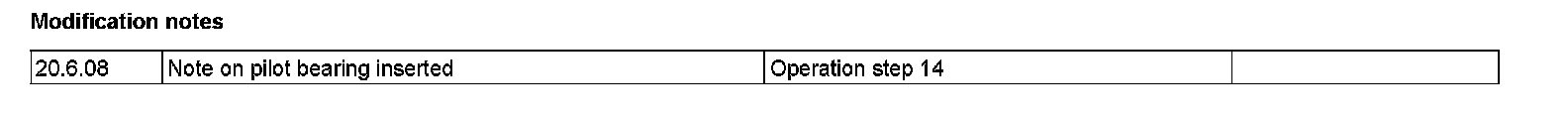

Modification notes:

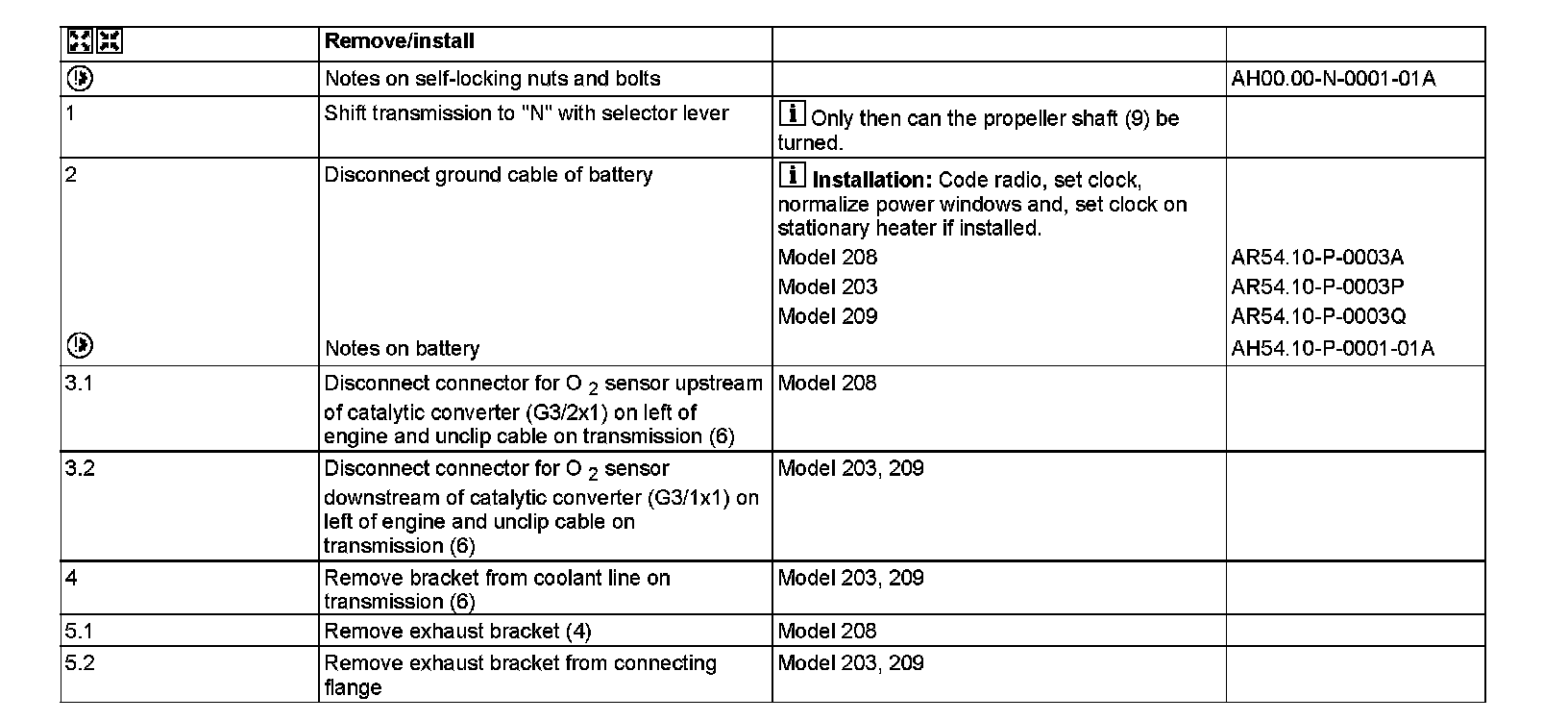

Steps 1-5.2:
Steps 6-20:

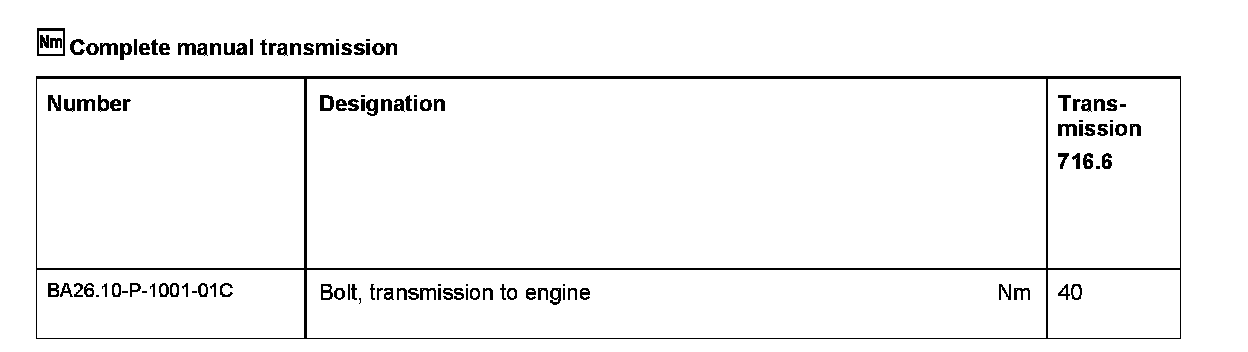

Complete manual transmission:

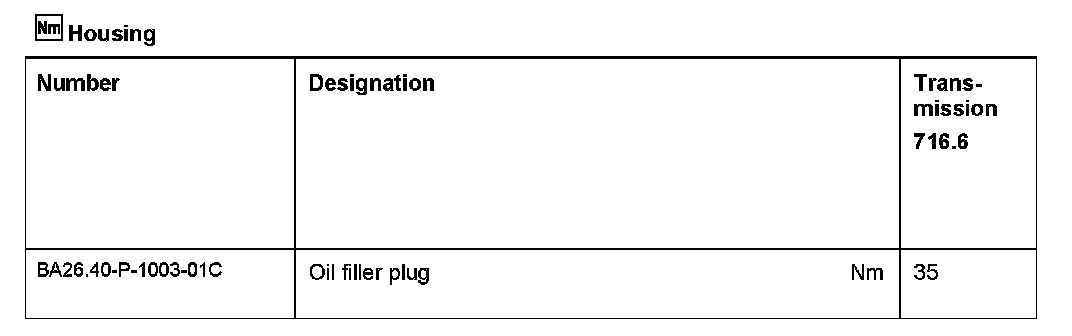

Housing:

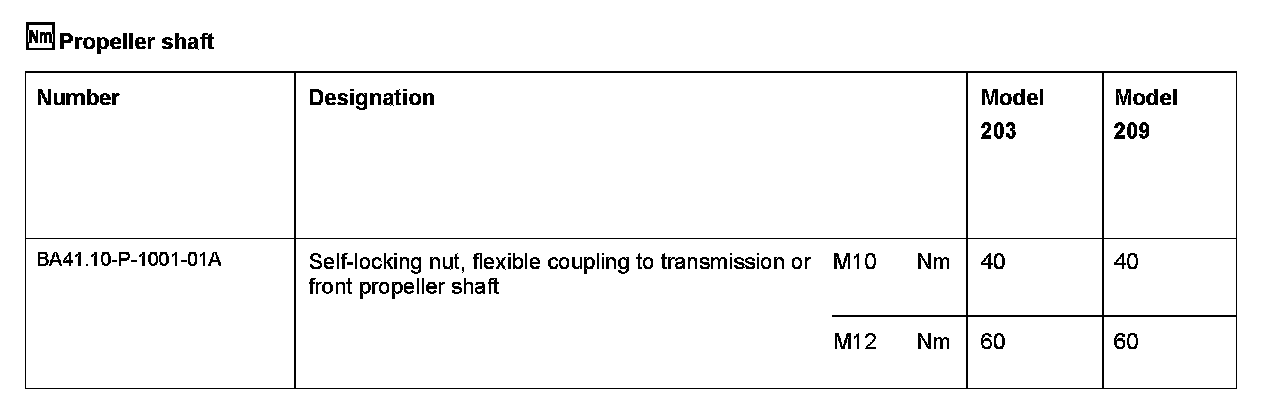

Propeller shaft:

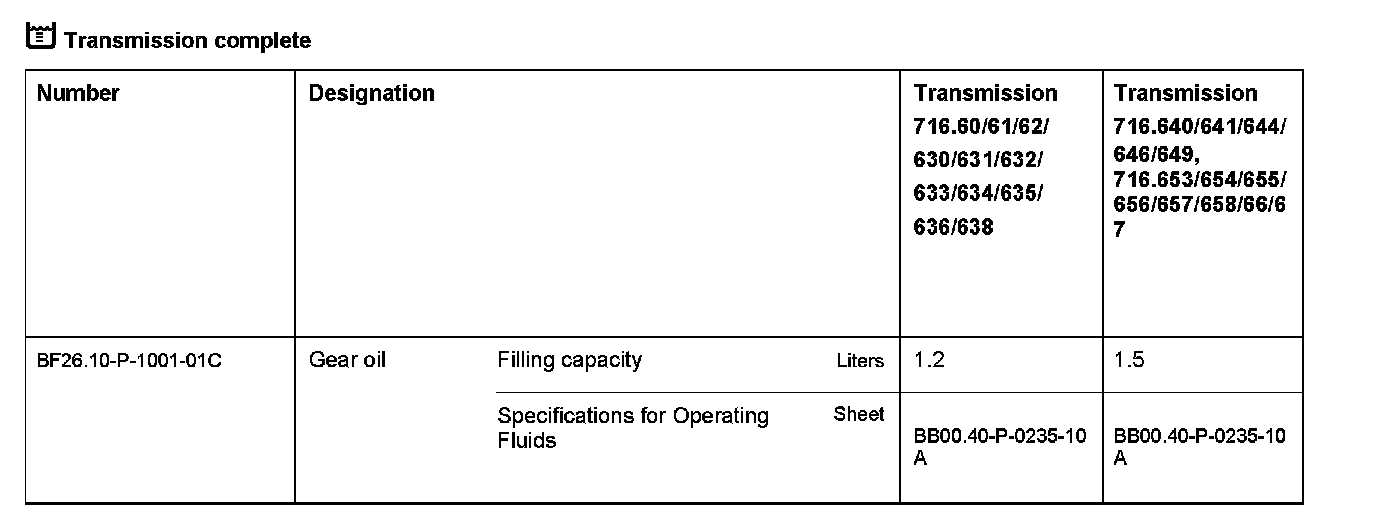

Transmission complete:
