Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Description and Operation >> GF27.60-P-5100-03P Floor Shift, Design

GF27.60-P-5100-03P Floor Shift, Design



GF27.60-P-5100-03P Floor shift, design
- TRANSMISSION 722.6
- 209.3 up to 31.5.03
- 211 up to 31.8.03

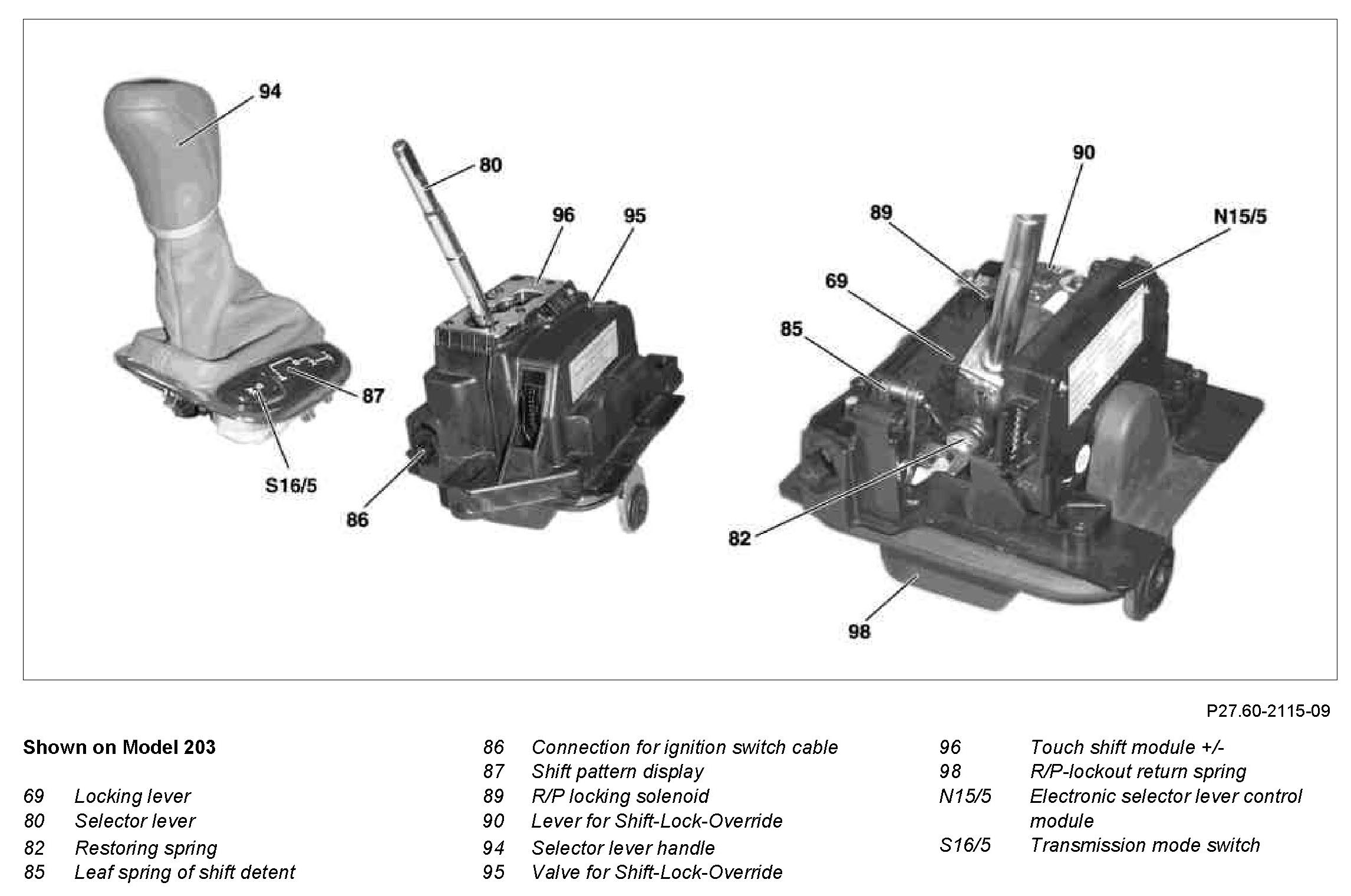

Component Identification:
