GF27.10-P-0001-04P Automatic Transmission (AT) Location of Components, Floor Shift



GF27.10-P-0001-04P Automatic transmission (AT) location of components, floor shift
- TRANSMISSION 722.6
- 209.3 up to 31.5.03
- 211 up to 31.8.03

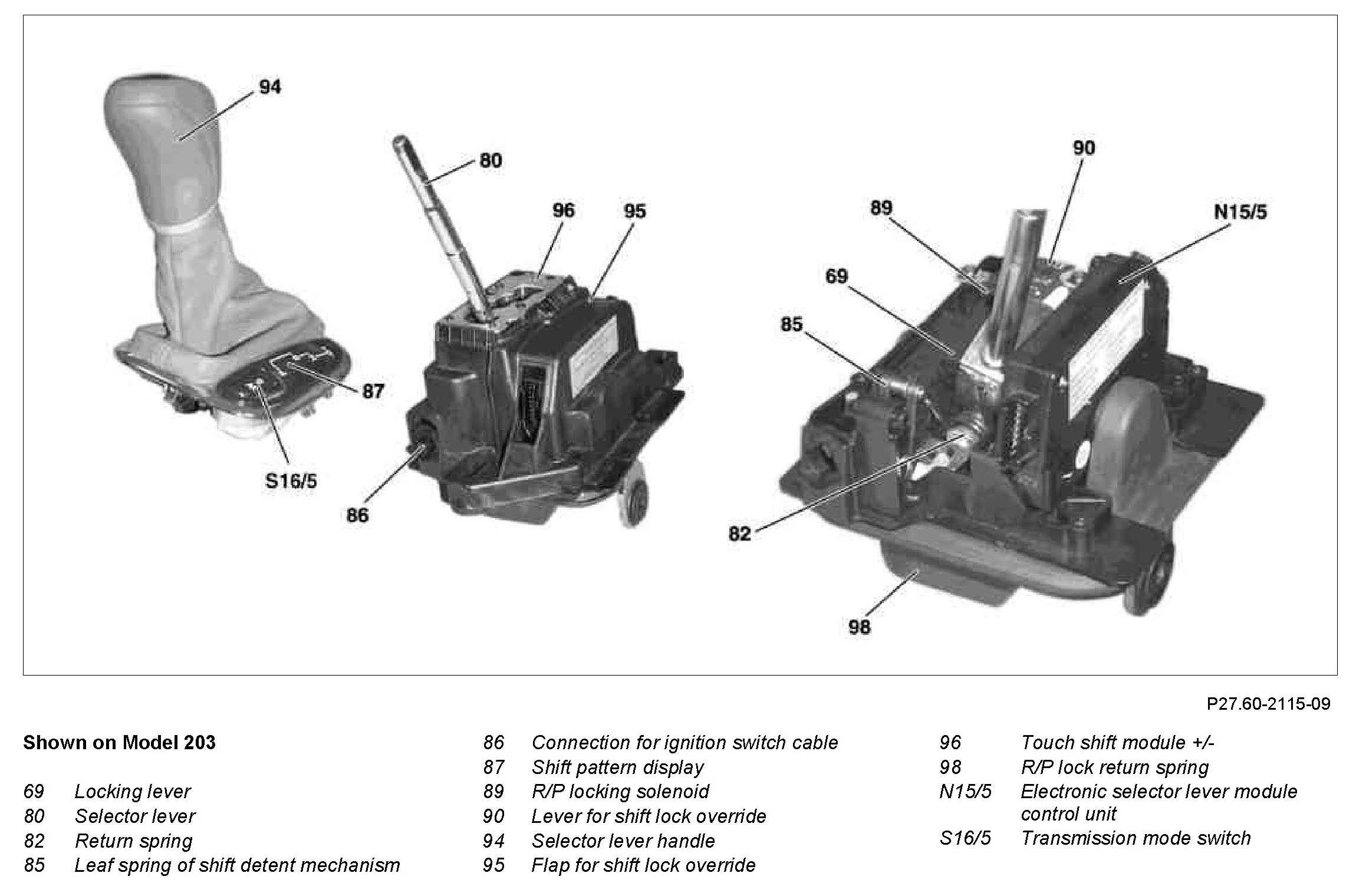

Component Identification:
