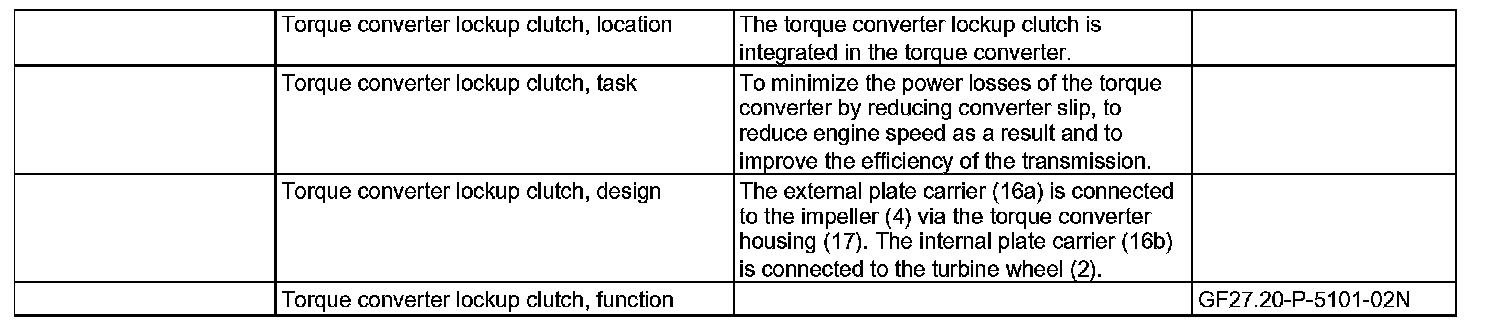

GF27.20-P-5101N Location/Task/Design/Function of Torque Converter Lockup Clutch



GF27.20-P-5101N Location/task/design/function of torque converter lockup clutch
- TRANSMISSION 722.9

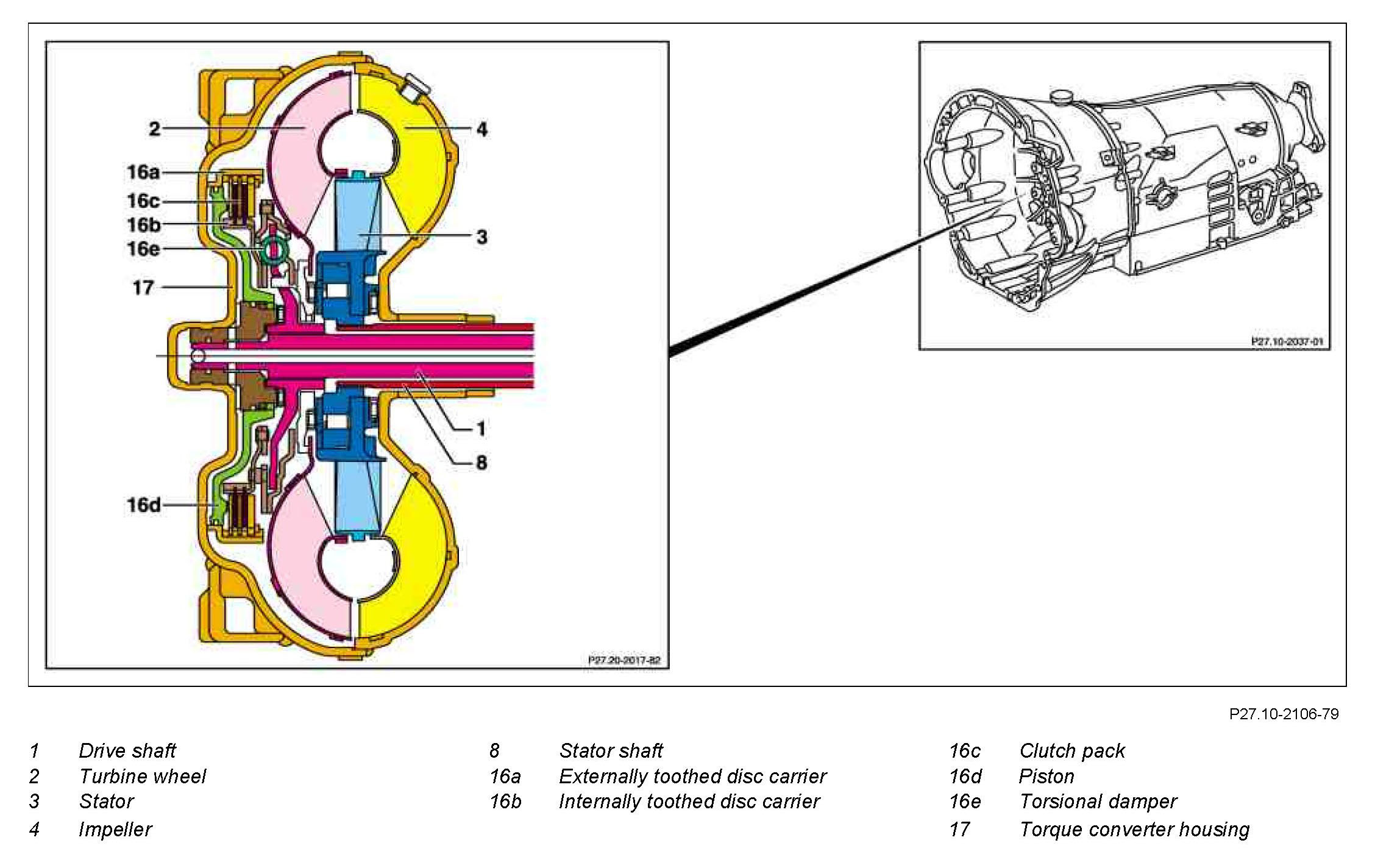

Component Identification:
