GF27.19-P-4013-02NQ VGS (Fully Integrated Transmission Control), Task

GF27.19-P-4013-02NQ VGS [fully integrated transmission control], task
- except CODE (428a) Steering wheel shift buttons

Component Identification:

Task
The fully integrated transmission control (VGS) control unit (Y3/8n4) determines the instantaneous operating condition of the vehicle and actuates all gear change sequences taking ease of shifting and driving situation into consideration.

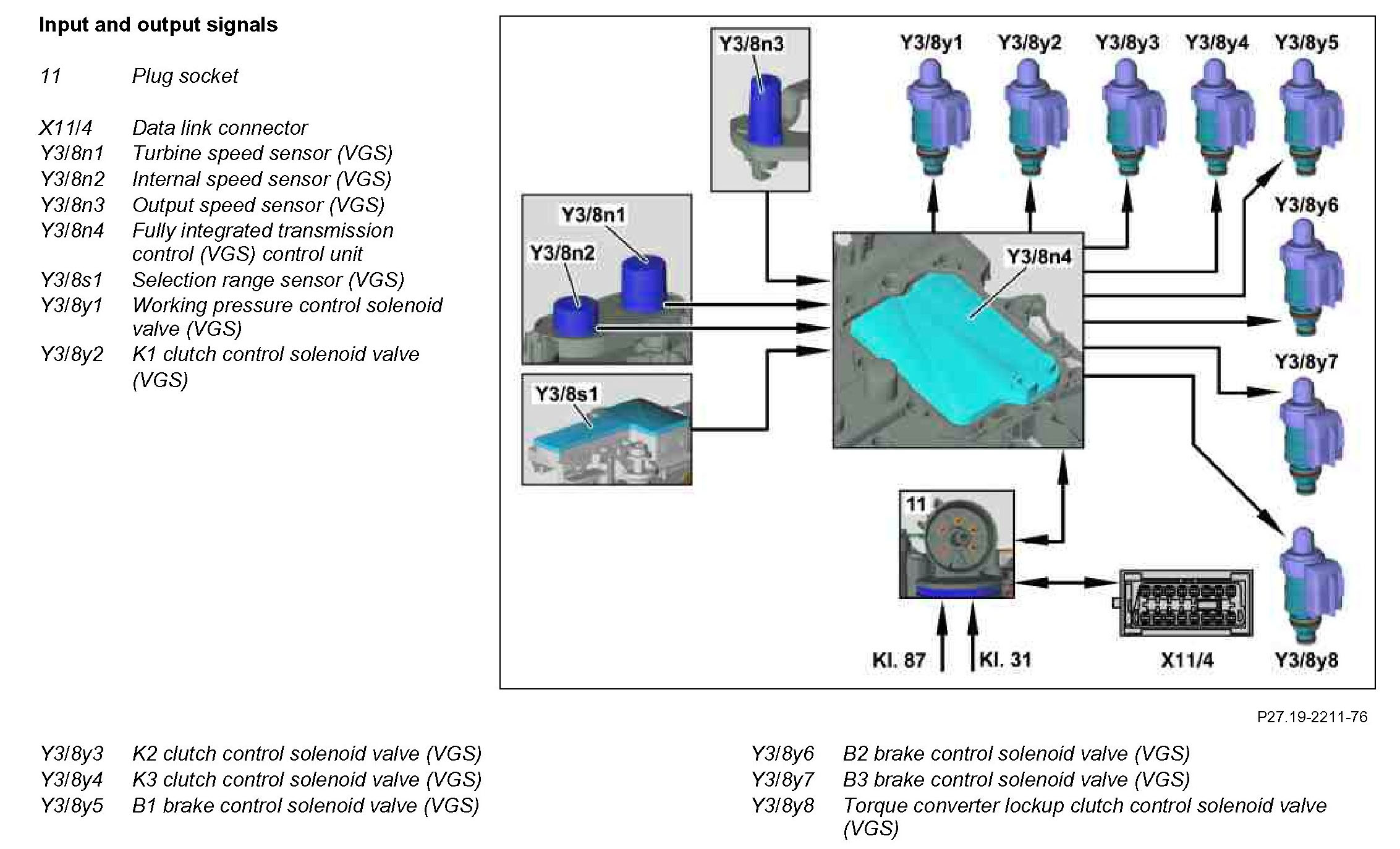

It receives operating data as transmission-internal input signals from the:
^ Selection range sensor (VGS) (Y3/8s1)
^ Transmission oil temperature sensor (VGS) (Y3/8s2), which is integrated into the fully integrated transmission control (VGS) control unit (Y3/8n4)
^ Turbine speed sensor (VGS) (Y3/8n1)
^ Internal speed sensor (VGS) (Y3/8n2)
^ Output speed sensor (VGS) (Y3/8n3)

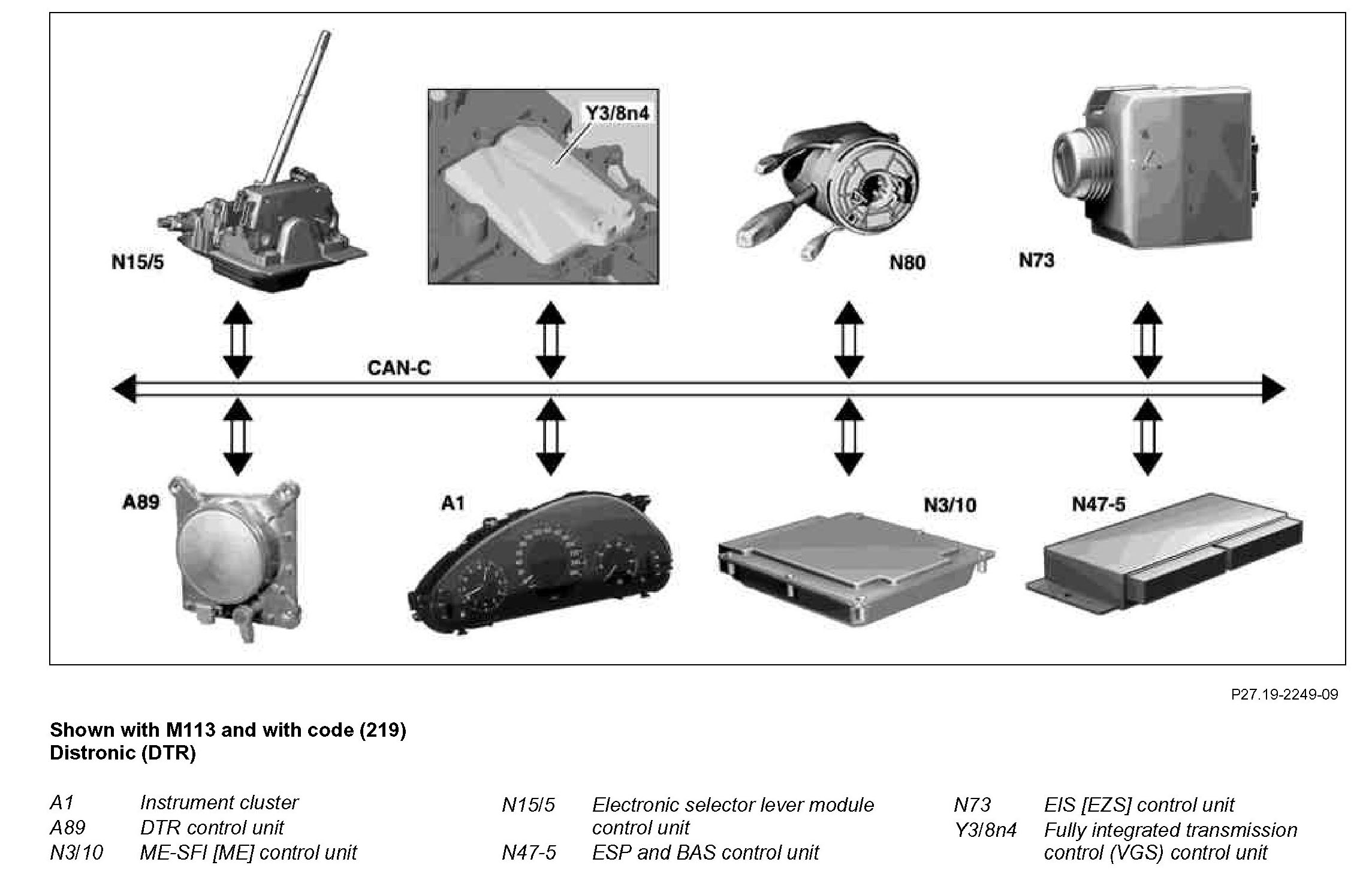

In addition there is a connection to the following via the Controller Area Network bus Class C (engine compartment) (CAN-C):
^ Instrument cluster (A1)
^ DTR control unit (A89), with code (219) Distronic (DTR)
^ CDI control unit (N3/9), with OM 642
^ ME control unit (N3/10), except OM 642
^ Electronic selector lever module control unit (N15/5)
^ ESP and BAS control unit (N47-5)
^ for EIS control unit (N73)

The fully integrated transmission control (VGS) control unit (Y3/8n4) actuates the following control solenoid valves depending on the processed input signals:
^ Working pressure control solenoid valve (VGS) (Y3/8y1), for load-dependent and gear-specific operating pressure control
^ y2 Clutch control solenoid valve K1 (VGS)Y3/8y2
^ Clutch control solenoid valve K2 (VGS)Y3/8y3
^ y2 Clutch control solenoid valve K3 (VGS)Y3/8y4
^ Brake control solenoid valve B1 (VGS) (Y3/8y5)
^ Brake control solenoid valve B2 (VGS) (Y3/8y6), which also actuates the BR multi-disk brake for reverse gear
^ Brake control solenoid valve B3 (VGS) (Y3/8y7)
^ Torque converter lockup clutch control solenoid valve (VGS)Y3/8y8

This involves the processing of the following data from other systems:

DTR control unit (A89), with code (219) Distronic (DTR)
^ Shift line displacement, brake the vehicle, the fully integrated transmission control shifts down earlier
^ Active downshift, brake the vehicle, the fully integrated transmission control shifts down earlier.

CDI control unit (N3/9), with OM 642
^ Shift line displacement, aids engine warm-up
^ Shift line displacement, dependent on load condition of diesel particulate filter (DPF), a heavily loaded DPF results in slightly lower upshift speed for full-load and kick-down upshifts
^ Specified gear, lower/upper limit, aids engine warm-up
^ Engine coolant temperature, used as substitute value in event of malfunction in transmission oil temperature sensor (VGS) (Y3/8s2)
^ Start-off in 1st gear, aids engine warm-up
^ Emergency operation of the common rail diesel injection, the pedal value is limited to approx. 20 %, the driveability of the vehicle is assured
^ Requirement torque for Electronic Stability Program (Electronic-Stability-Program) (ESP), torque reduction or torque increase taking into account directional stability and road adhesion
^ kick down
^ Pedal value
^ Request for torque converter lockup clutch "OPEN" during heating up phase of engine, increase in engine speed
^ Engine speed, for slip calculation of torque converter lockup clutch and for start of pressure calculation by fully integrated transmission control (VGS) control unit (Y3/8n4)
^ Engine-speed limitation function active, adaptations are deactivated in the fully integrated transmission control (VGS) control unit (Y3/8n4)
^ Engine torque
^ Engine oil temperature, shift limitation is canceled
^ Engine idle specified speed for the actuation of the torque converter lockup clutch

ME control unit (N3/10), except OM 642
^ Active downshift for heating up the catalytic converter (KAT)
^ Start-up in 1st gear for warming up catalytic converter
^ Shift line displacement for heating up the catalytic converter
^ Specified gear, lower/upper limit for heating up the catalytic converter
^ Emergency operation of the ME fuel injection and ignition system (motor electronics) (ME), the pedal value is limited to approx. 20 %, the driveability of the vehicle is assured
^ Engine coolant temperature, used as substitute value in event of malfunction in transmission oil temperature sensor (VGS) (Y3/8s2)
^ Engine oil temperature, shift limitation is canceled
^ Pedal value
^ kick down
^ Cruise control controls, a special shifting strategy for cruise control mode is filed in the fully integrated transmission control (VGS) control unit (Y3/8n4) (up to 31.5.05)
^ Requirement torque for Electronic Stability Program (Electronic-Stability-Program) (ESP), torque reduction or torque increase taking into account directional stability and road adhesion
^ Request for torque converter lockup clutch "Open" in the heating up phase of the catalytic converter, increase in engine speed
^ Engine idle specified speed for the actuation of the torque converter lockup clutch
^ Engine speed, for slip calculation of torque converter lockup clutch and for start of pressure calculation by fully integrated transmission control (VGS) control unit (Y3/8n4)
^ Engine-speed limitation function active, adaptations are deactivated in the fully integrated transmission control (VGS) control unit (Y3/8n4)
^ Engine torque

Electronic selector lever module control unit (N15/5)
^ Selector lever position
^ Transmission mode switch (S16/5)

ESP and BAS control unit (N47-5)
^ Signal from BAS release switch (A7/7s1), change of shift strategy, brake the vehicle, the fully integrated transmission control (VGS) shifts down earlier
^ Adjusted brake torque, change of shift strategy, brake the vehicle, the fully integrated transmission control shifts down earlier
^ Wheel speeds and direction of rotation, substitute values in event of malfunction of output speed sensor (VGS) (Y3/8n3)
^ ESP request shift into "N" (neutral), power flow interruption, transmission/rear axle
^ Vehicle lateral acceleration at center of gravity, adaptation of shift strategy, detection of dynamic driving style
^ Cruise control controls, a special shifting strategy for cruise control mode is filed in the fully integrated transmission control (VGS) control unit (Y3/8n4) (as of 1.6.05)

EIS control unit (N73)
^ Refrigerant compressor (A9) ON
^ circuit 50, influencing fault storage
^ Torque requirement of refrigerant compressor (A9)

The following information is output to other systems:

Instrument cluster (A1)
^ Selector lever position for gear indicator (A1p12)
^ Program selection on transmission mode switch (S16/5) for transmission mode display (A1p16)

DTR control unit (A89), with code (219) Distronic (DTR)
^ Transmission variant, recognition of basic variants, difference in gear ratios
^ Actual gear engaged/target gear, engaged gear, gear to be shifted can be shown via STAR DIAGNOSIS
^ Wheel torque factor, overall gear ratio

CDI control unit (N3/9), with OM 642
^ Engine torque requests, engine intervention when shifting
^ Starting release in selector lever position "P", "N"
^ Transmission variant, recognition of basic variants, difference in gear ratios
^ Actual gear engaged/target gear, i.e. engaged gear, gear to be shifted, can be shown via STAR DIAGNOSIS
^ Status of torque converter lockup clutch
^ Emergency-running mode for fully integrated transmission control

ME control unit (N3/10), except OM 642
^ Engine torque requests, engine intervention when shifting
^ Emergency-running mode for fully integrated transmission control
^ Starting release in selector lever position "P", "N"
^ Transmission variant, recognition of basic variants, difference in gear ratios
^ Actual gear engaged/target gear, i.e. engaged gear, gear to be shifted, can be shown via STAR DIAGNOSIS
^ Status of torque converter lockup clutch

ESP and BAS control unit (N47-5)
^ Wheel torque factor, overall gear ratio
^ Transmission variant, recognition of basic variants, difference in gear ratios
^ Actual gear engaged/target gear, i.e. engaged gear, gear to be shifted, can be shown via STAR DIAGNOSIS

EIS control unit (N73)
^ Selector lever position for the actuation of the backup lamp function
^ Diagnosis
