GF27.10-P-0001-04P Automatic Transmission (AT) Location of Components, Floor Shift



GF27.10-P-0001-04P Automatic transmission (AT) location of components, floor shift
- Transmission 722.6

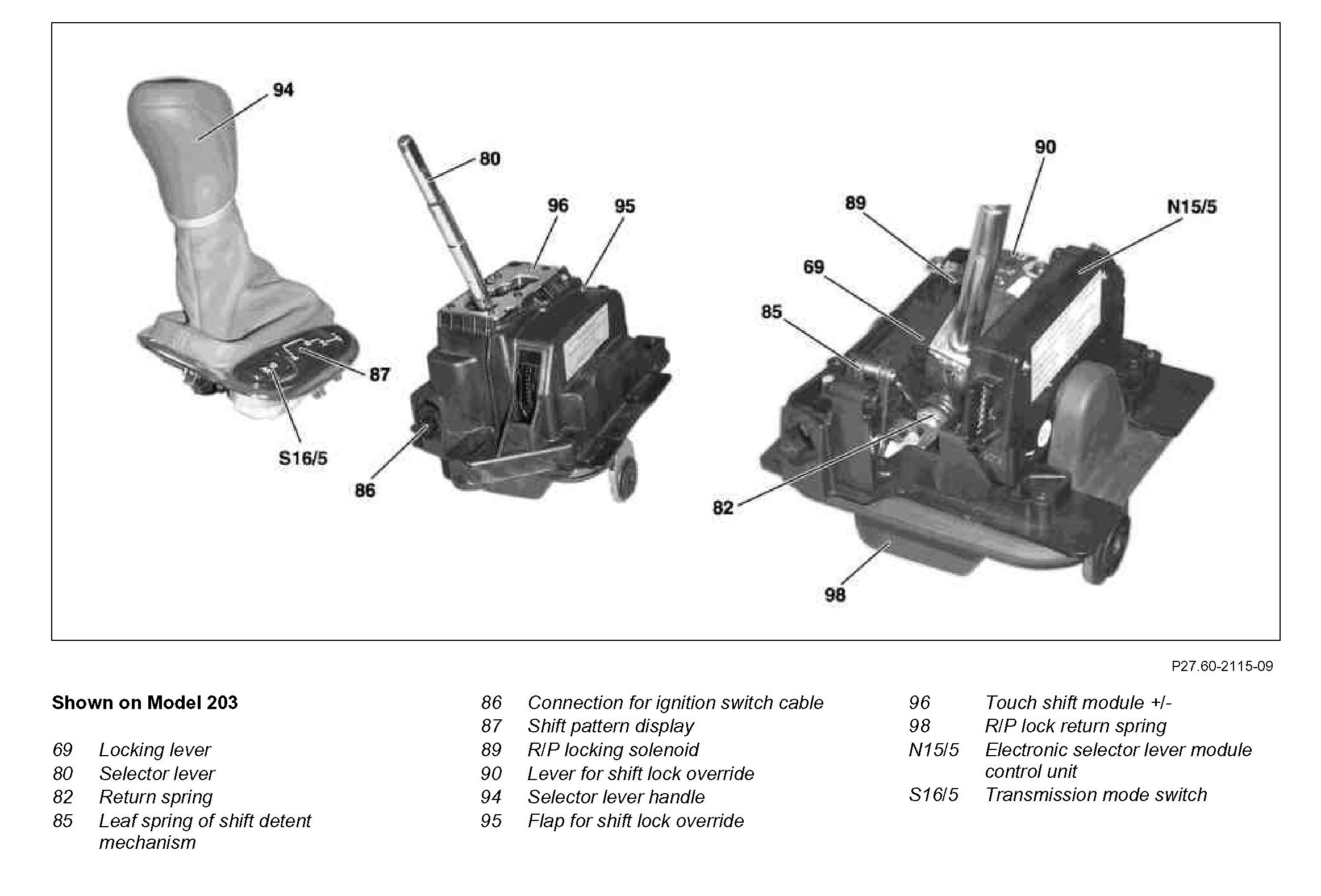

Component Identification:
