AR35.20-P-0119QBS Remove/Install Spring Control Arm



AR35.20-P-0119QBS Remove/install spring control arm
- with CODE (P98) Black Series

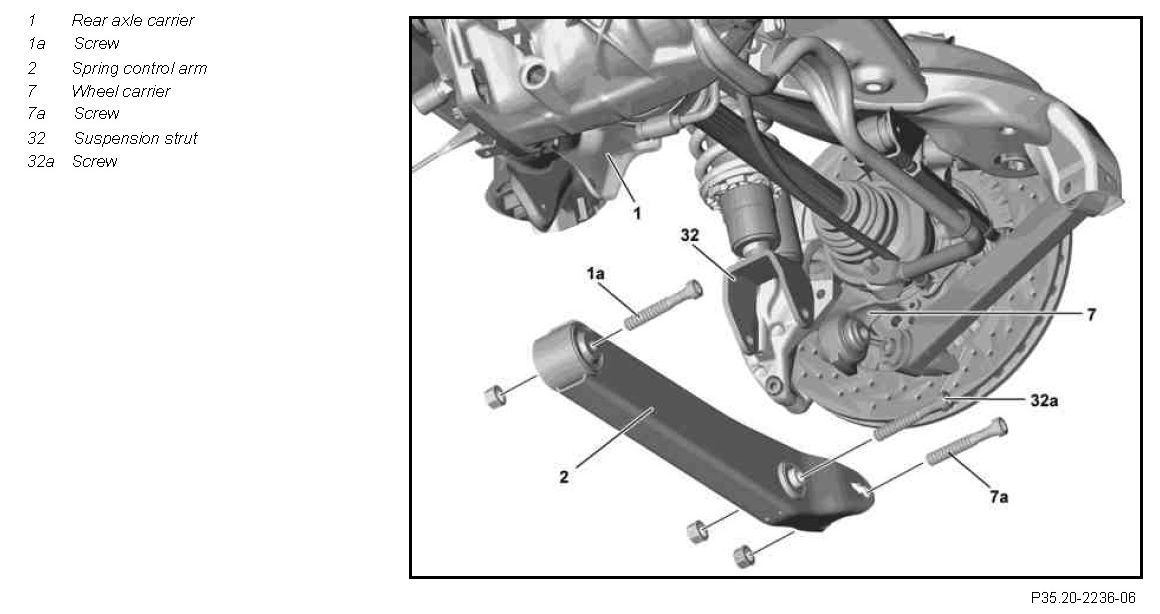

Component Identification:

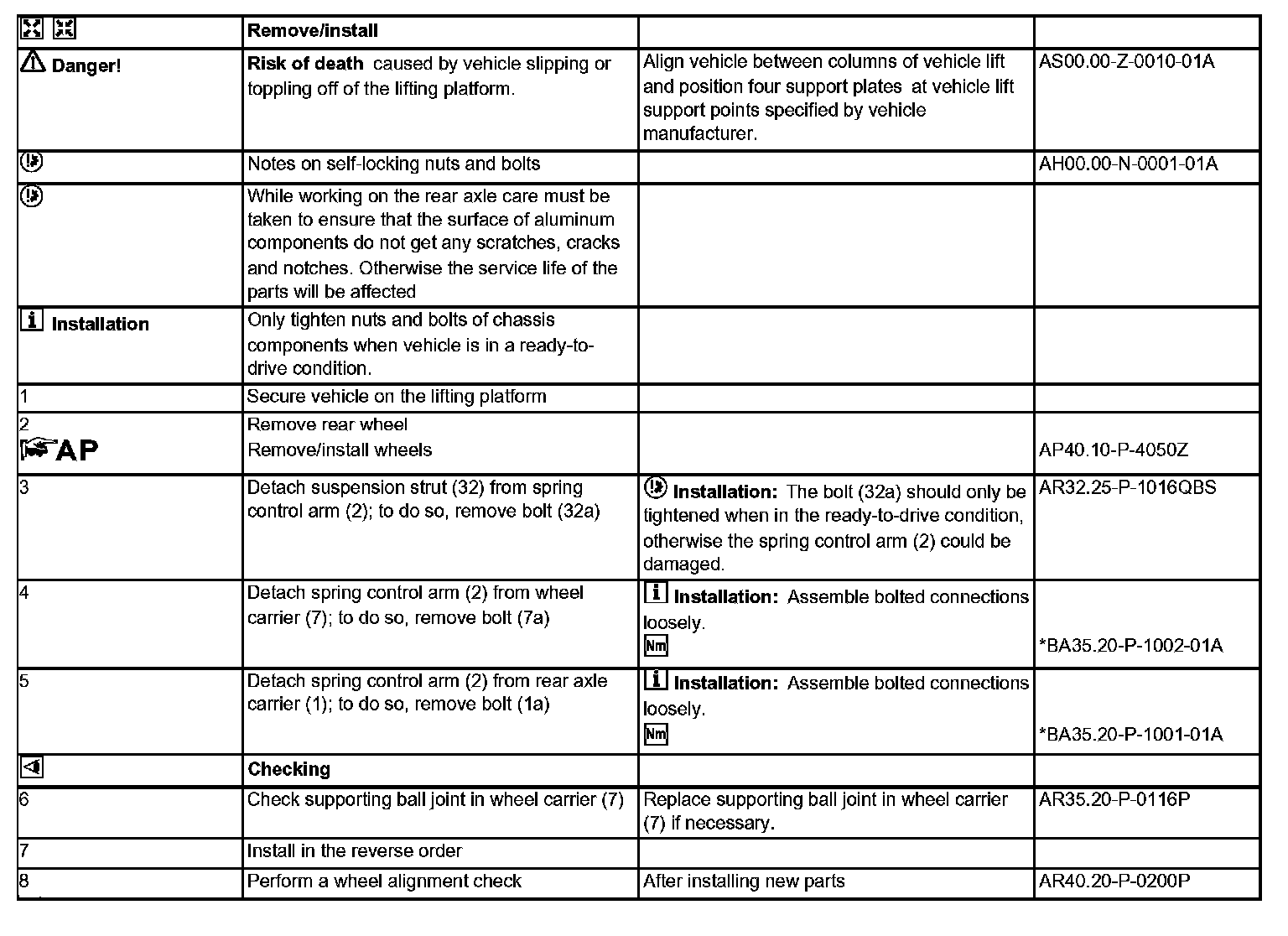

Remove/install Steps 1-8:




Spring control arm:
