Setting Play Between Thrust Element and Steering Rack [AR46.2-P-0601P]
Setting Play Between Thrust Element and Steering Rack [AR46.2-P-0601P]

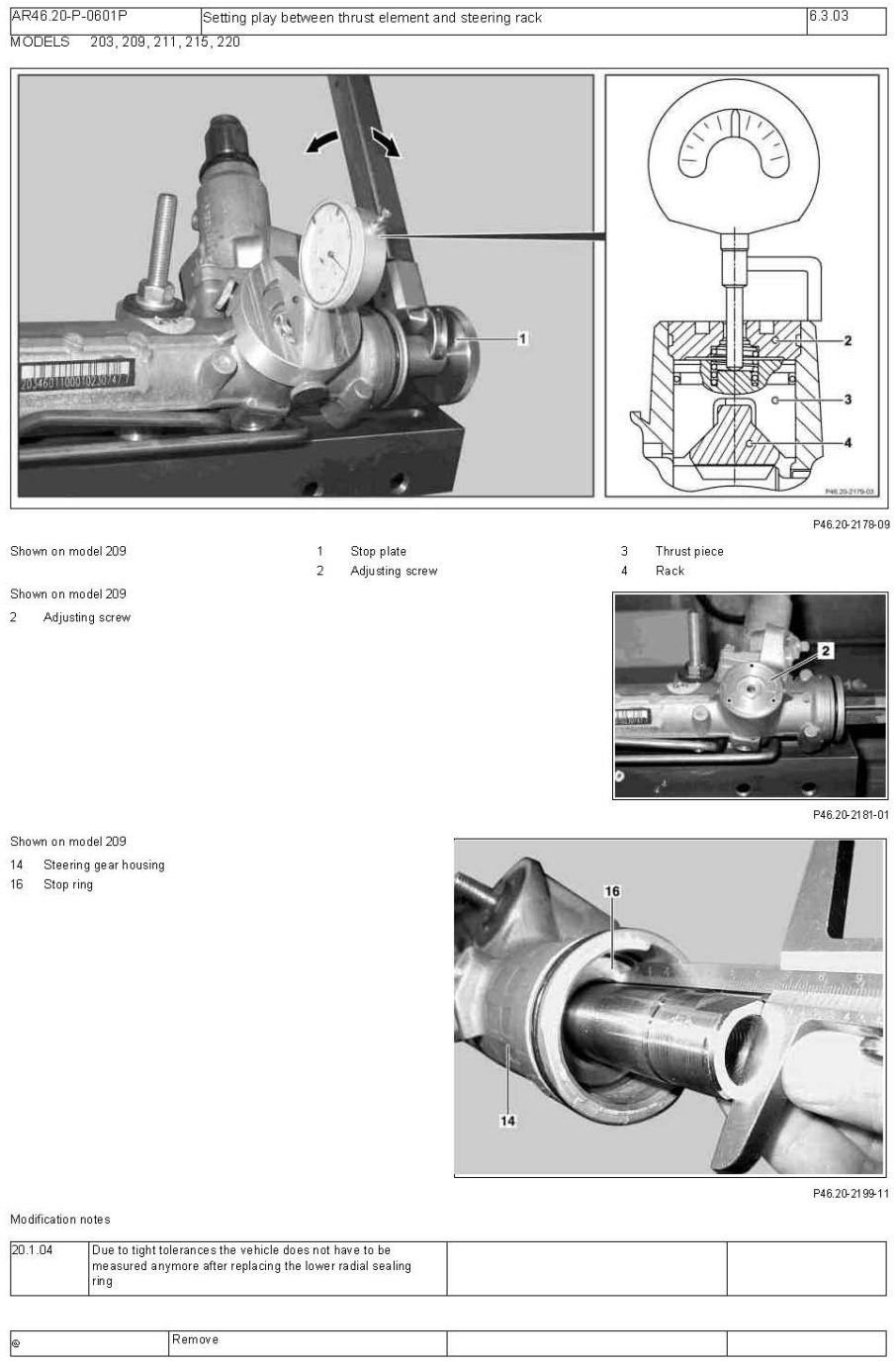

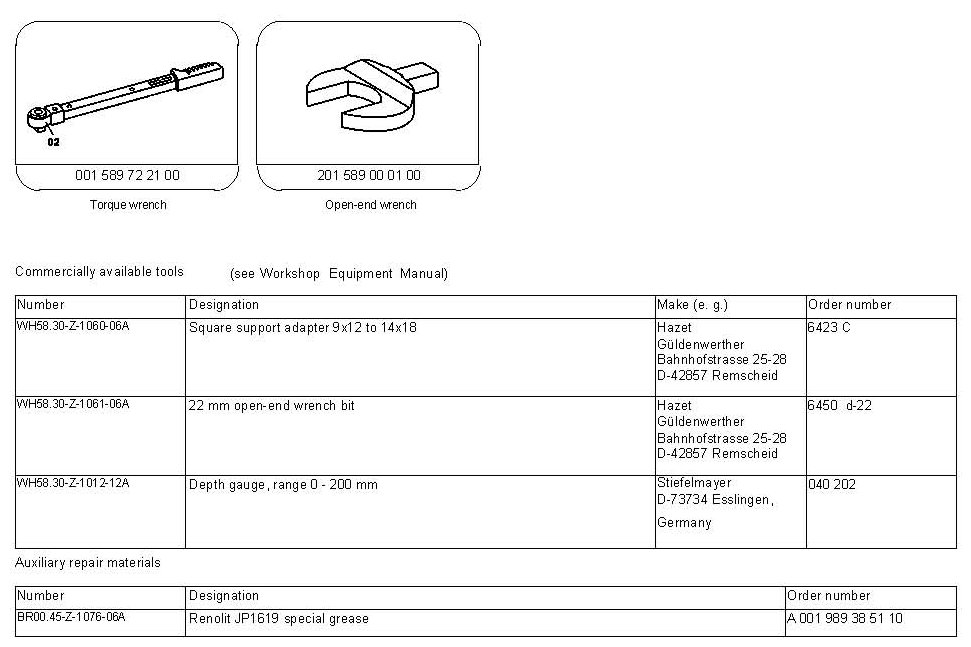

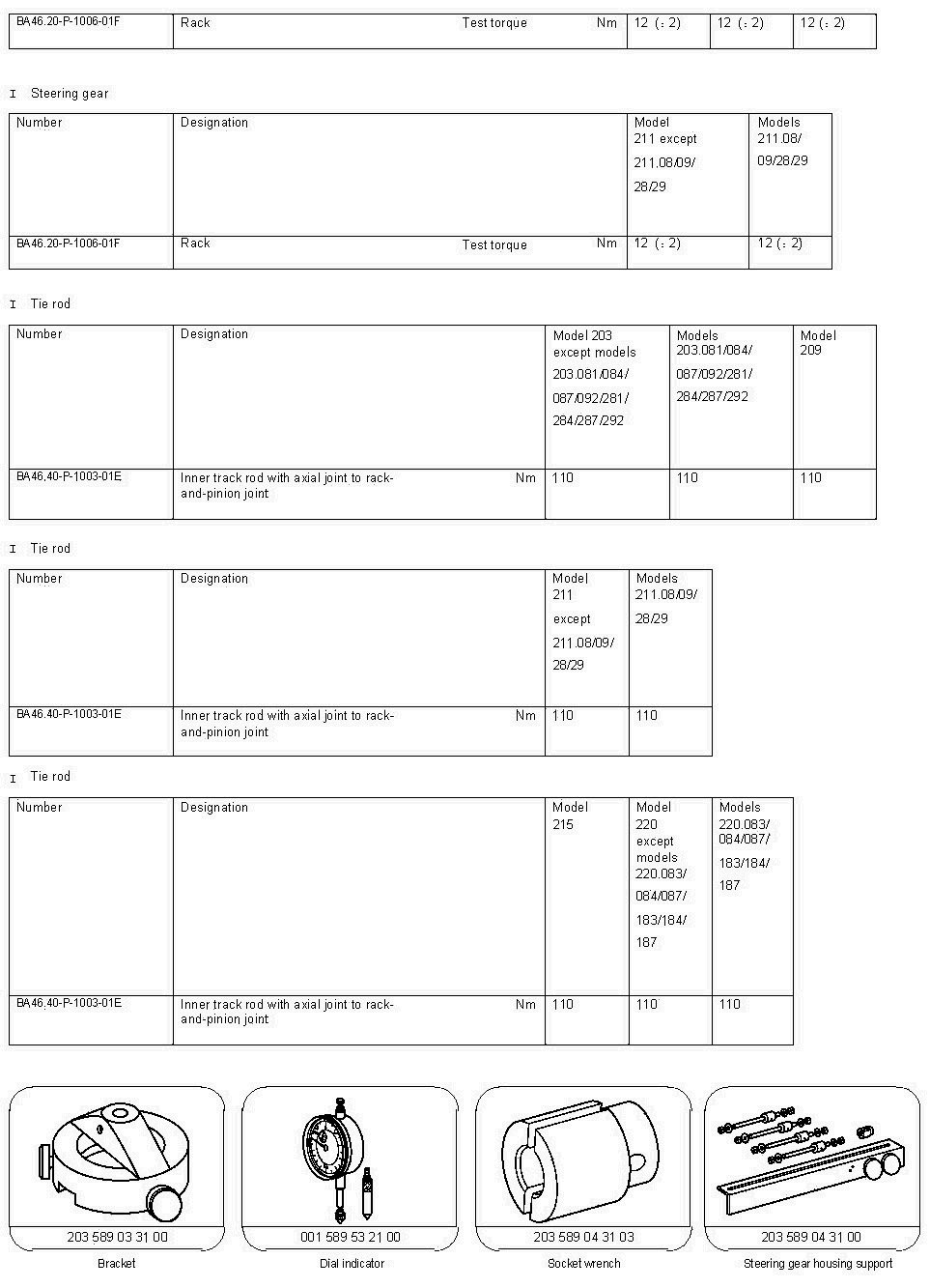

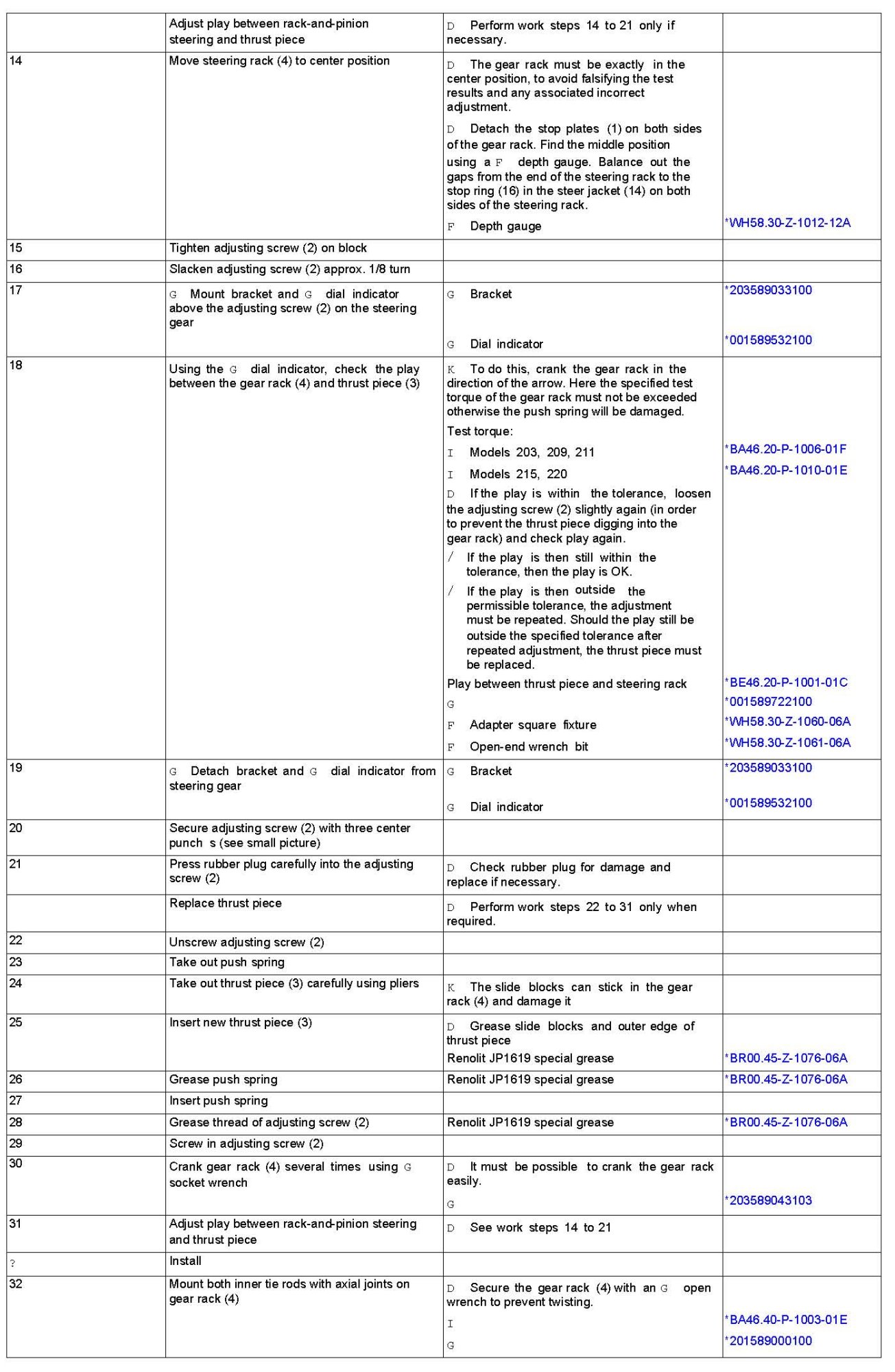

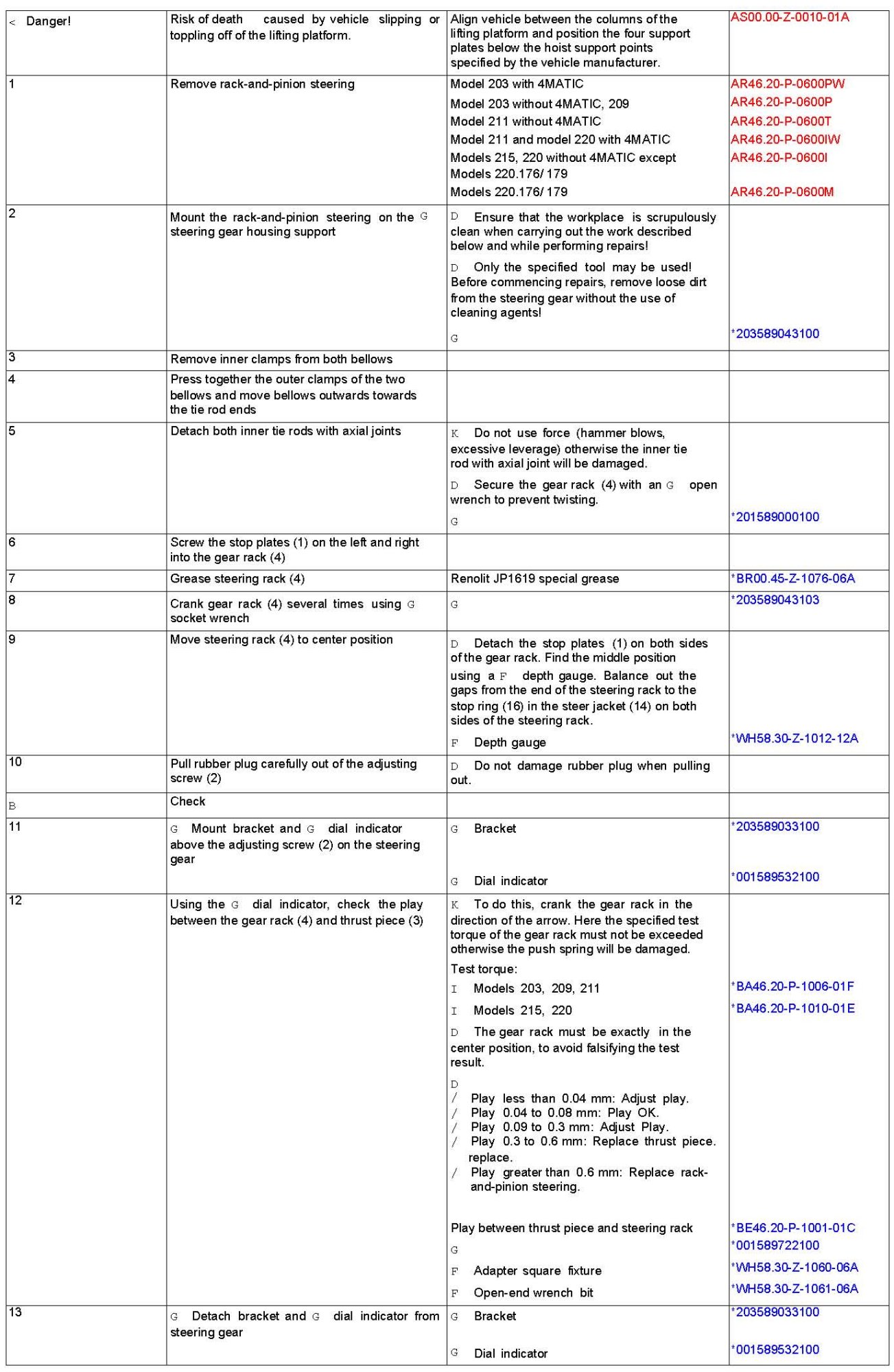

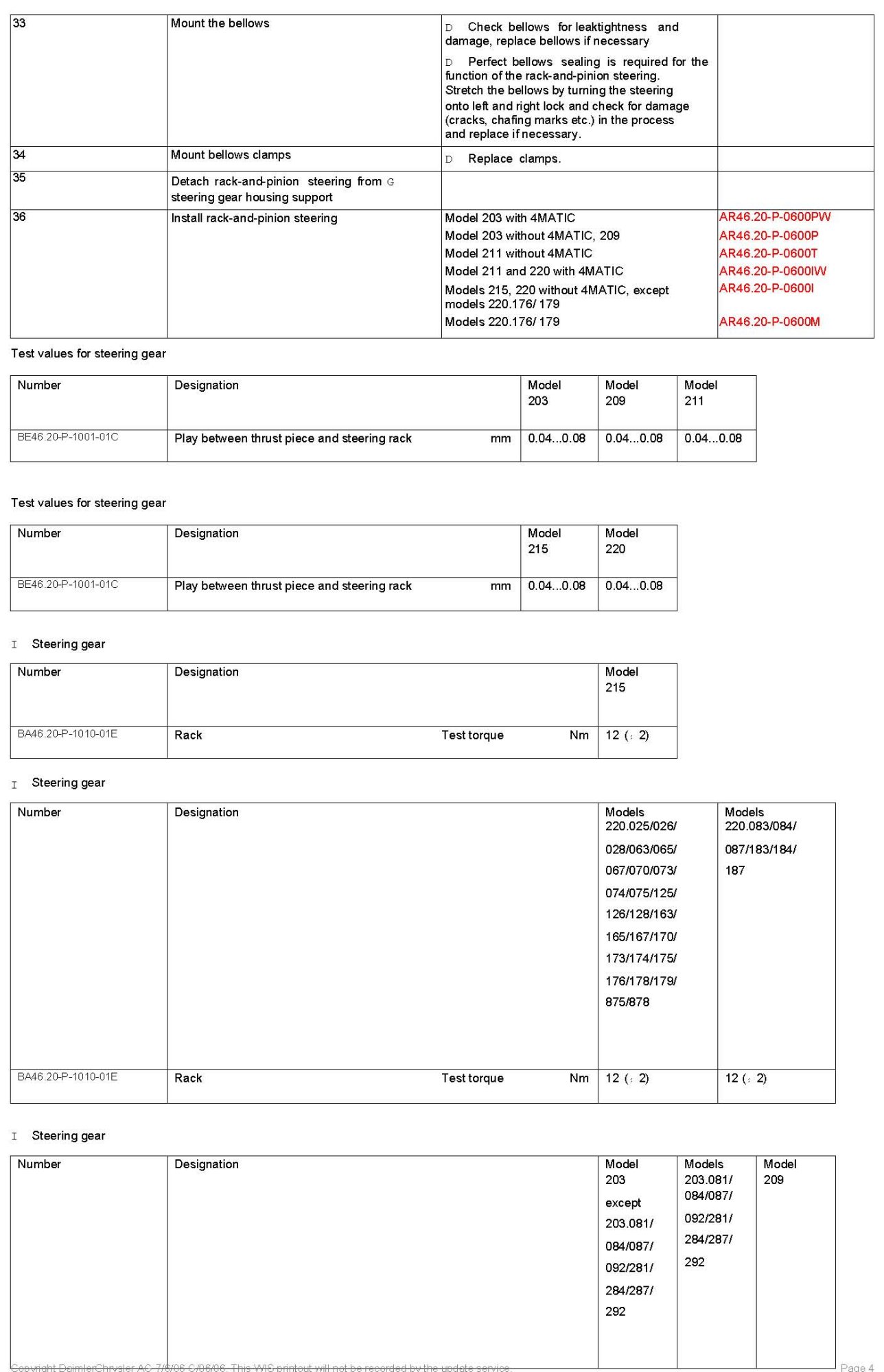

Setting play between thrust element and steering rack
