Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> Leaks at the Internal Steering Lines on Control Head Connection and/or Steering Gear Housing Connection [AF46.20-P-4045AU]

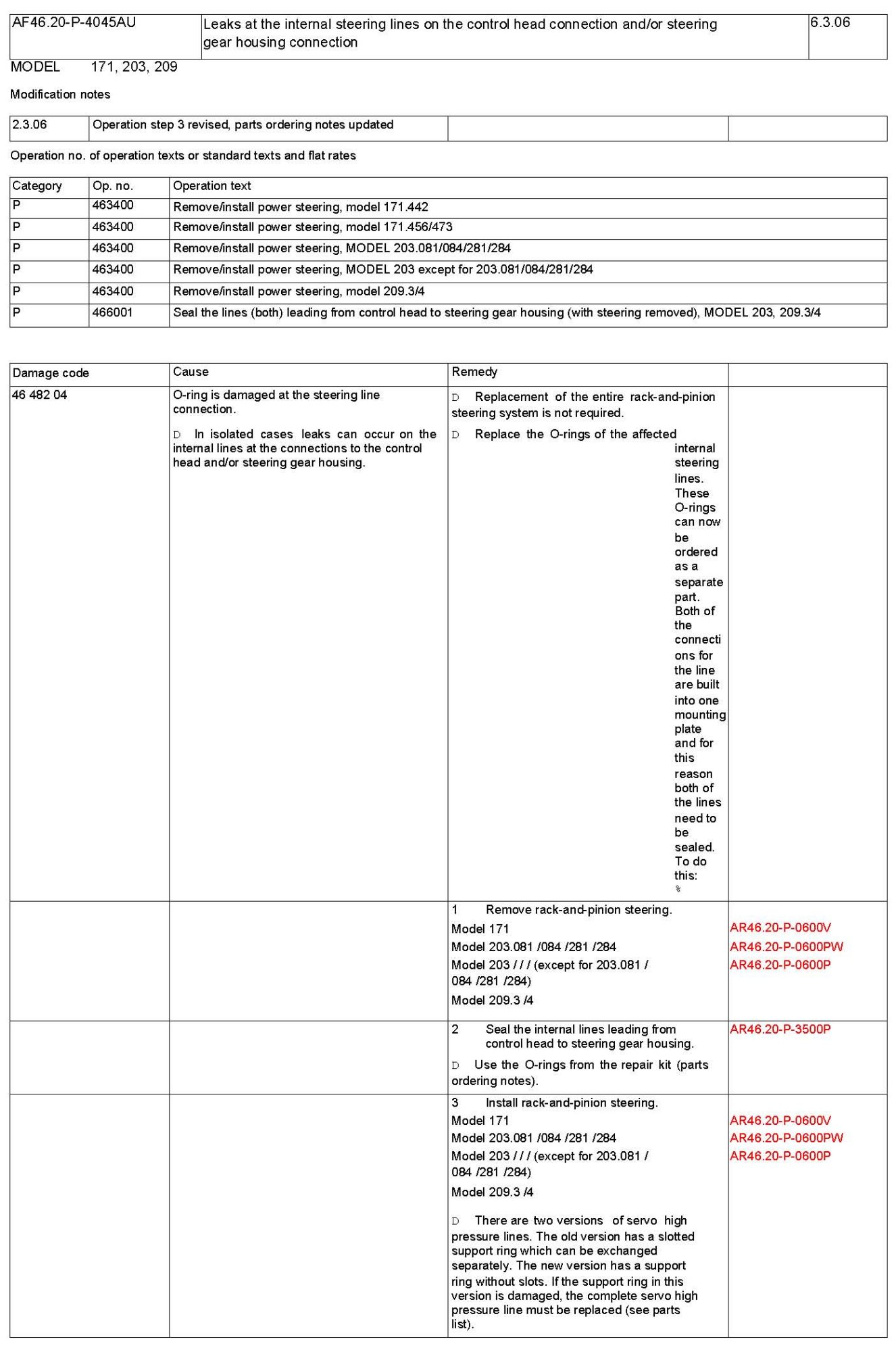

Leaks at the Internal Steering Lines on Control Head Connection and/or Steering Gear Housing Connection [AF46.20-P-4045AU]


Leaks at the internal steering lines on control head connection
