Removal and Replacement

AR46.20-P-0003Q Replace Bottom Radial Shaft Sealing Ring On Control Head
MODEL 203, 209
- except CODE (213) Speed-sensitive power steering
MODEL 204.0 /2 /3 without 4MATIC, with hydraulic power steering
MODEL 207 without 4MATIC, with hydraulic power steering
MODEL 212 without 4MATIC, with hydraulic power steering
MODEL 215, 220
MODEL 164, 251

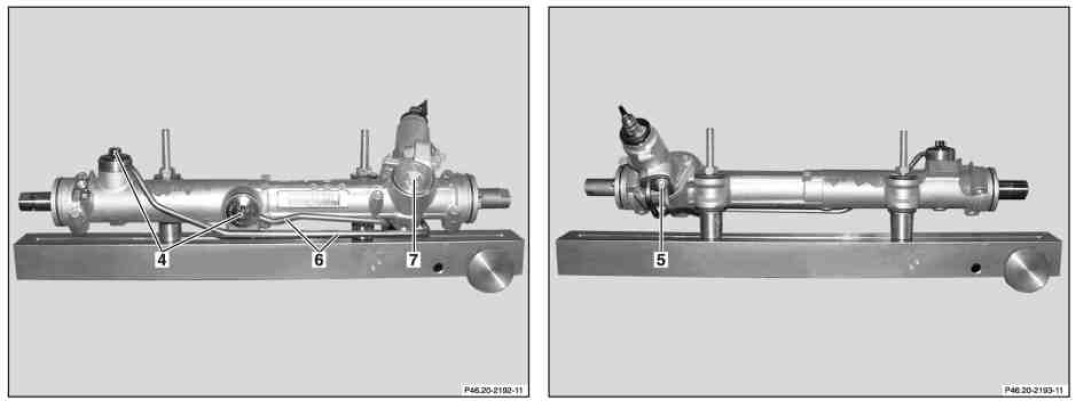

Illustrated on model 209

1 Clamps
2 Bellows
3 Inner tie rods with axial joint





Shown on model 209

4 Bolts
5 Screw
6 Oil lines
7 Adjustment screw

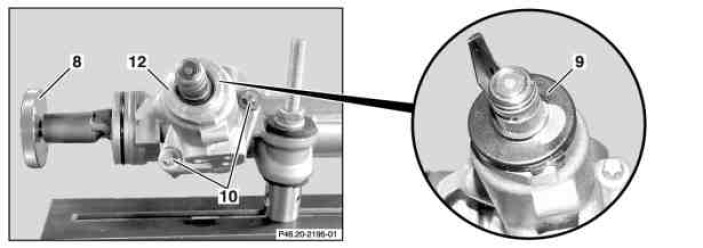

Illustrated on model 209

8 Stop plate
9 Cap
10 Bolts
12 Control head

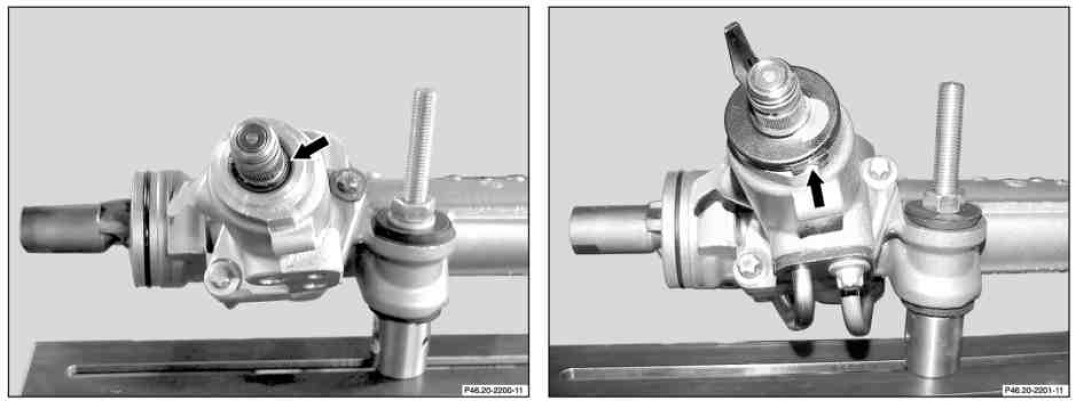

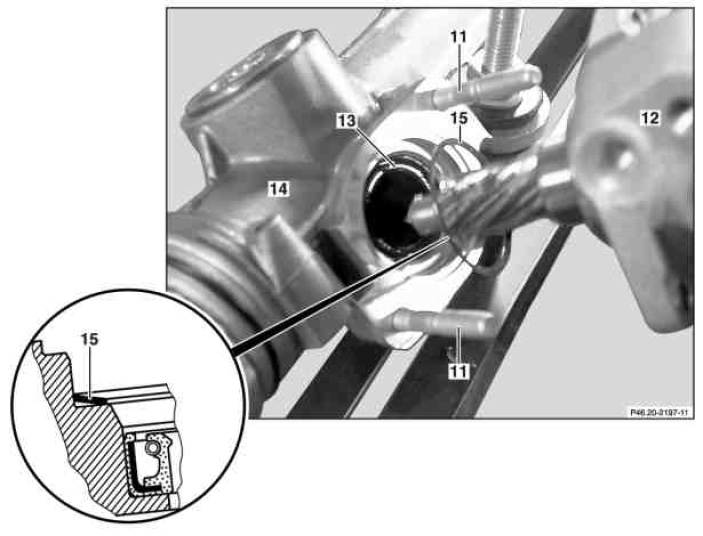

Illustrated on model 209

11 Stud bolt
12 Control head
13 Radial shaft seal
14 Steering gear housing
15 Disk spring








Illustrated on model 209

14 Steering gear housing
16 Stop ring


























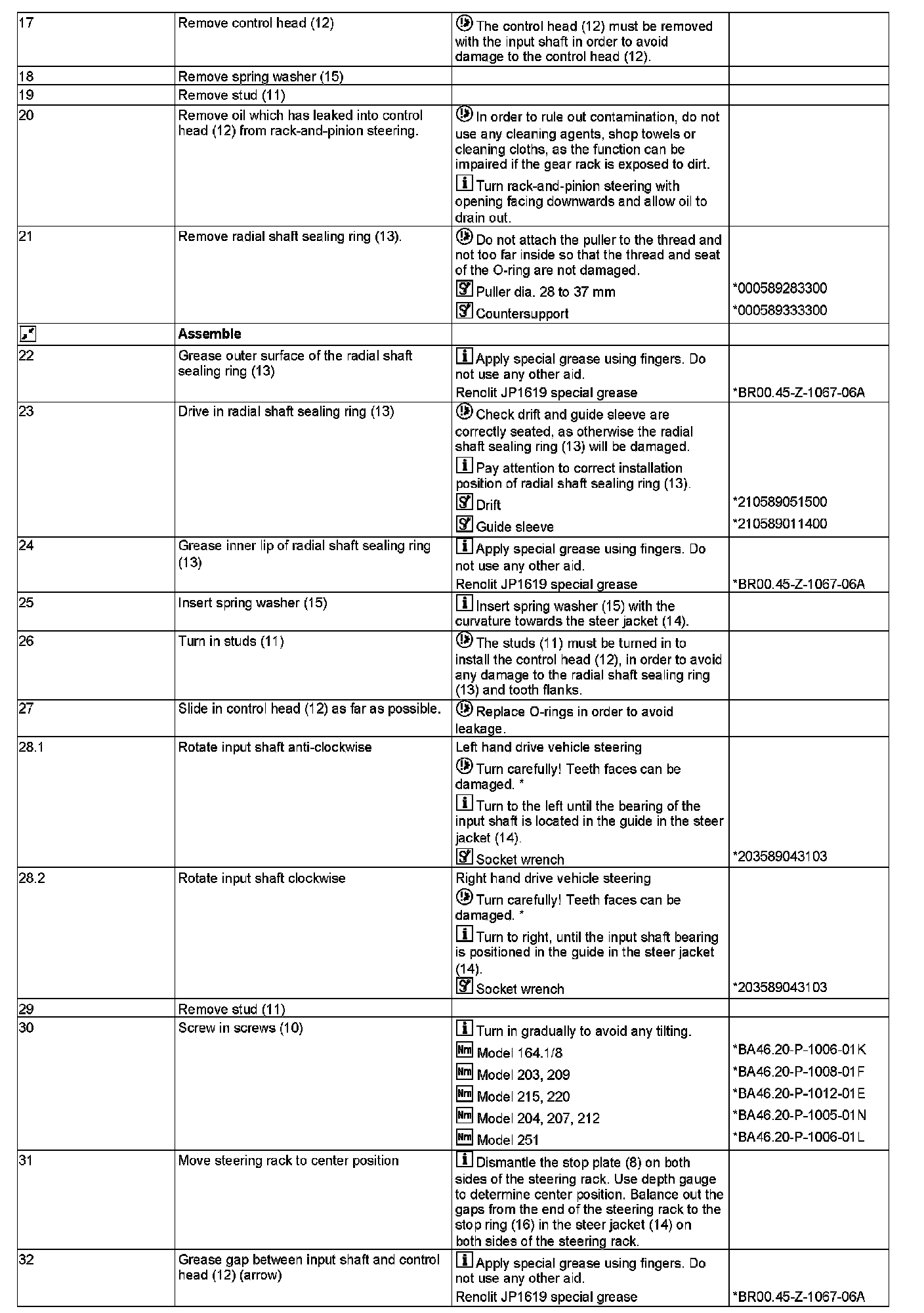

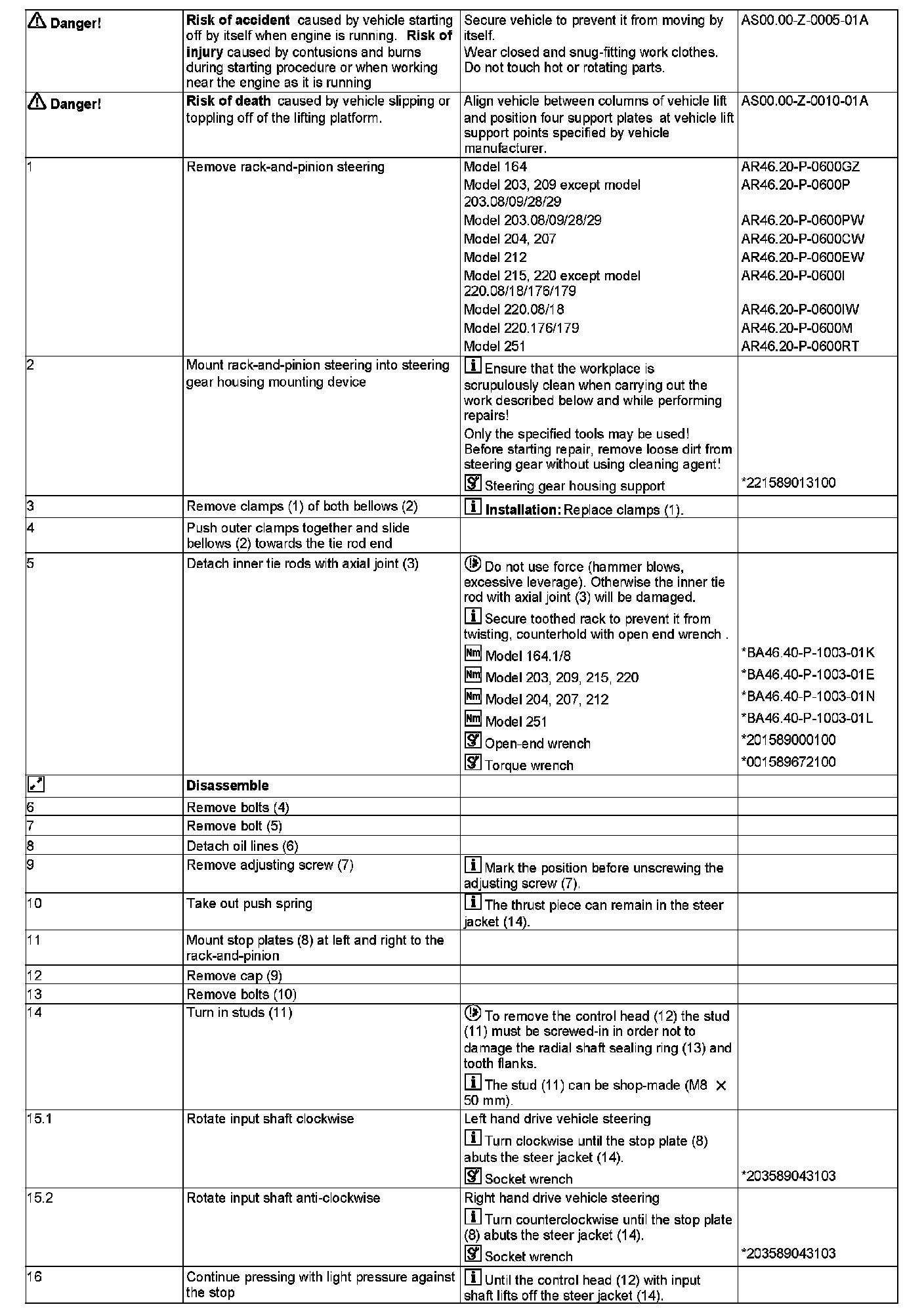

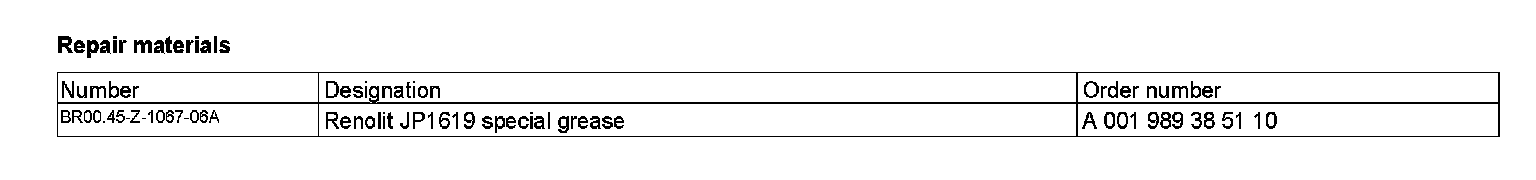

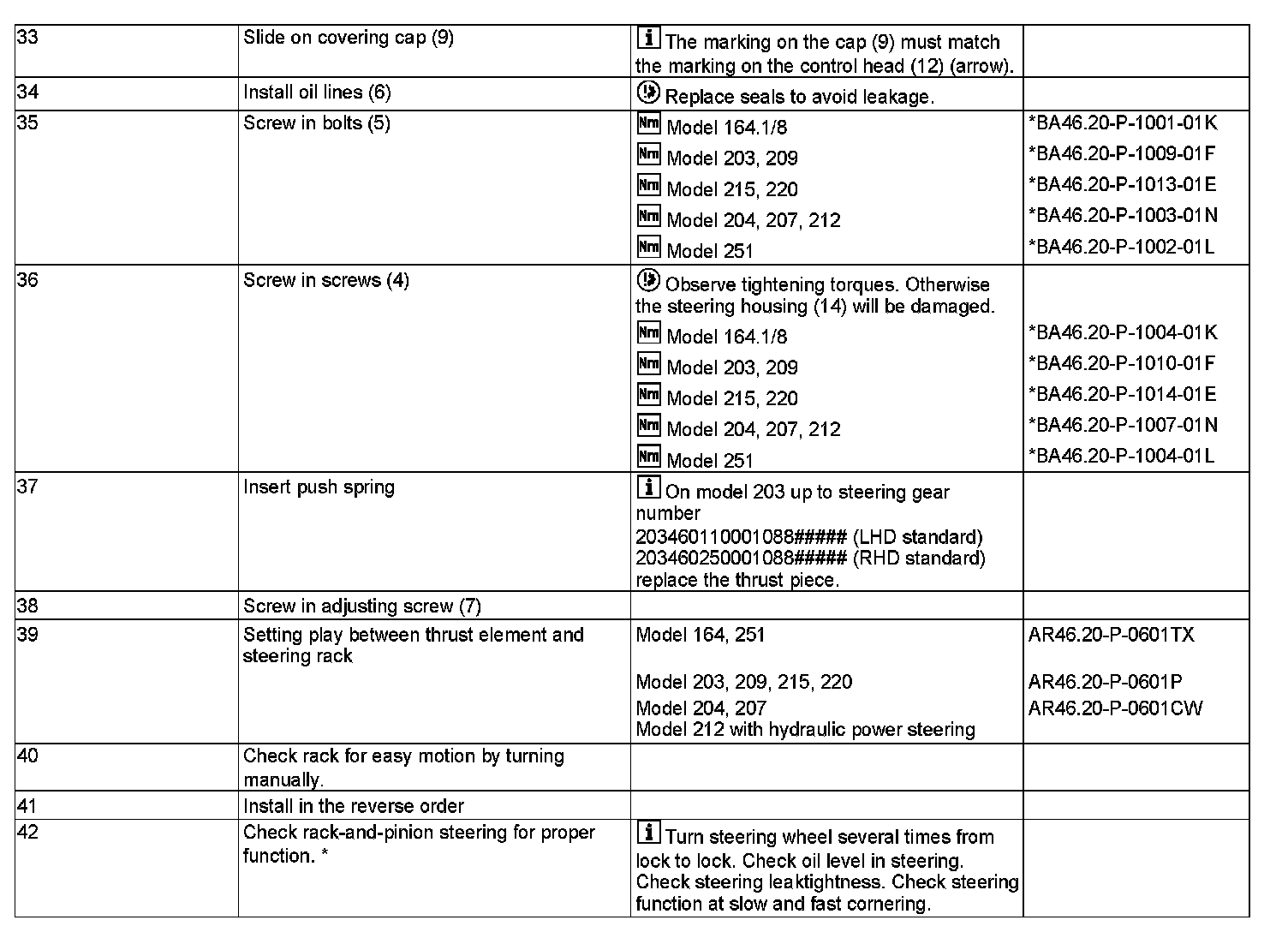

221 589 01 31 00
Steering gear housing support





203 589 04 31 03
Socket wrench





201 589 00 01 0
Open end wrench





210 589 05 15 00
Drift





210 589 01 14 00
Guide sleeve





000 589 28 33 00
Puller, 28-37 mm dia.





000 589 33 33 00
Counter stay





001 589 67 21 00

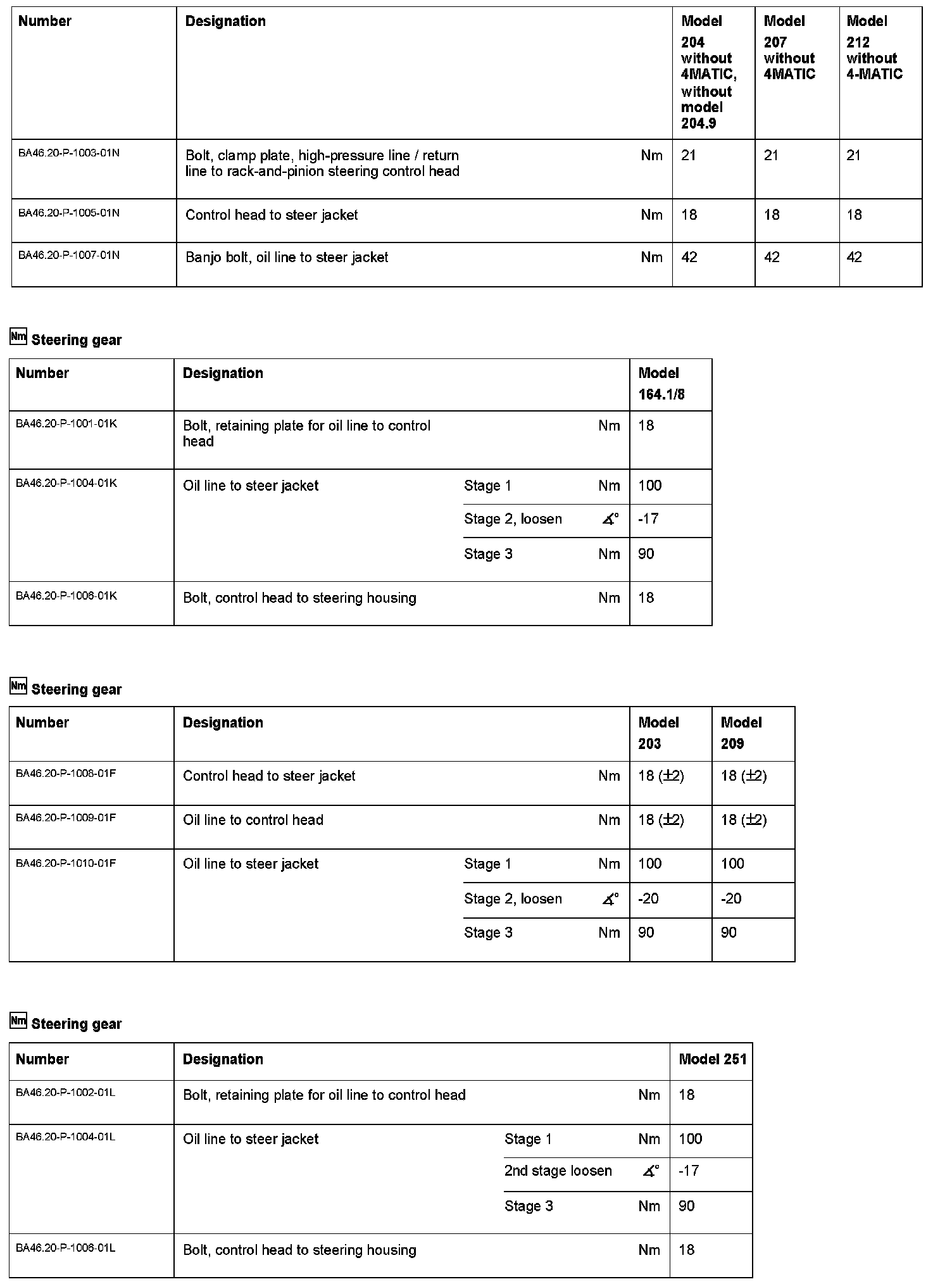

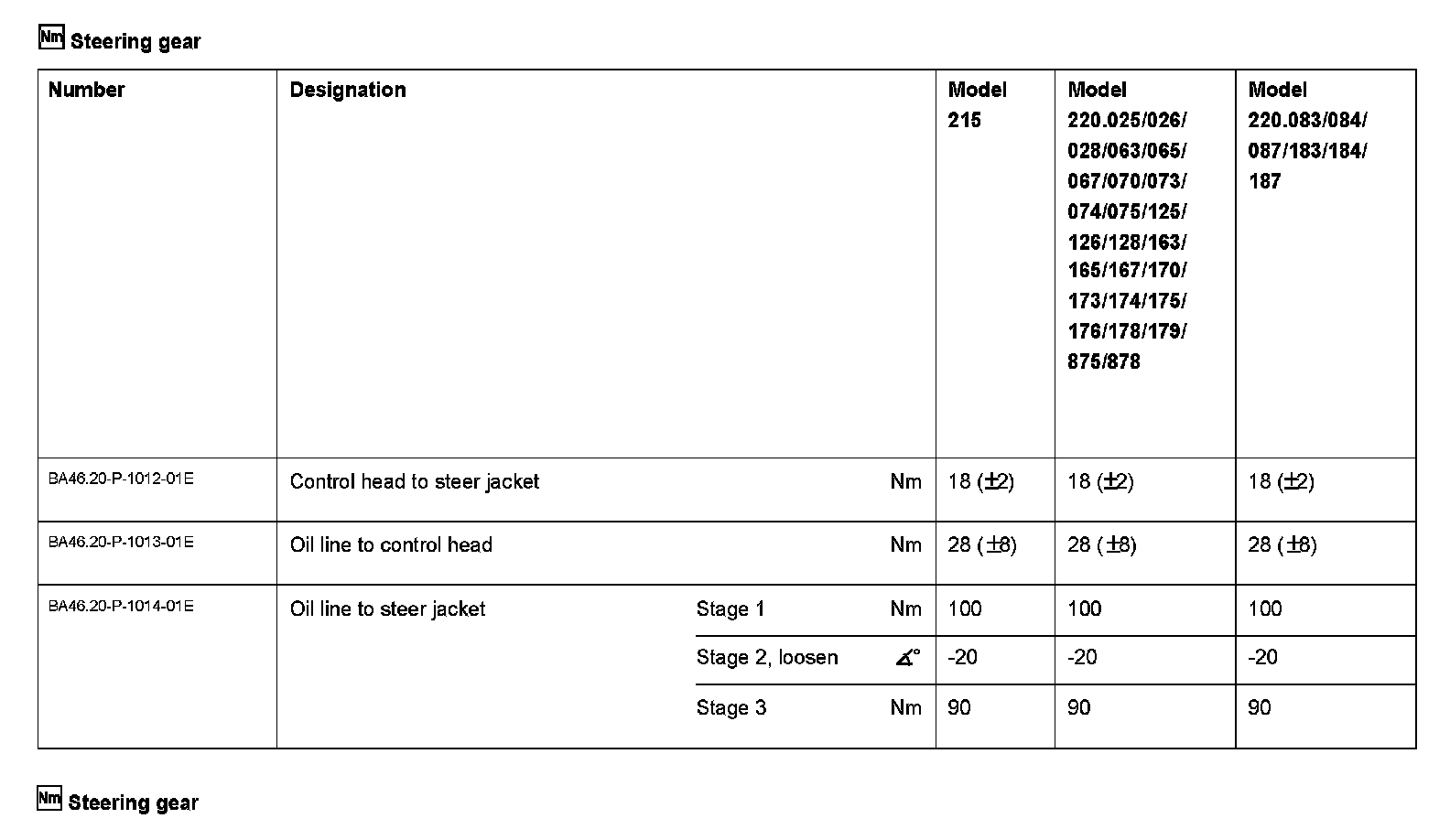

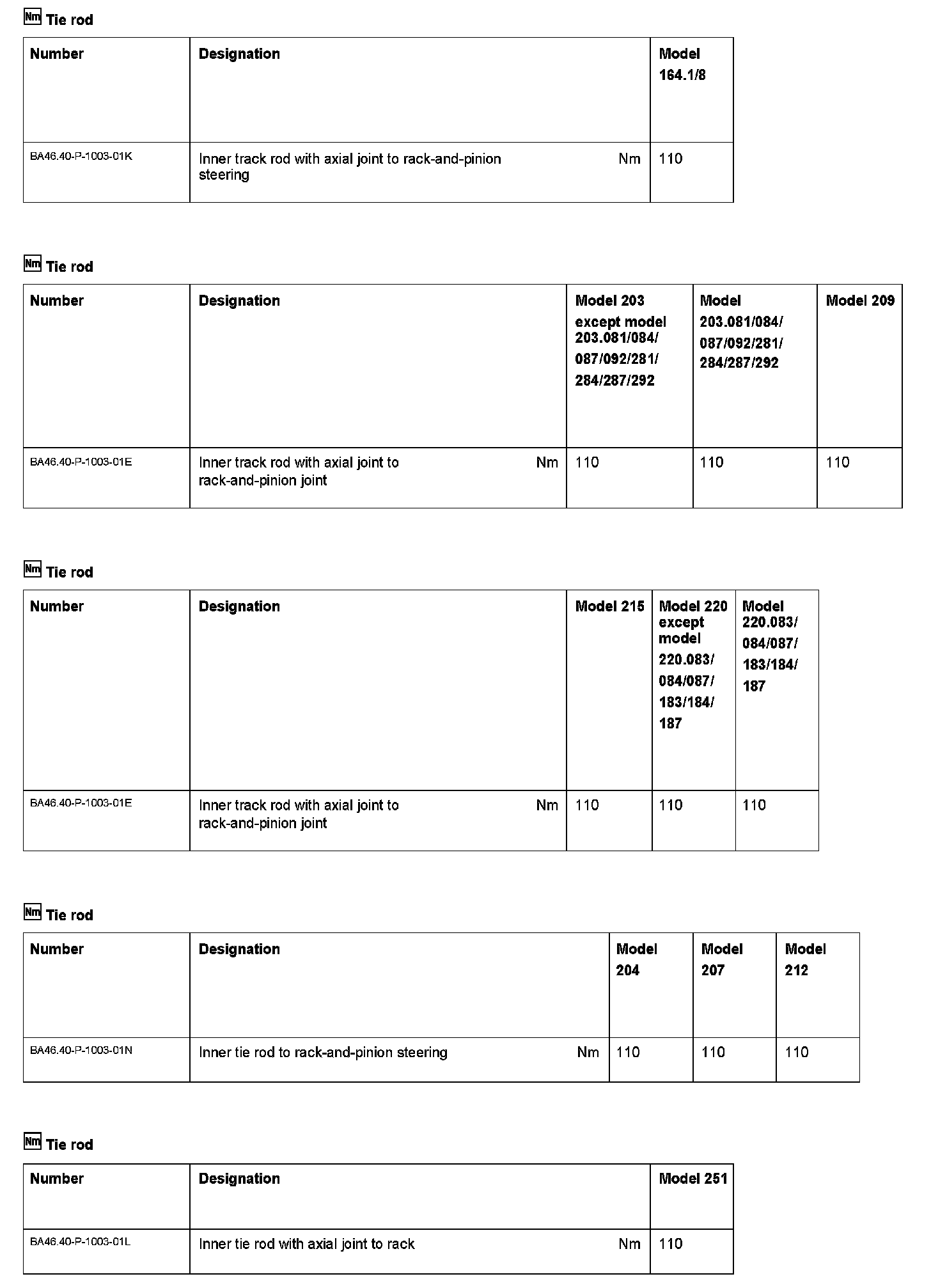

Torque wrench
