AR46.10-P-0600-06Q Remove/Install Height Adjustment Motor Gear Mechanism

AR46.10-P-0600-06Q Remove/install height adjustment motor gear mechanism
- with CODE (441) Electrically adjustable Steering column

Jacket tube:

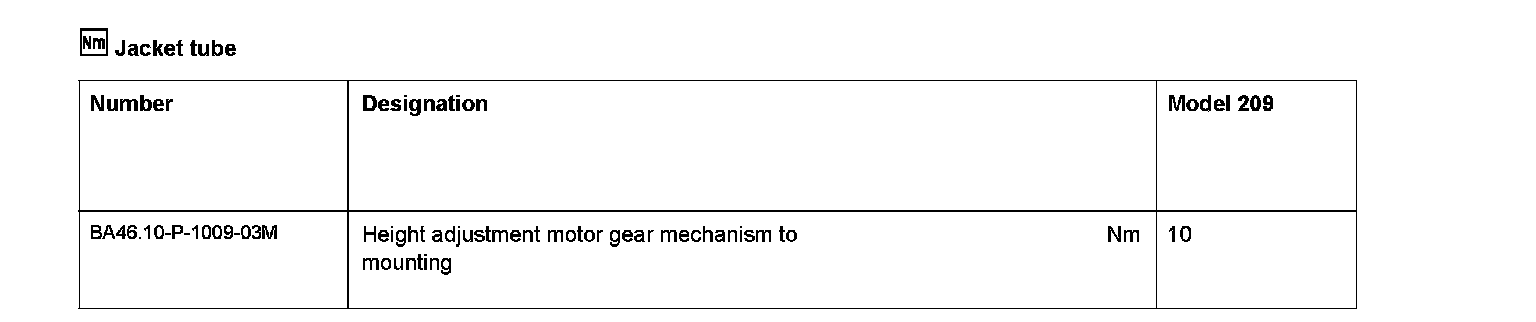

Component Identification:

Remove
1 Remove bolts (60a) from gear mechanism (60).
2 Remove gear mechanism (60), pulling off gear coupling (60e) at the same time.

Install
3 Install gear mechanism (60), pushing on the gear coupling (60e) at the same time.
4 Fit bolts (60a) at gear mechanism (60).

Do not tighten bolts (60a) until mounting (87) is installed on jacket tube.

5 Check alignment of the two holes (arrows) in the pins.

To do this, insert a suitable bolt through the holes and turn the pins to adjust the height if necessary.

The chamfers of the holes (arrows) in the pins must face outwards.
