Ignition Lock Cable: Service and Repair



AR27.60-P-0122Q Remove/install ignition lock control cable
- TRANSMISSION 722.6/9 in MODELS 209.3/4

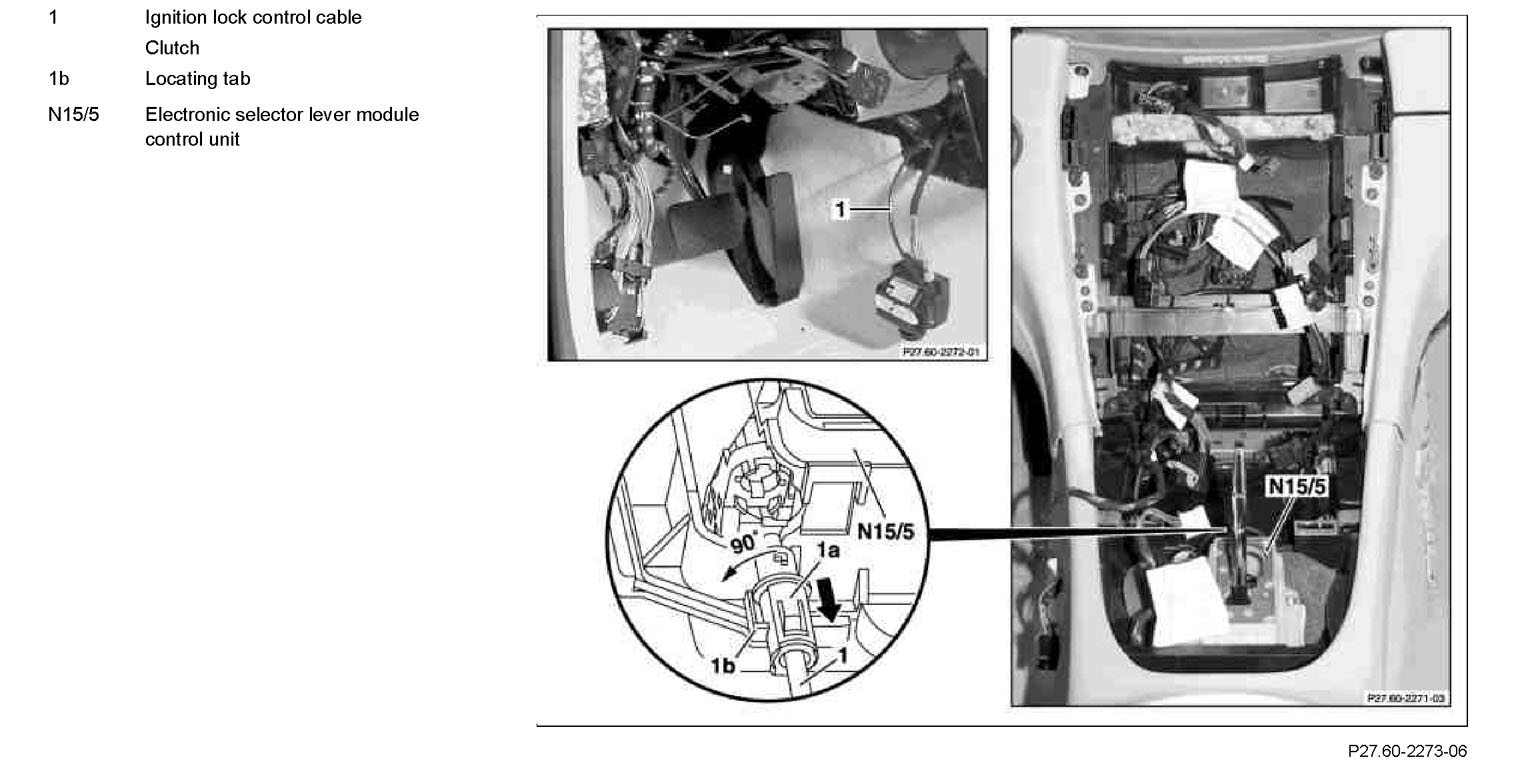

Component Identification:

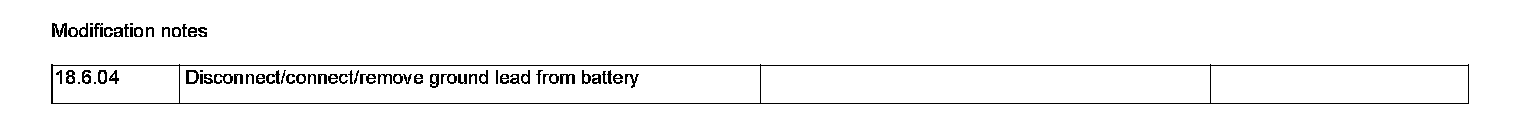

Modification Notes:

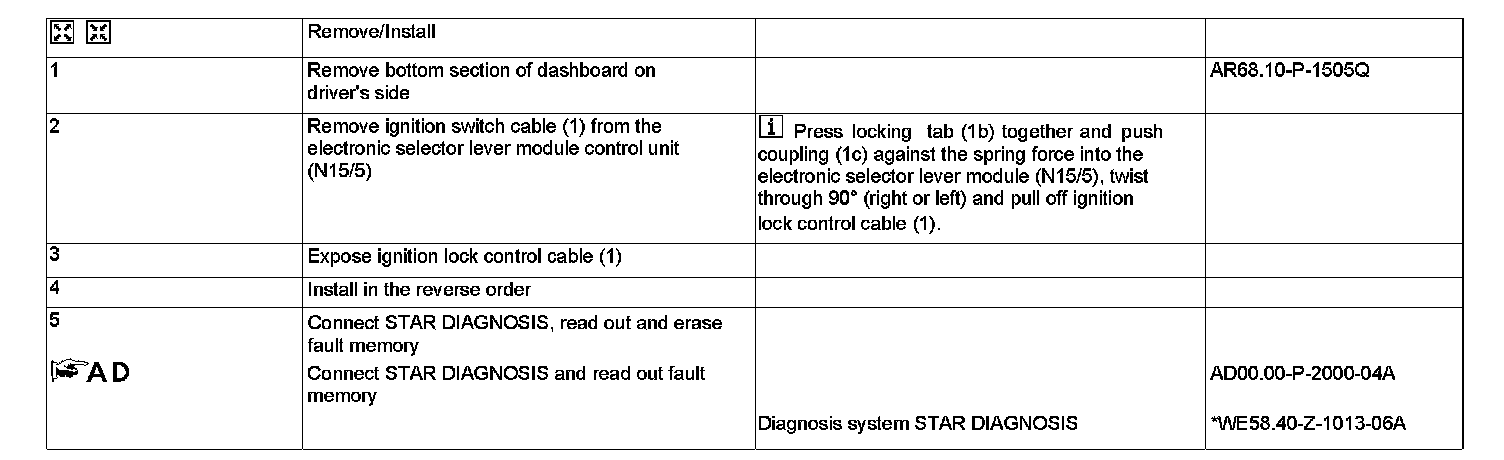

Steps 1 - 5:




Workshop Equipment/MB Testers:
