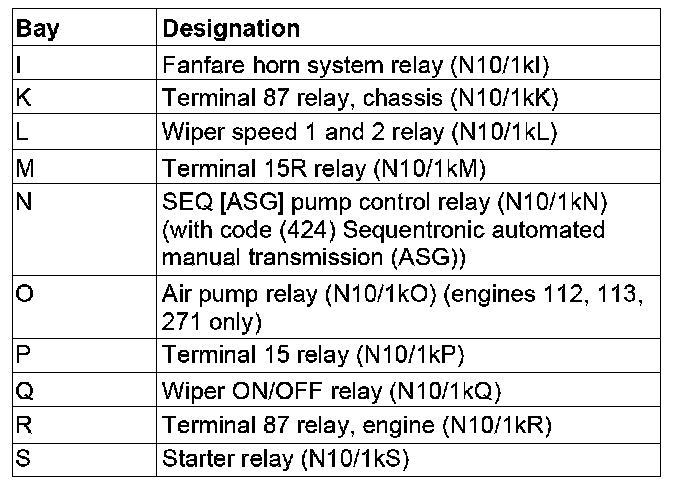

GF54.15-P-1257-03P Relay Assignment of Fuse and Relay Box In Engine Compartment, Left



GF54.15-P-1257-03P Relay Assignment Of Fuse And Relay Box In Engine Compartment, Left

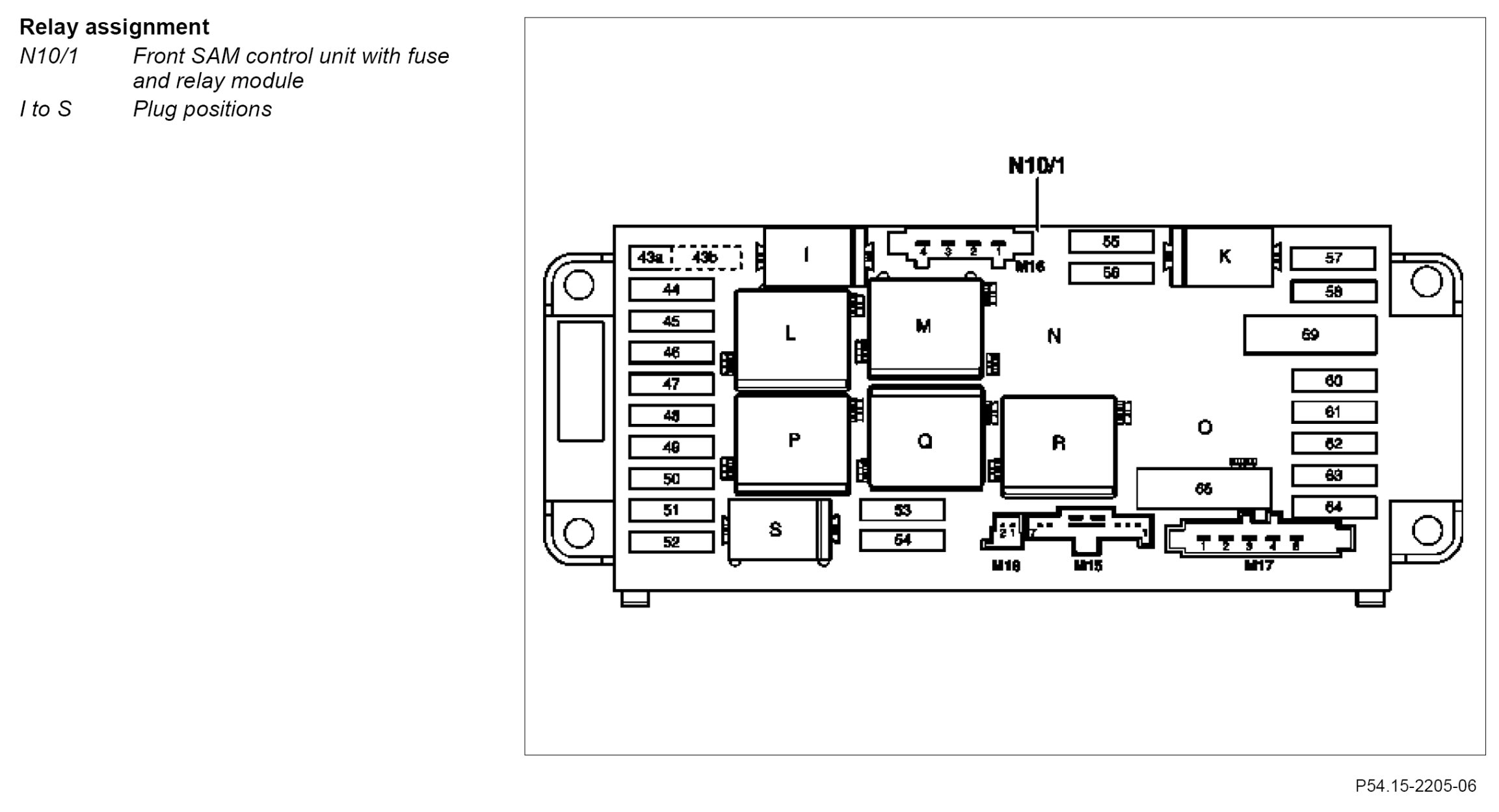

Component Identification:
