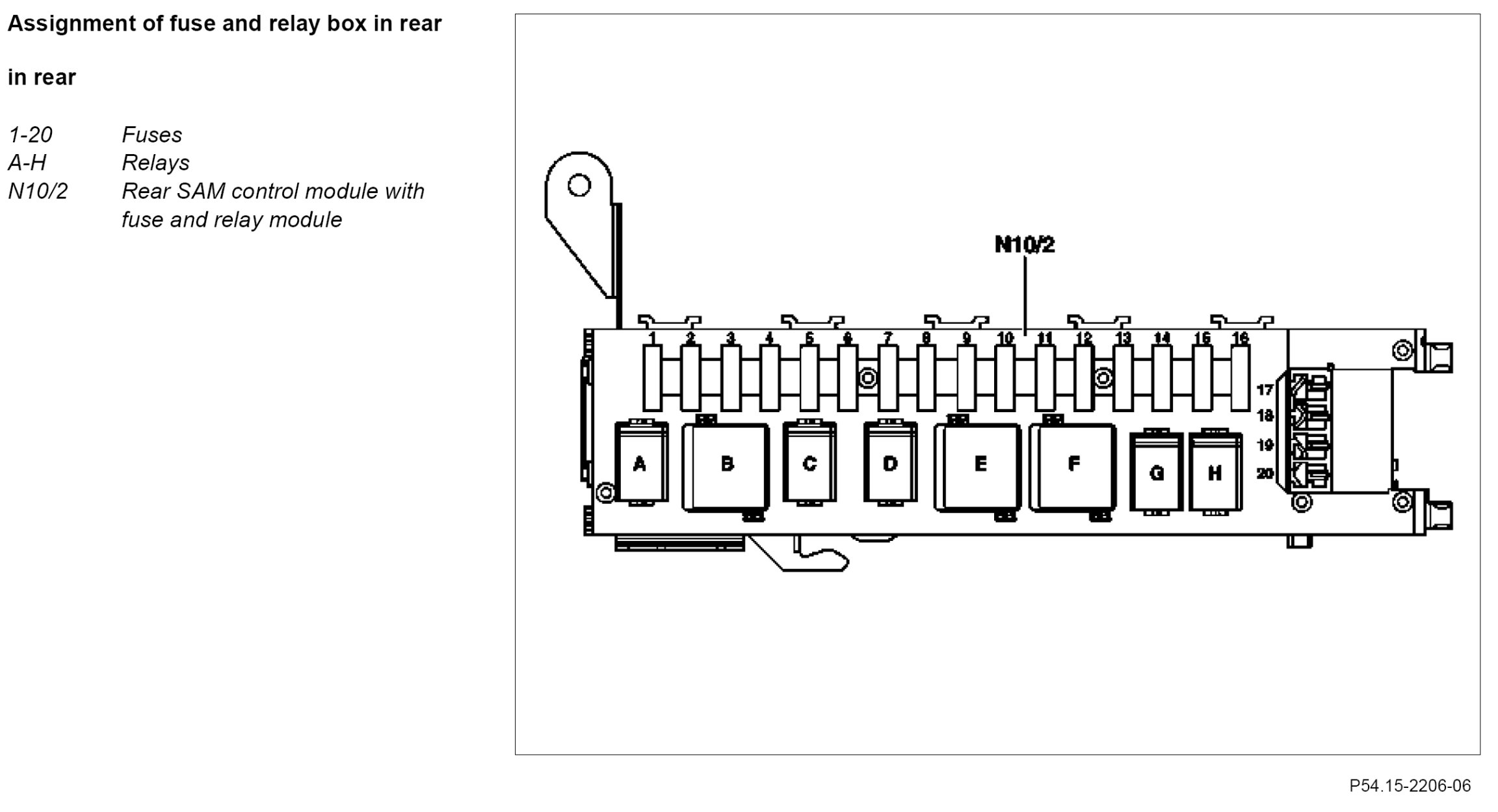

GF54.15-P-1257-01P Relay Assignment of Rear Fuse and Relay Box
GF54.15-P-1257-01P Relay Assignment of Rear Fuse and Relay Box
GF54.15-P-1257-01P Relay Assignment Of Rear Fuse And Relay Box

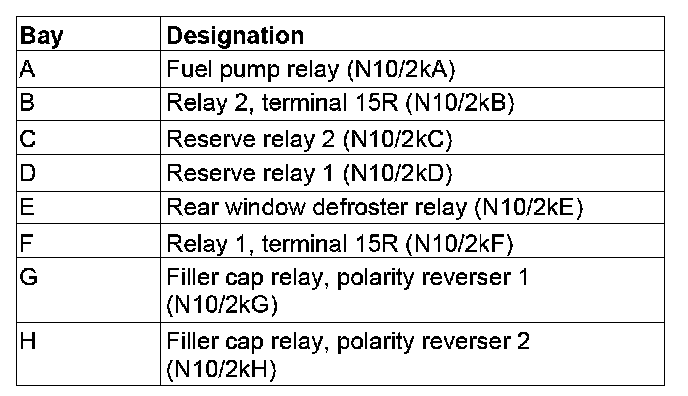

Component Identification:
