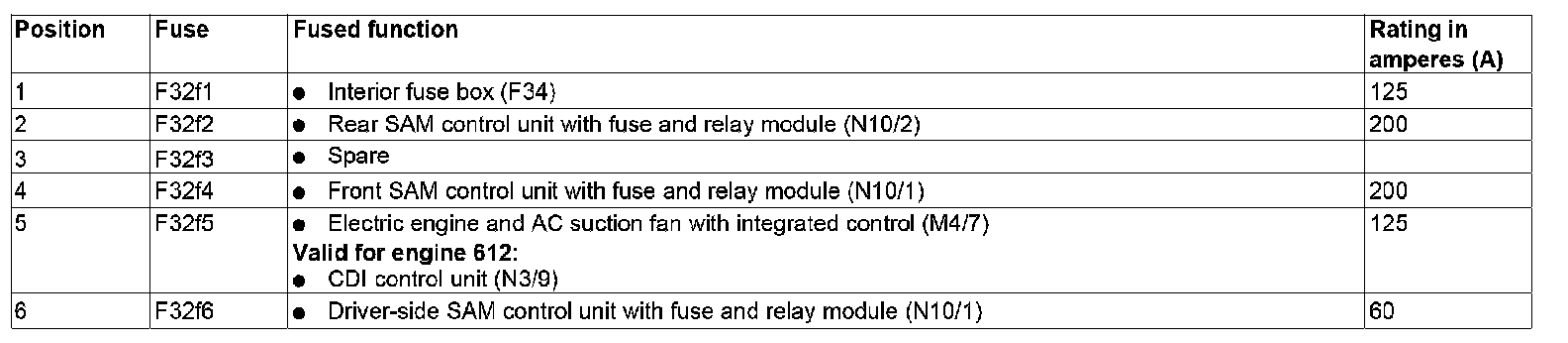

GF54.15-P-1256-07Q Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07Q Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07Q Fuse Assignment Of Front Prefuse Box

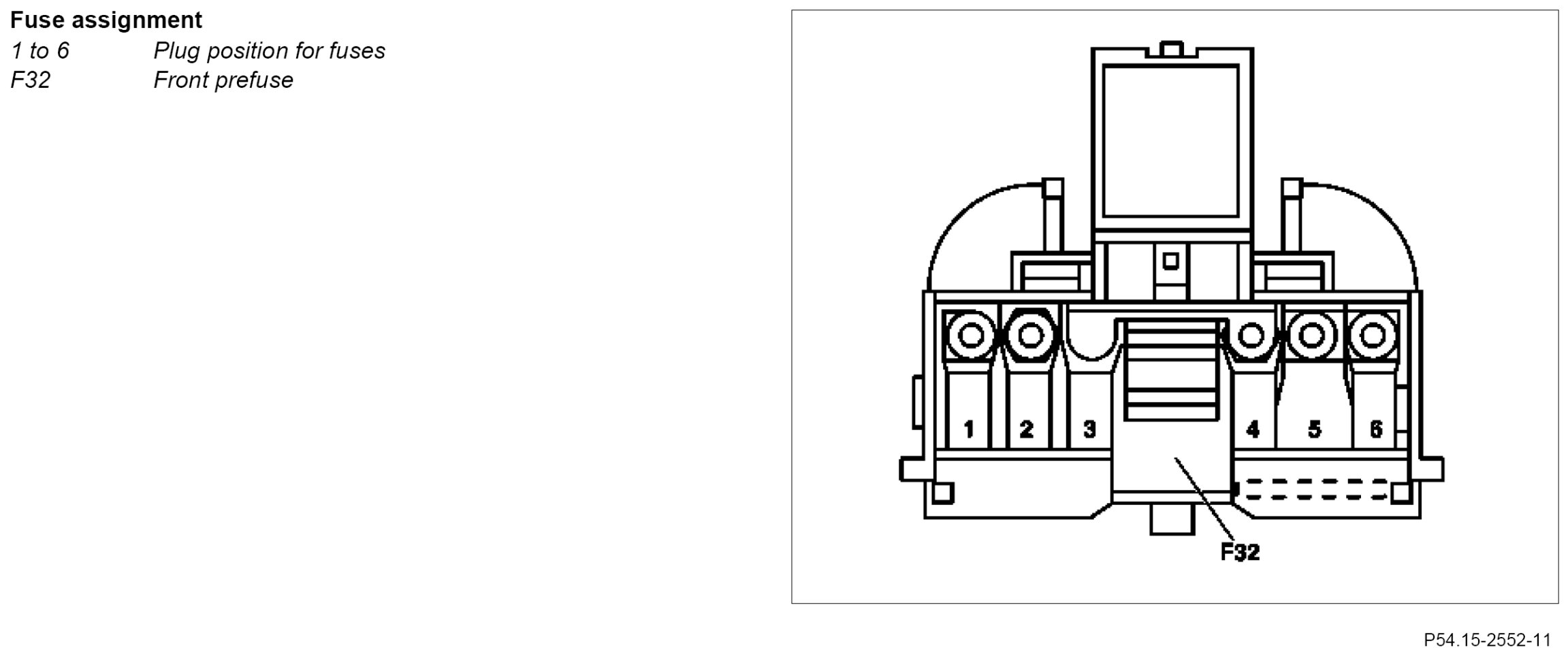

Component Identification:
