GF54.15-P-1256-03Q Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

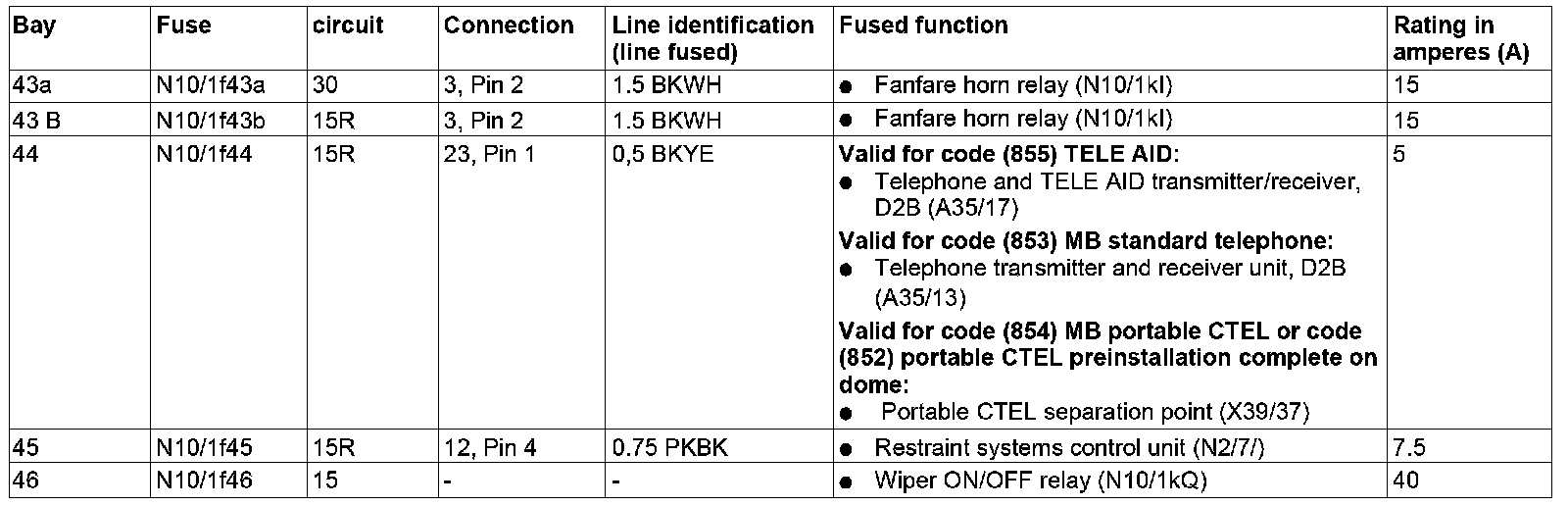

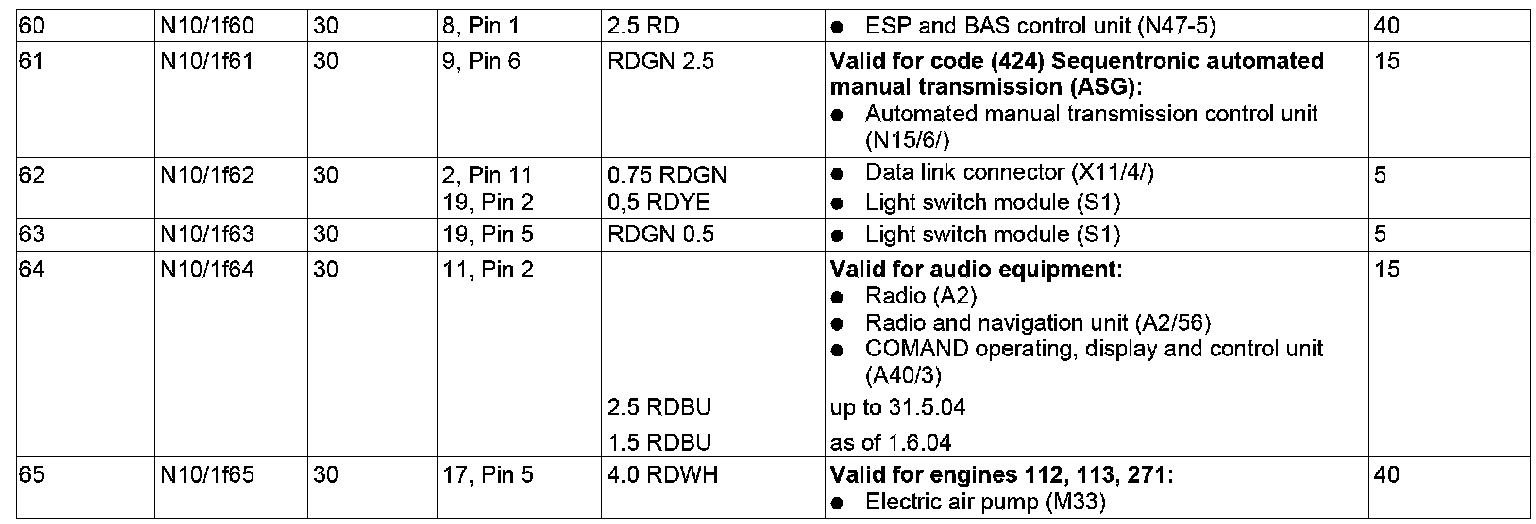

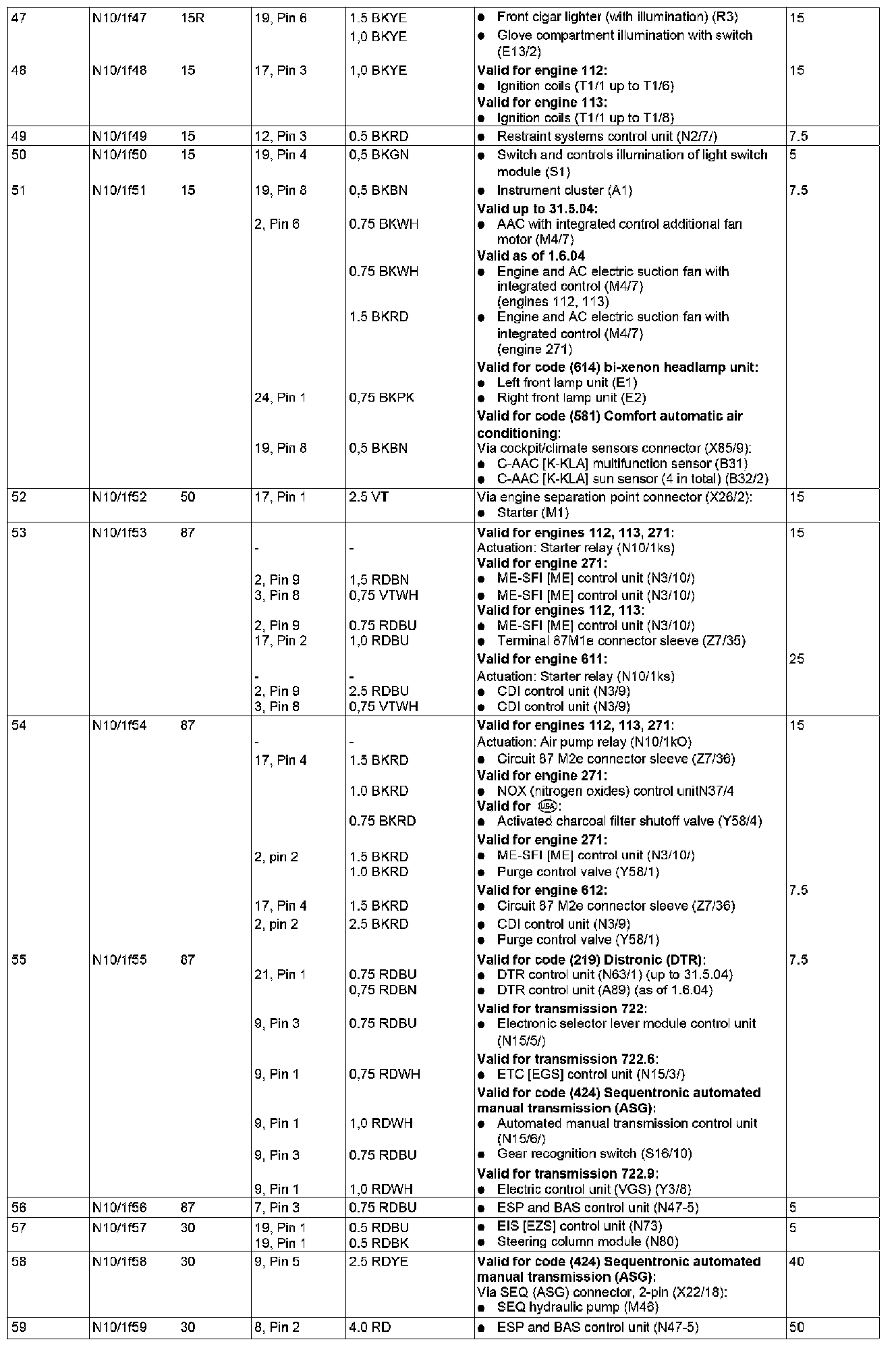

GF54.15-P-1256-03Q Fuse assignment of fuse and relay box in left engine compartment

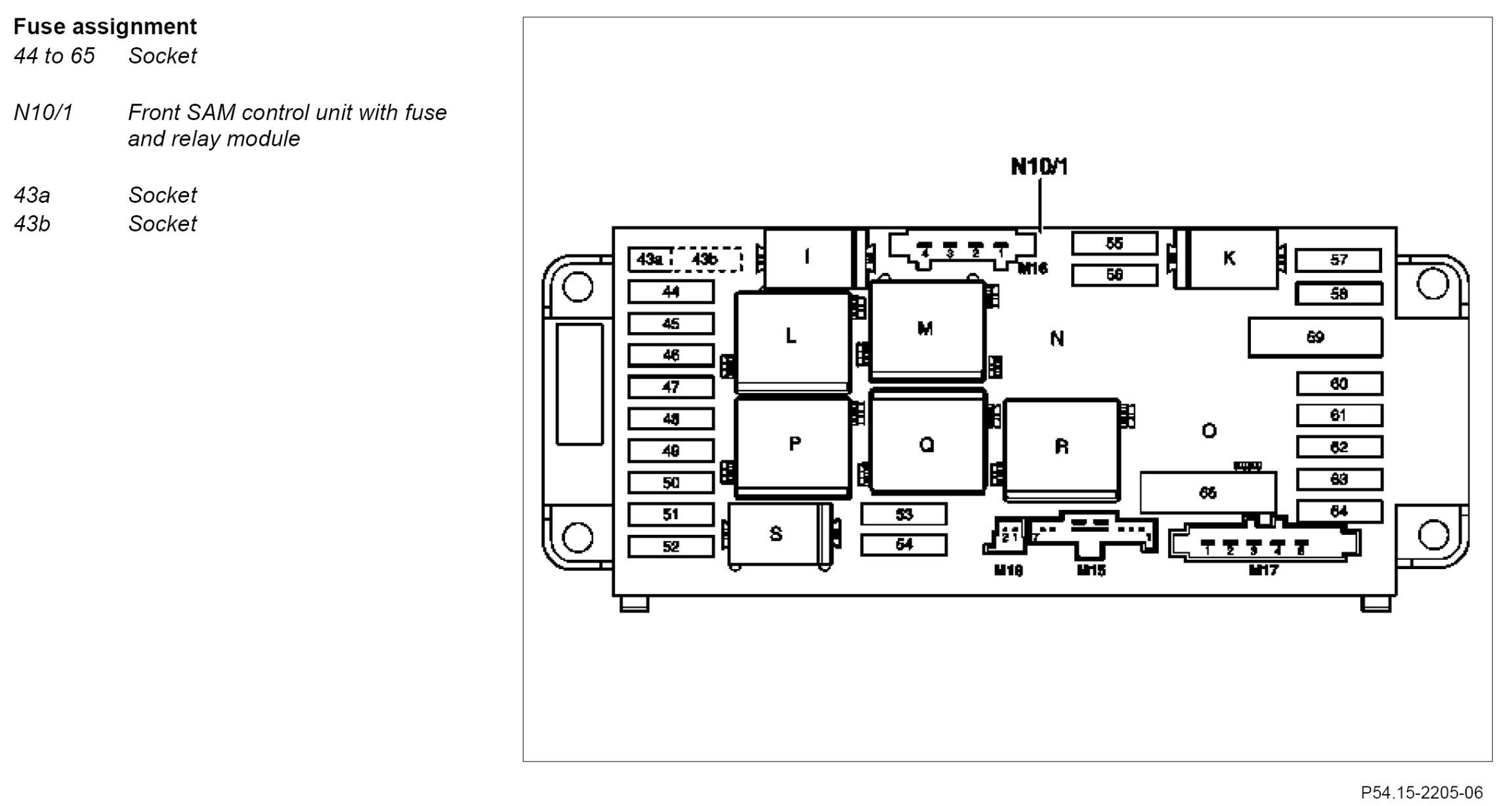

Component Identification:

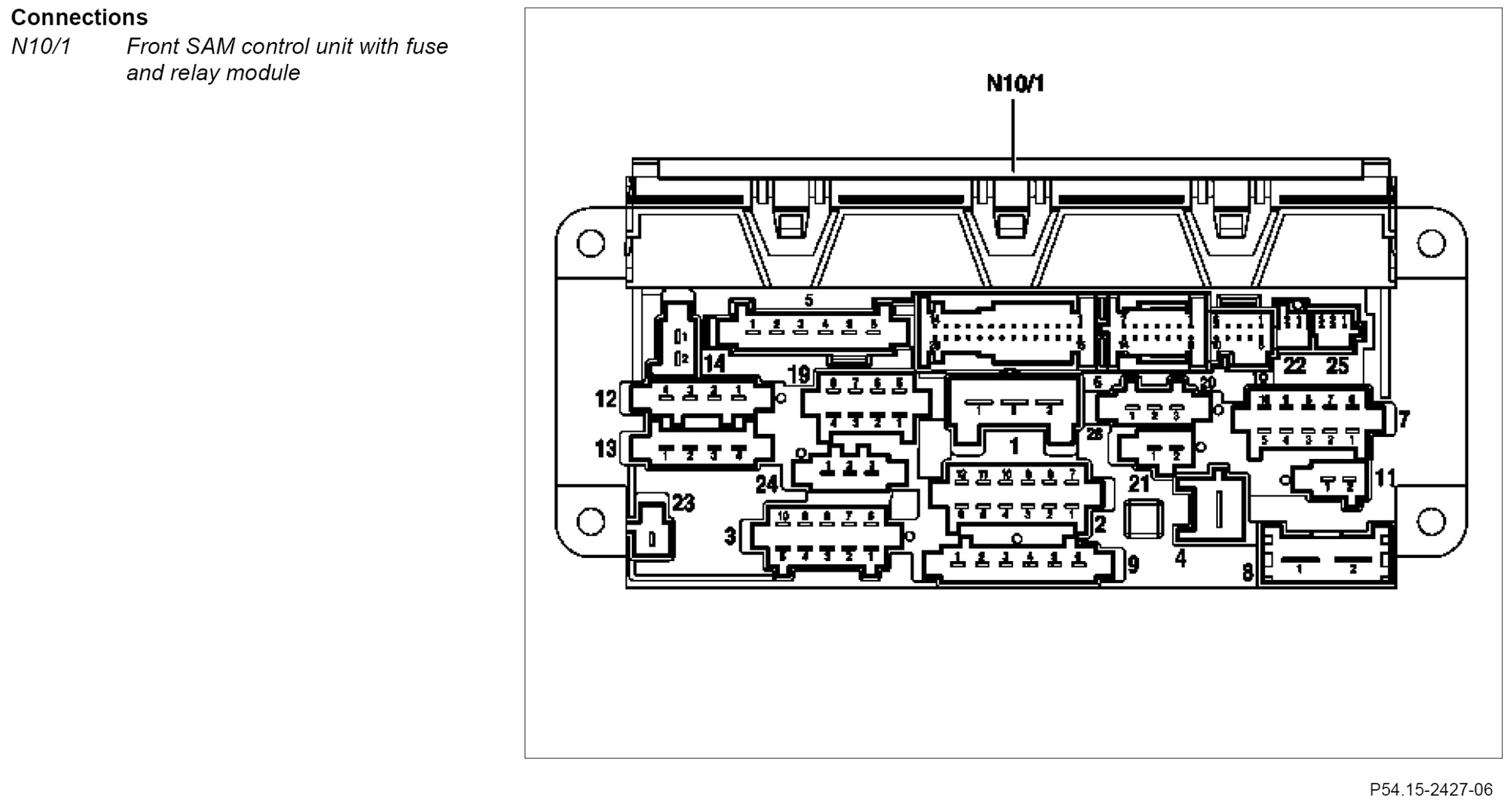

Component Identification:
