Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Specifications >> Mechanical Specifications

Mechanical Specifications

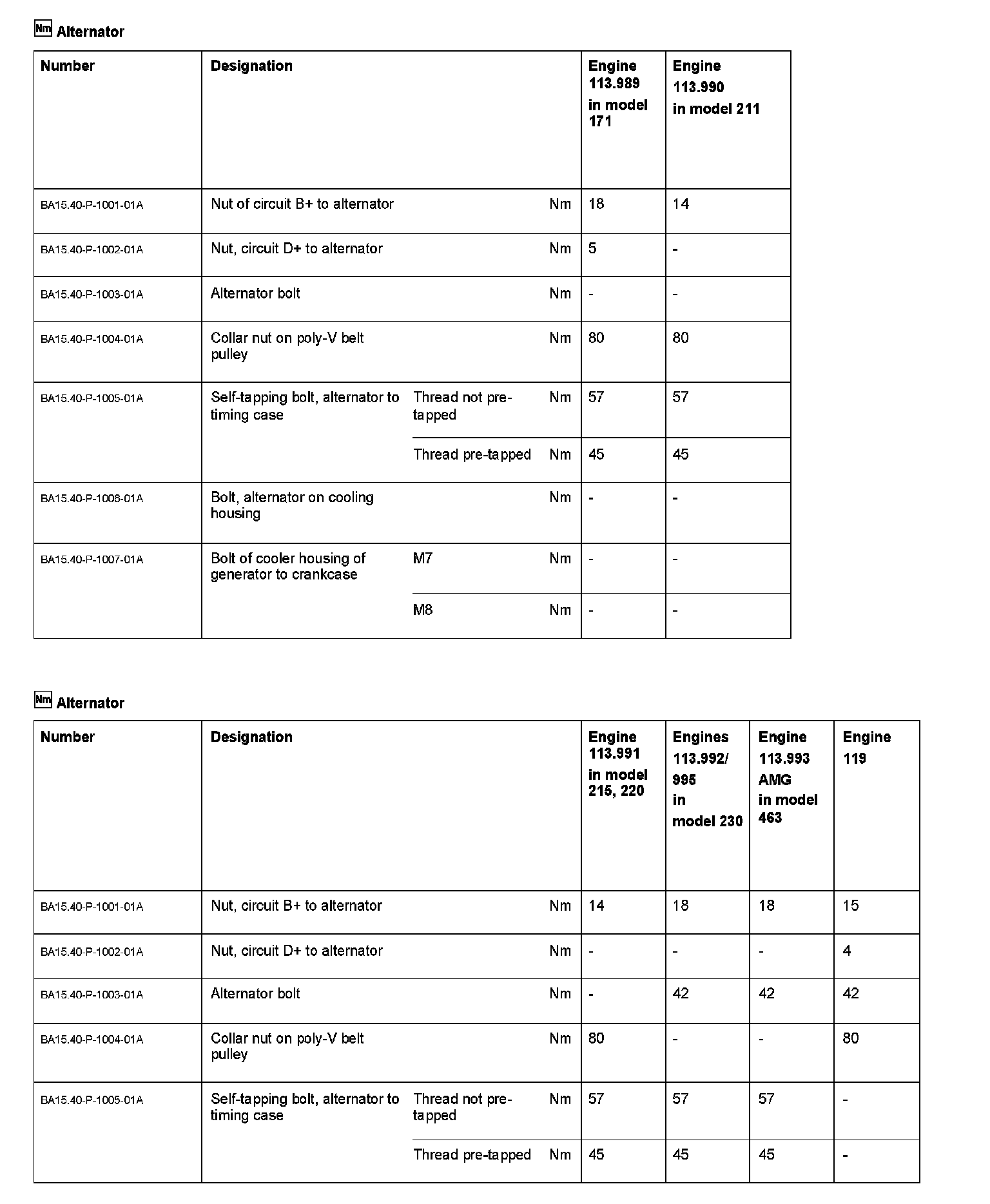

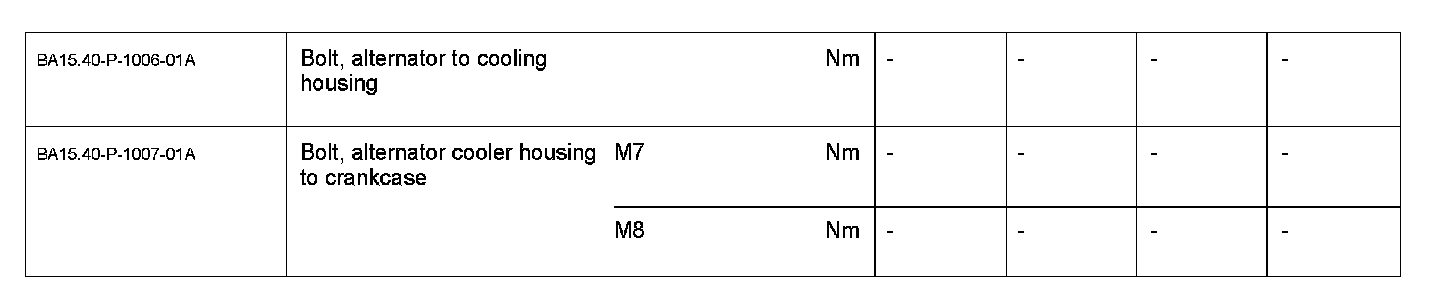

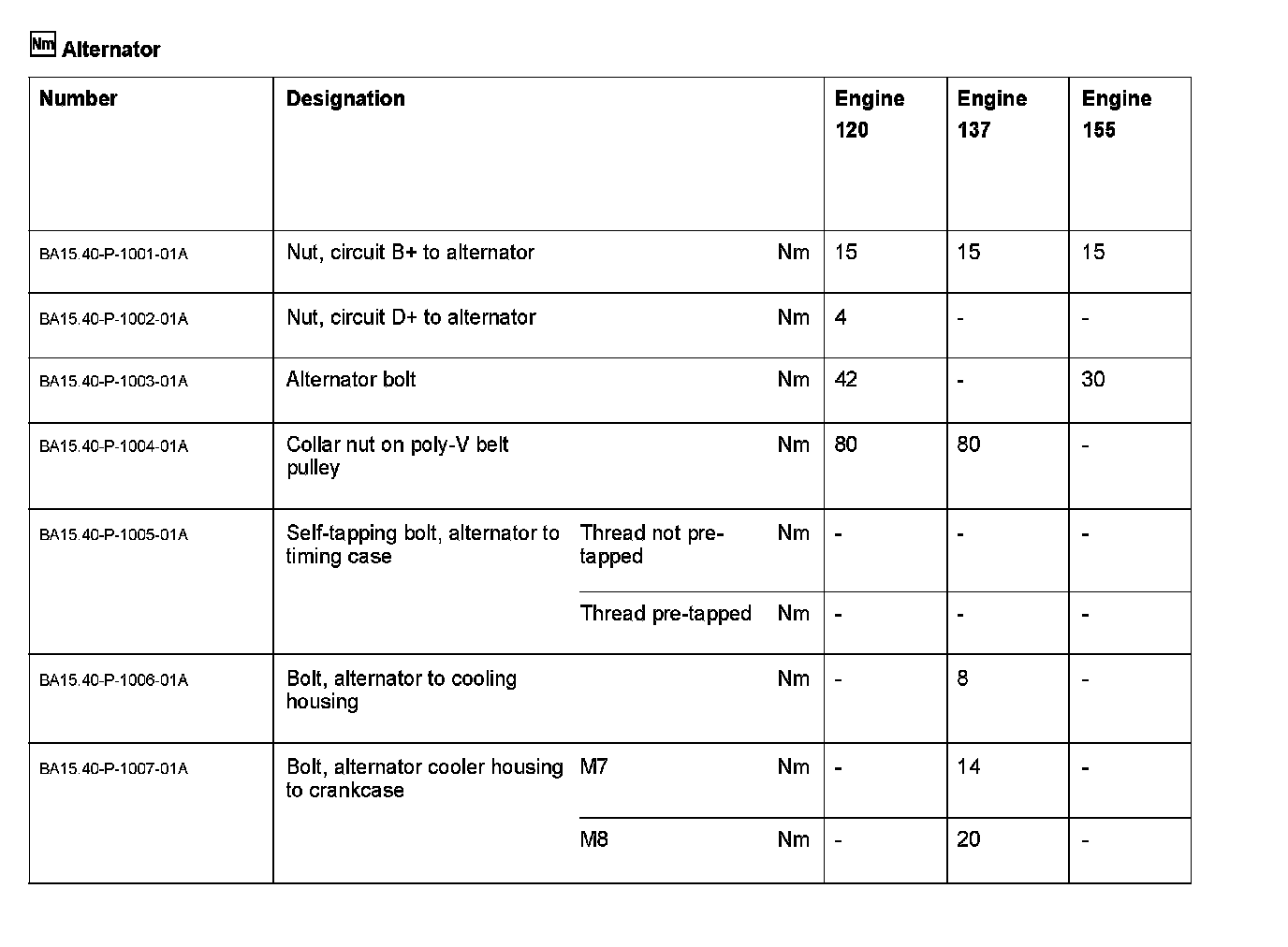

BA15.40-P-1000-01A Generator
ENGINE 103, 104, 111, 112, 113, 119, 120, 137, 155
