Electrical Specifications



BE15.40-P-1000-01K Test values for alternator

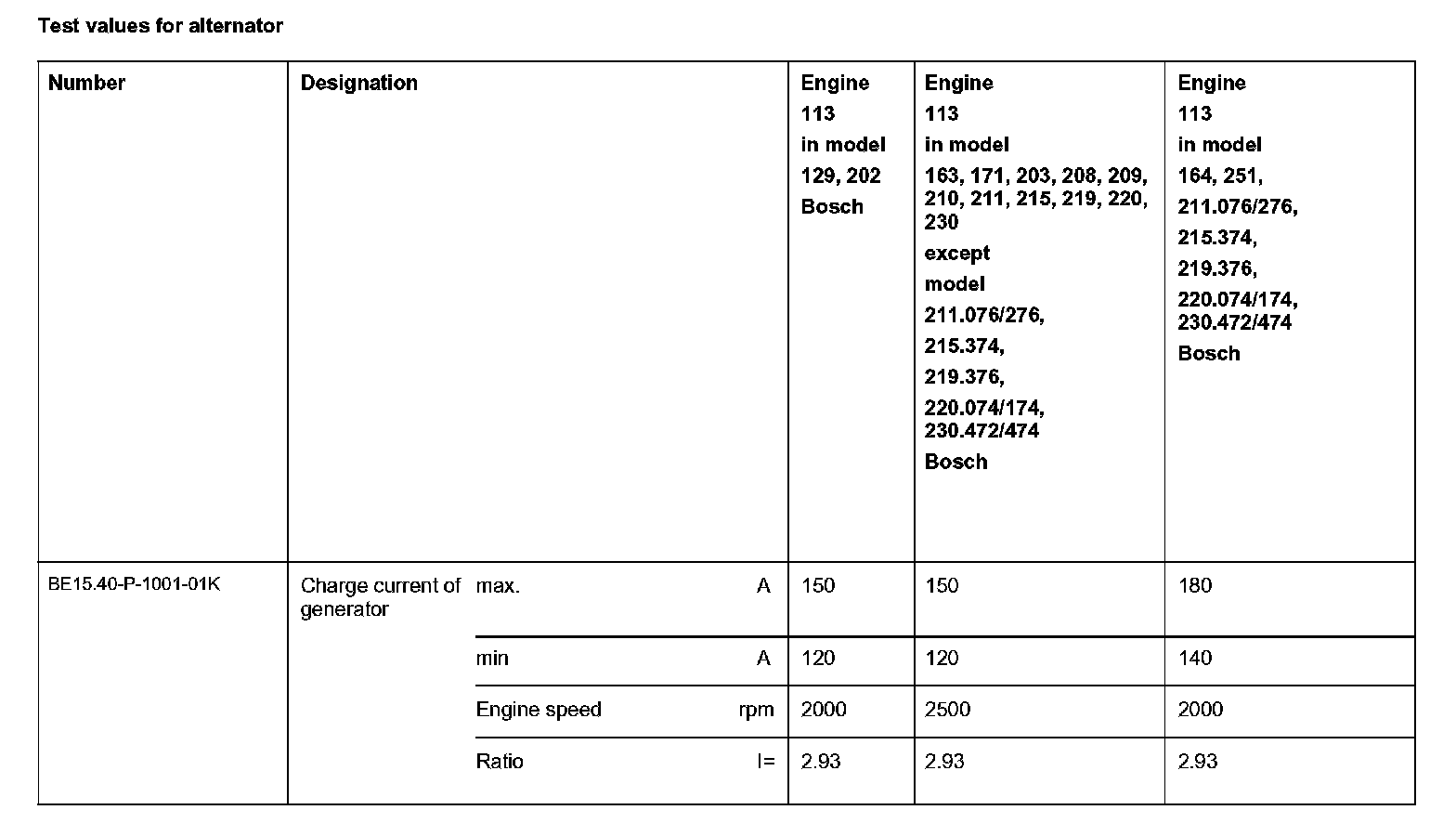

Test values for alternator:

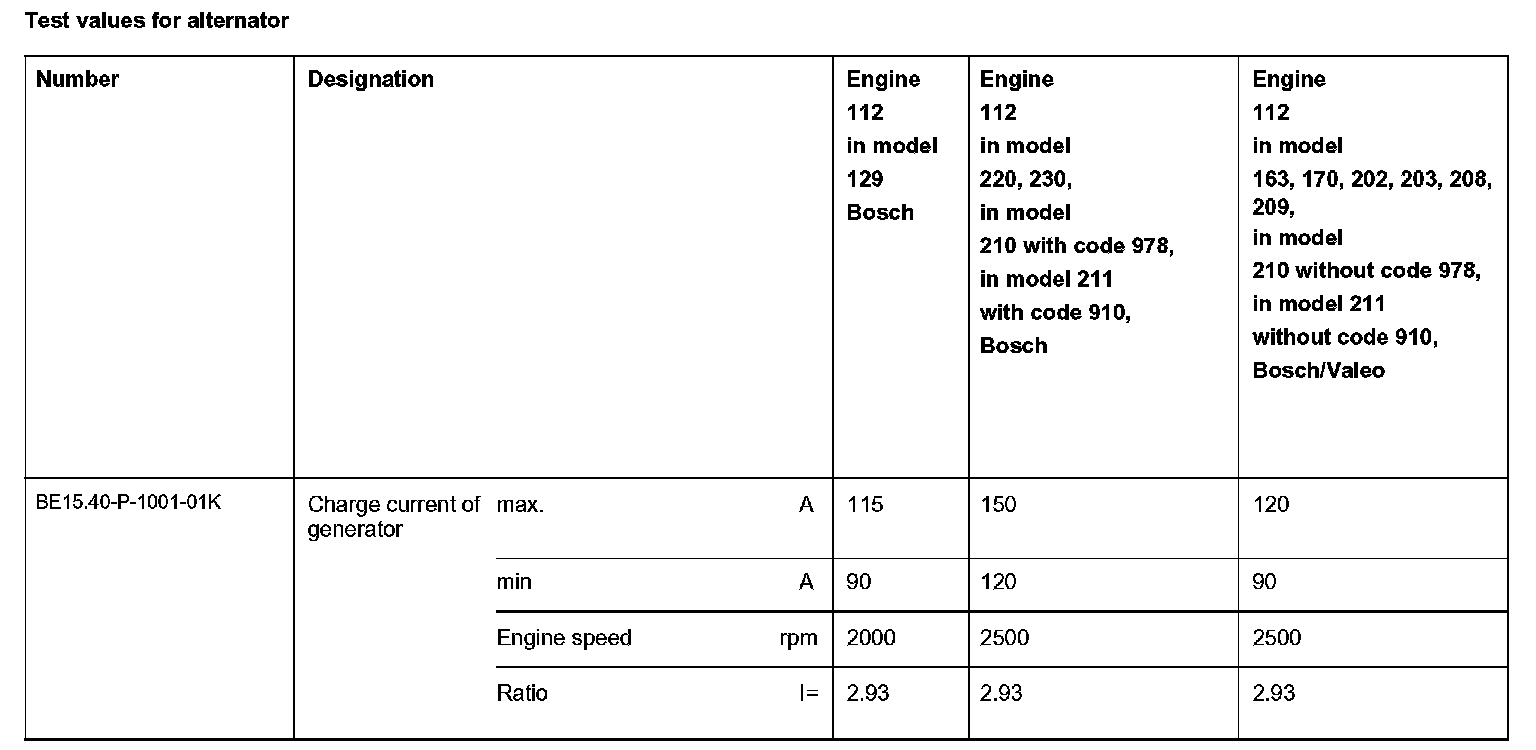

Test values for alternator:
