System Specifications



BA83.30-P-1000-01D Air Conditioning

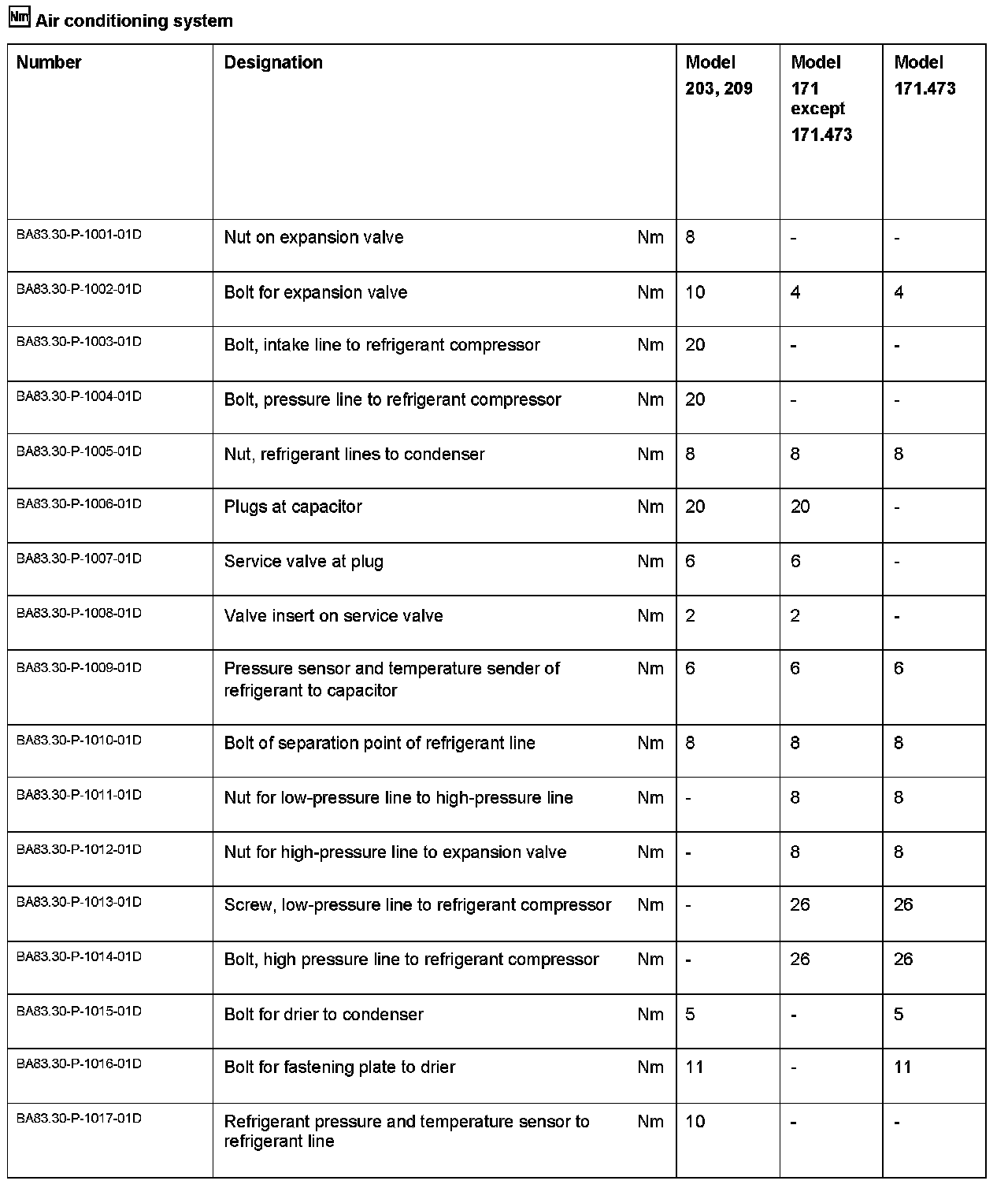

Air conditioning system


Air Conditioning System:
