AR01.40-P-8000-01B Screw Diagram For Timing Case Cover



AR01.40-P-8000-01B Screw diagram for timing case cover

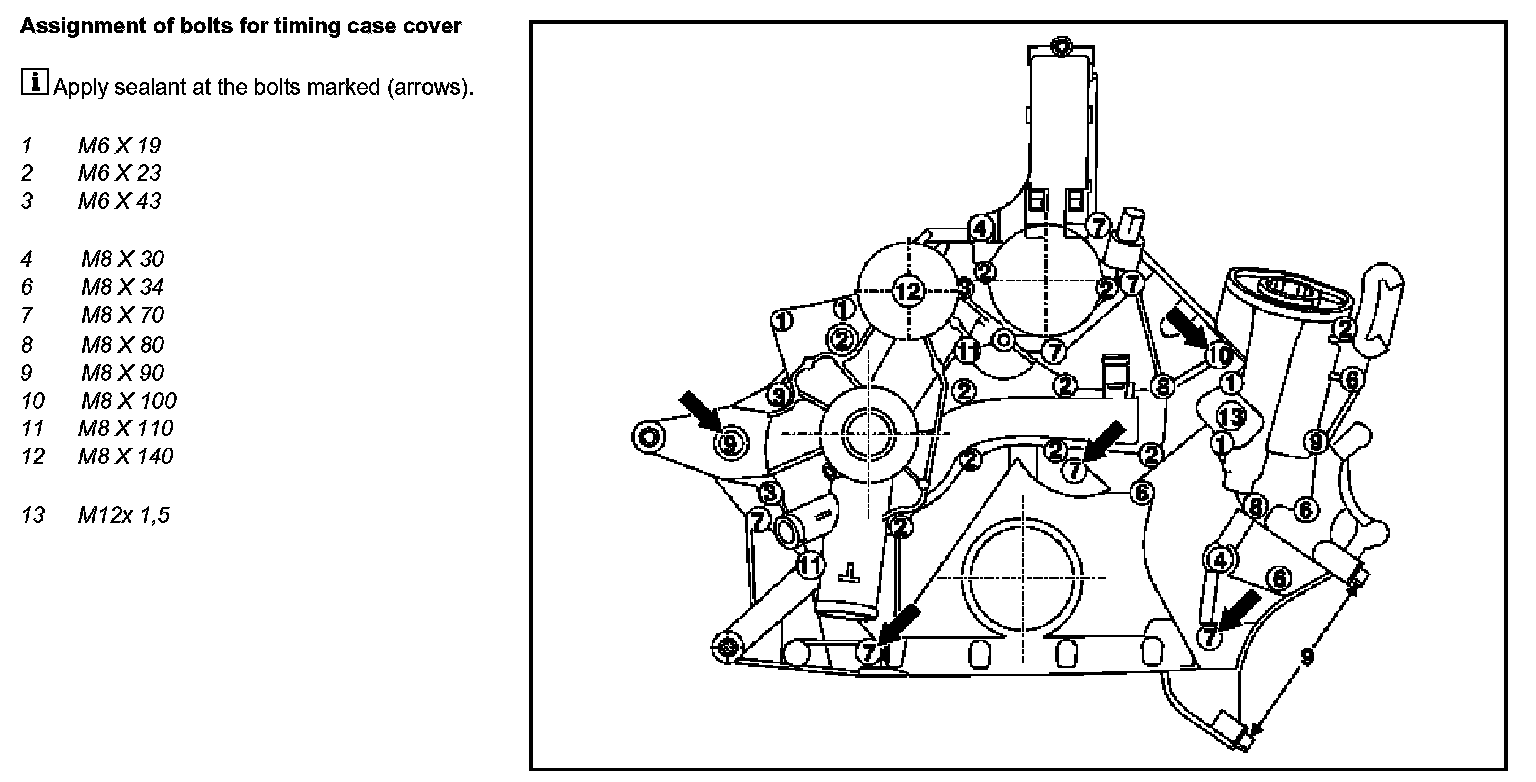

Assignment of bolts for timing case cover:
