Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Mount >> BA22.10-P-1000-02A Engine Support (Engine Side)

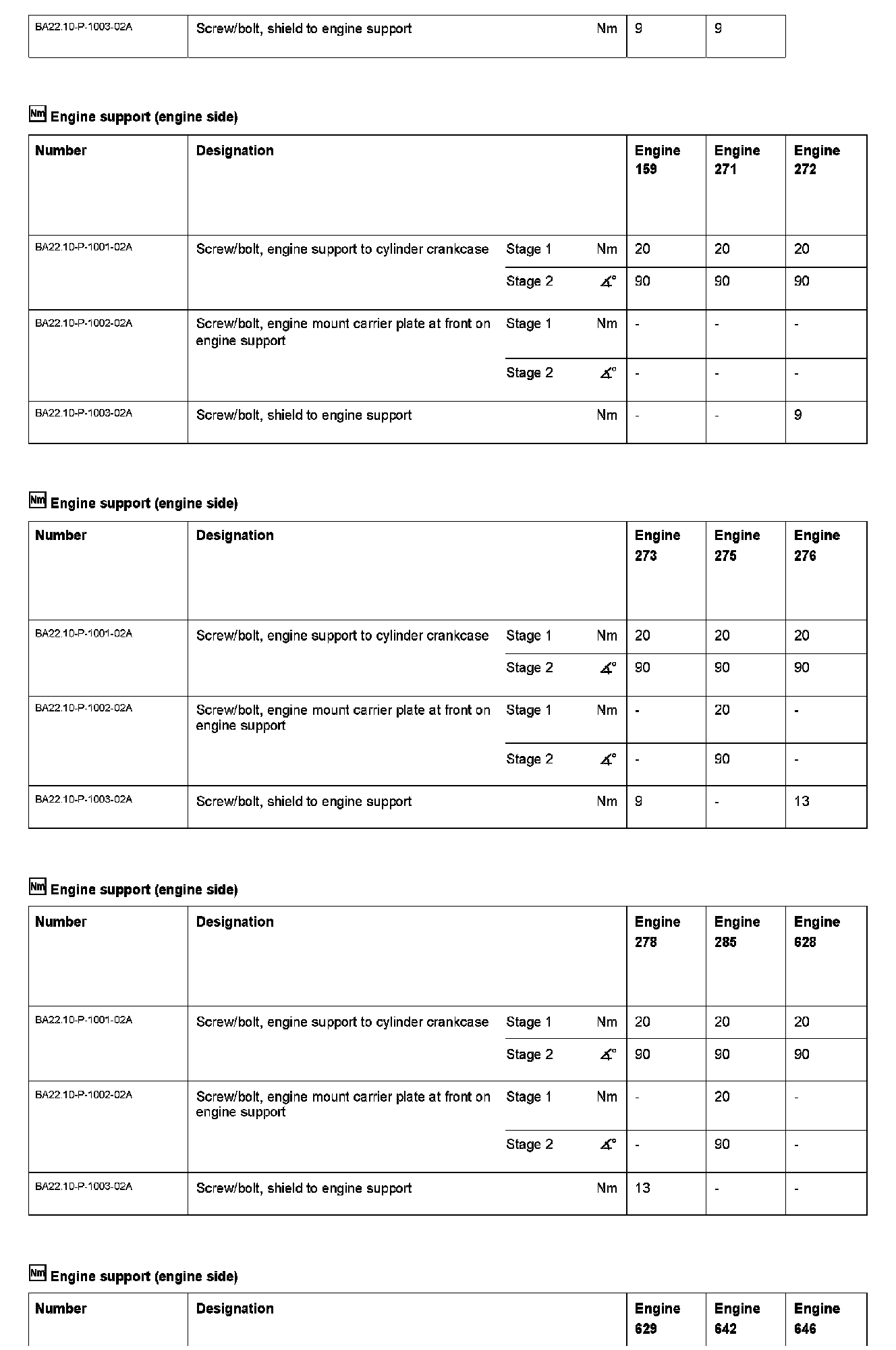

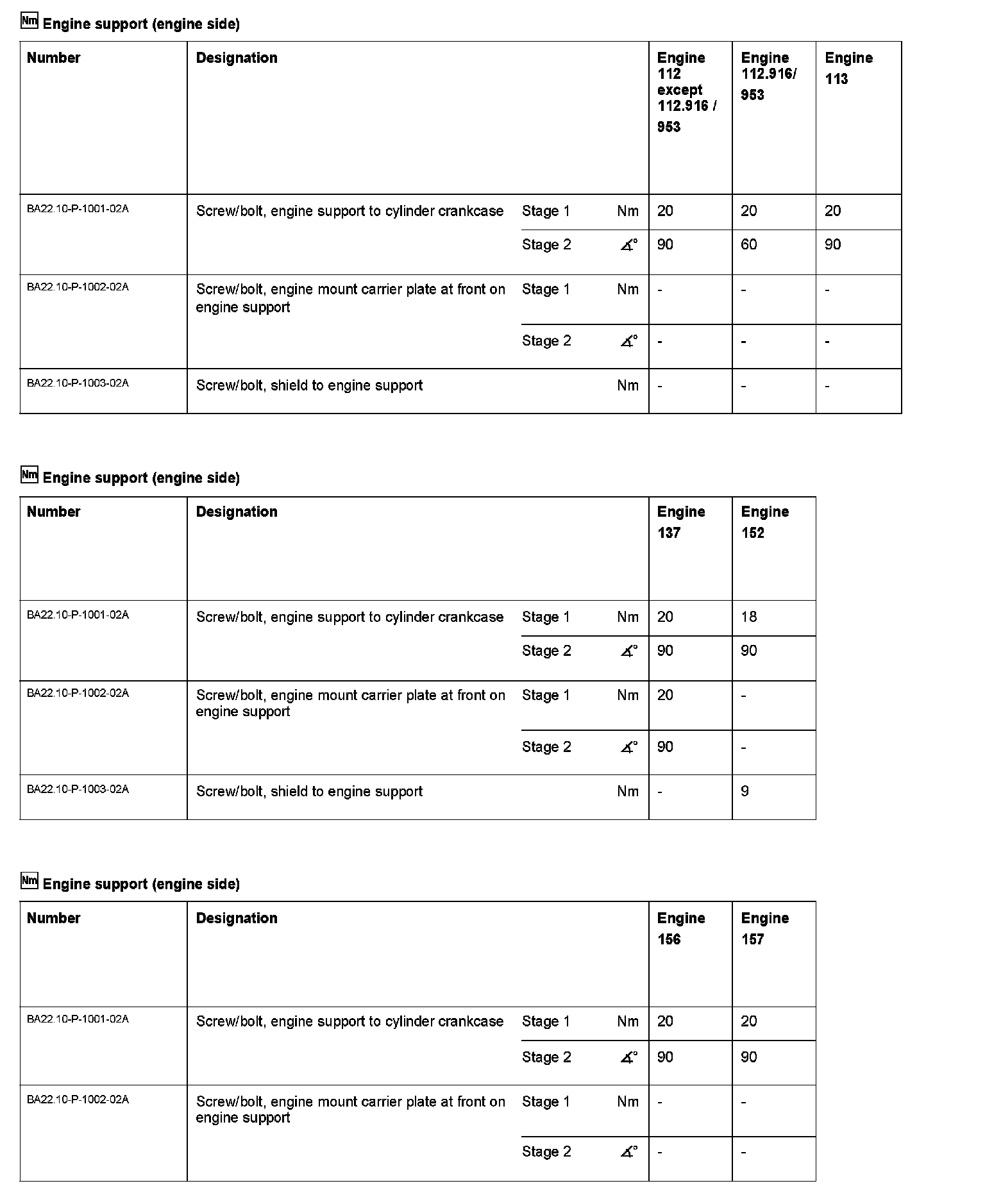

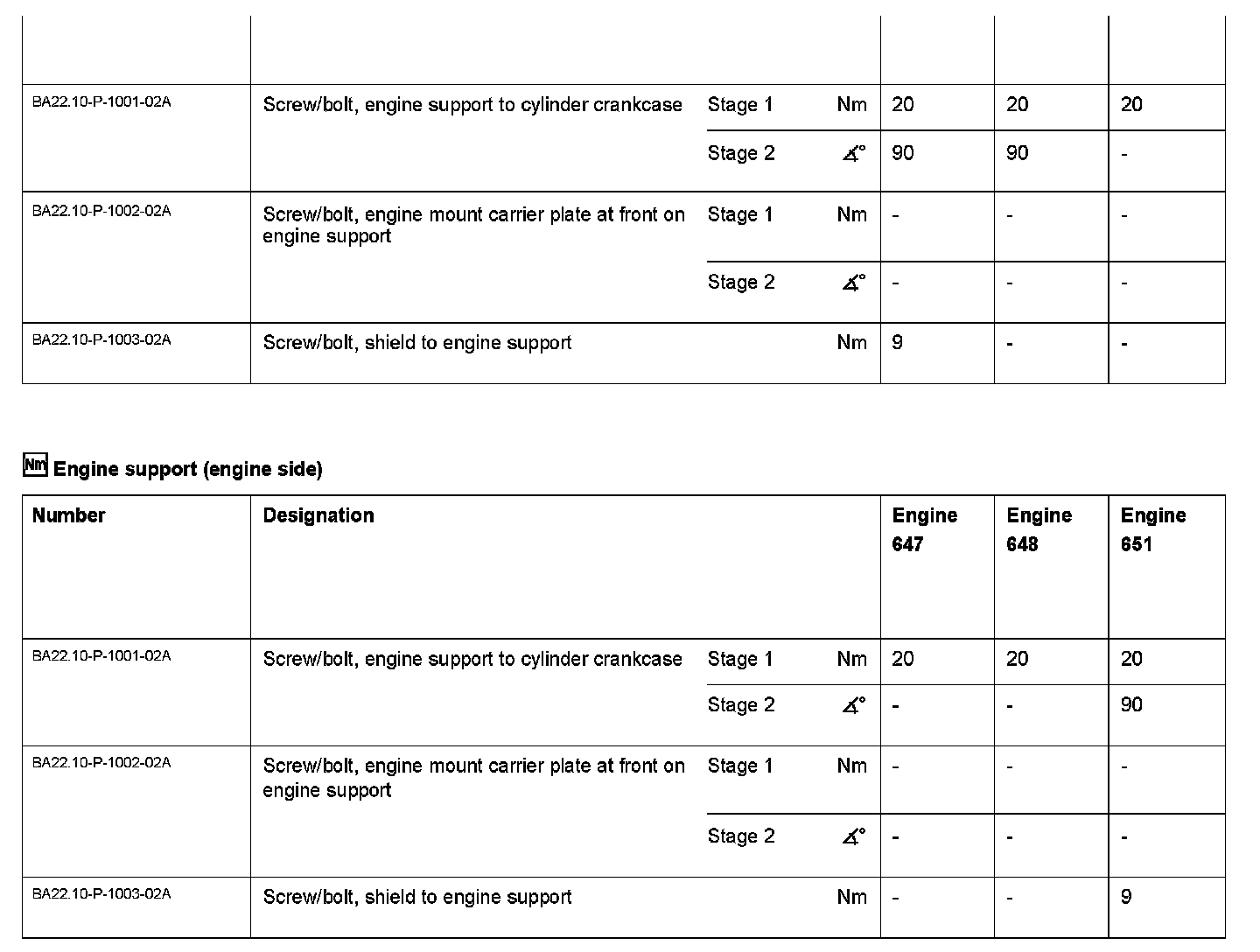

BA22.10-P-1000-02A Engine Support (Engine Side)



BA22.10-P-1000-02A Engine Support (Engine Side)
ENGINE 112, 113, 137, 152, 156, 157, 159, 271, 272, 273, 275, 276, 278, 285, 628, 629, 642, 646, 651
