Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Exhaust Manifold Nuts

Exhaust Manifold Nuts

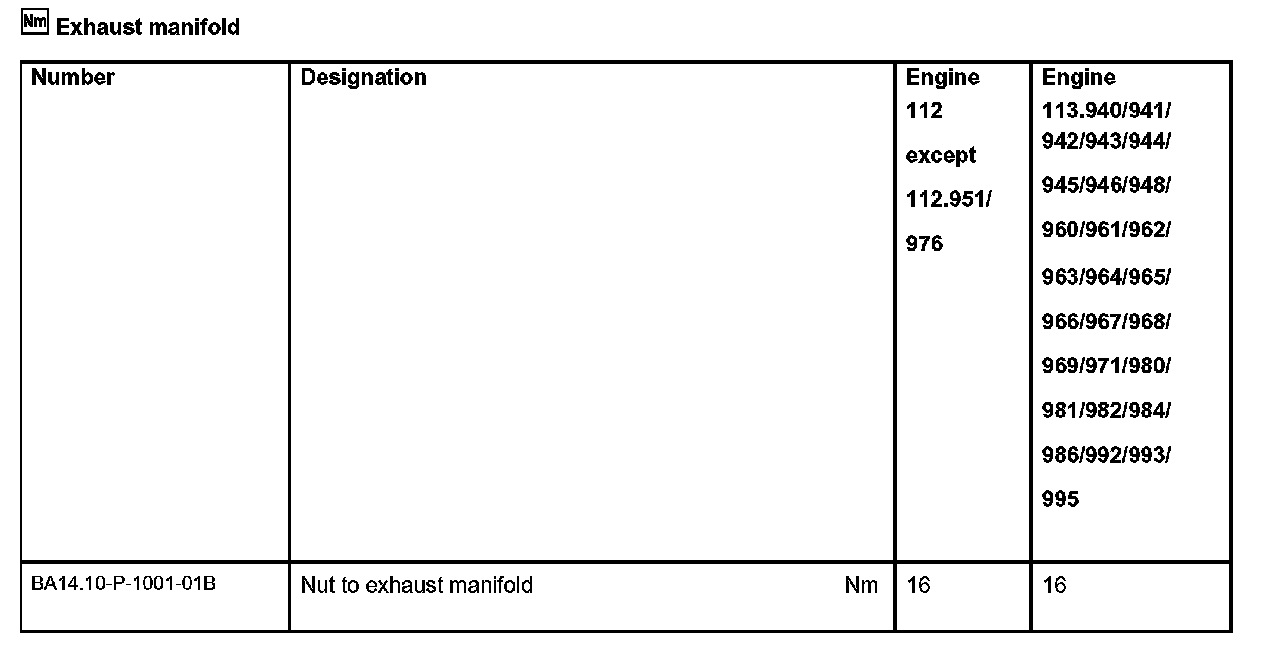

Exhaust manifold:

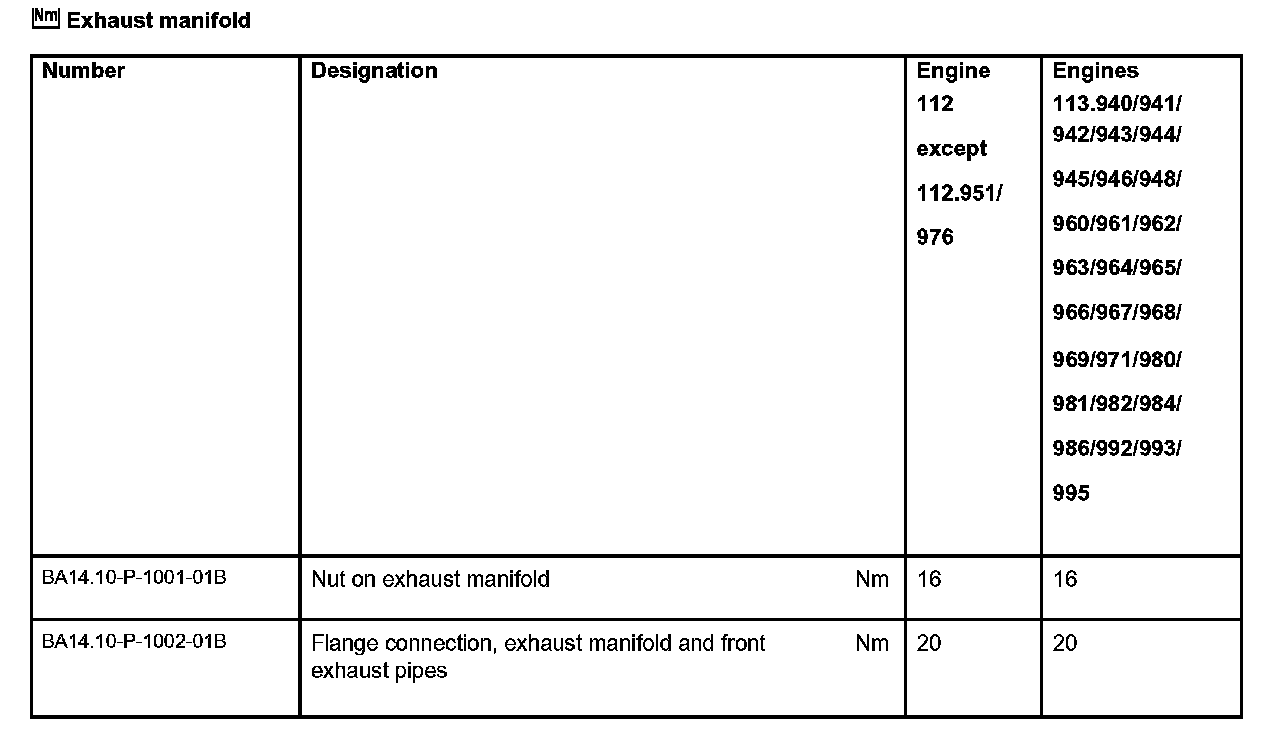

Exhaust manifold:
