Cylinder Head Bolts

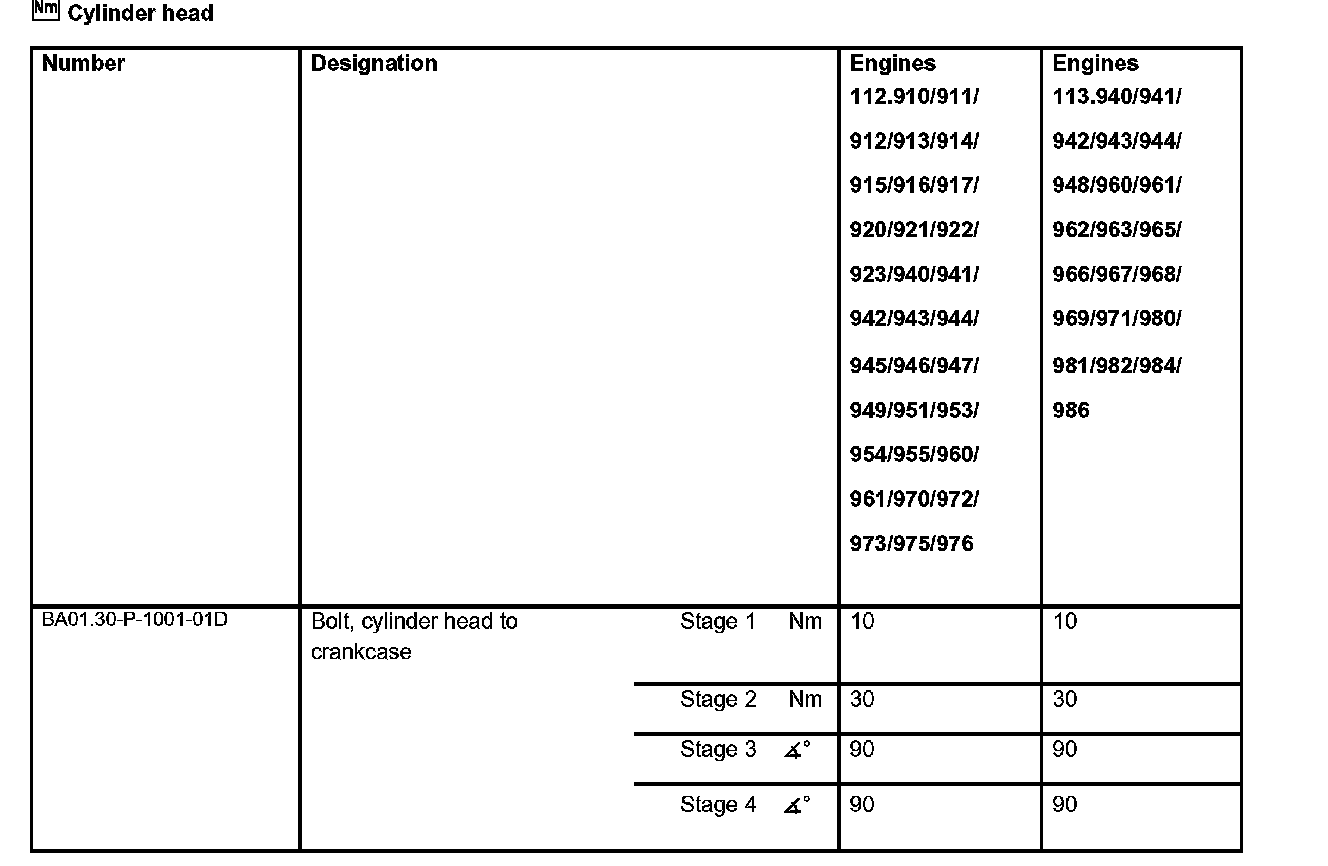

Cylinder head:

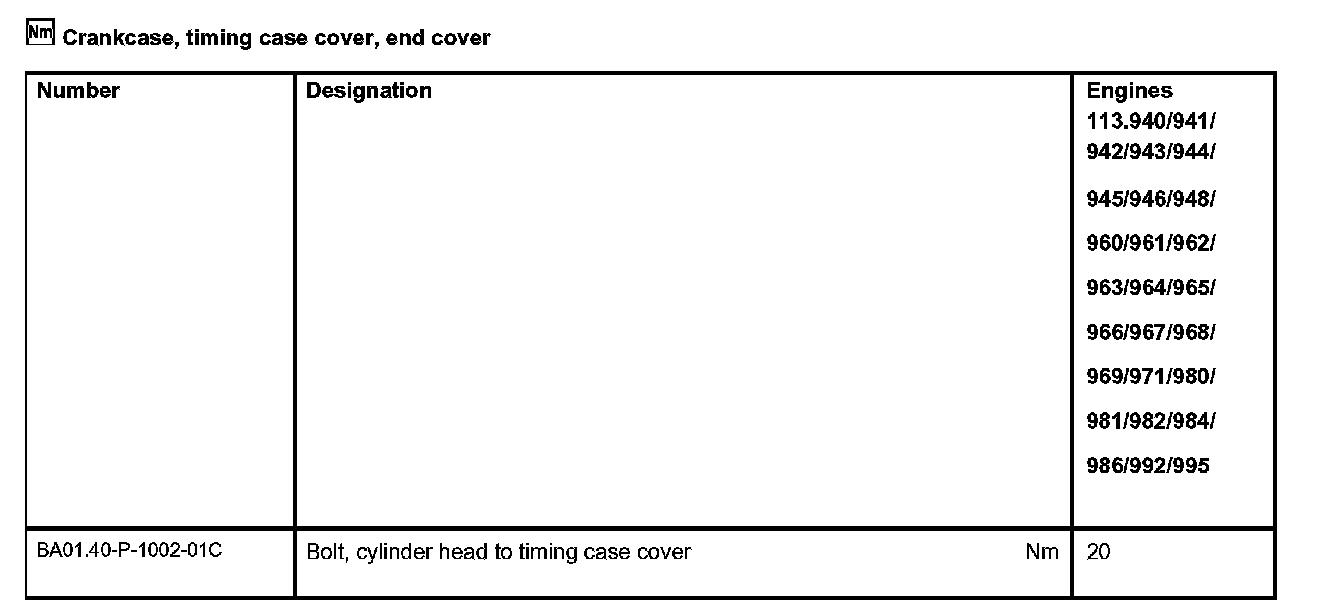

Crankcase, timing case cover, end cover:

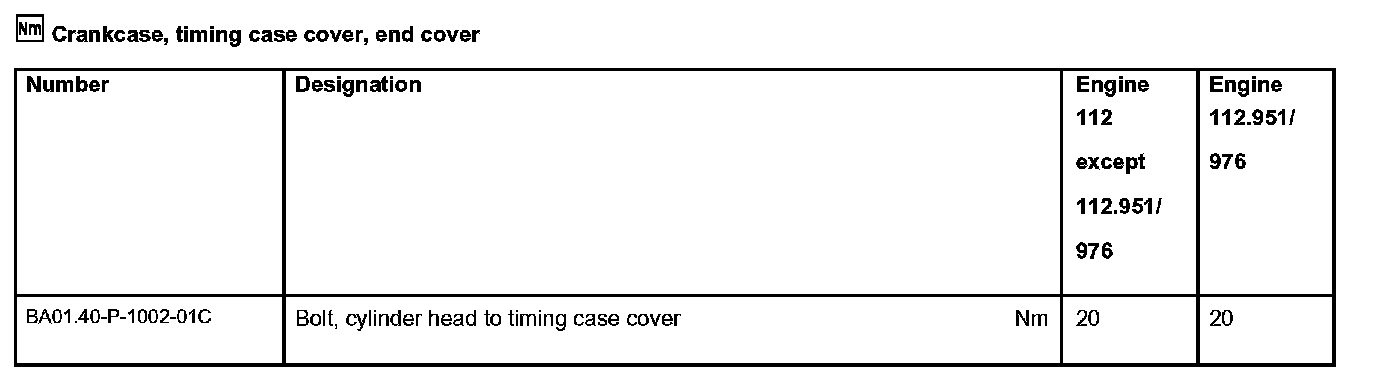

Crankcase, timing case cover, end cover:

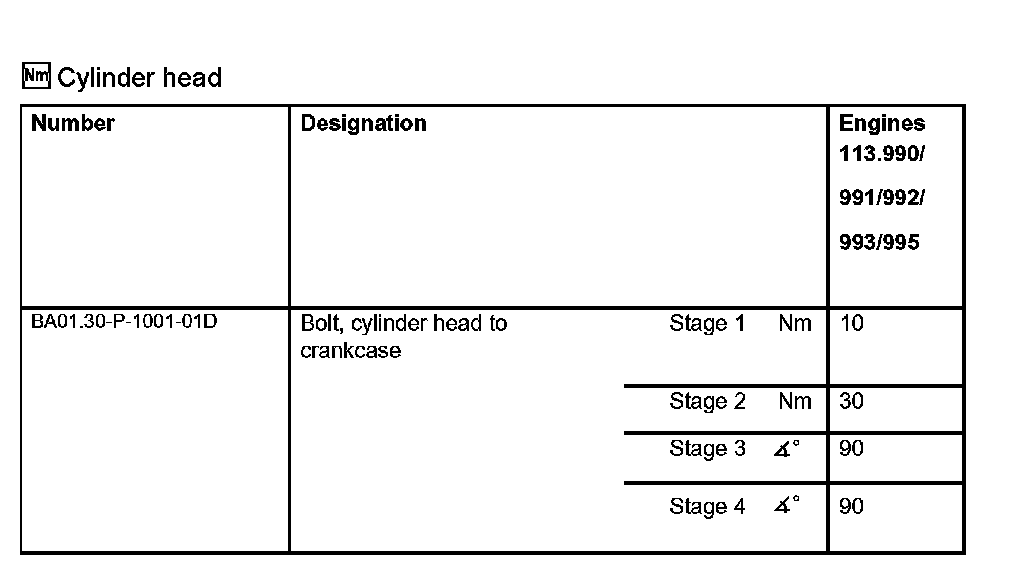

Cylinder head:

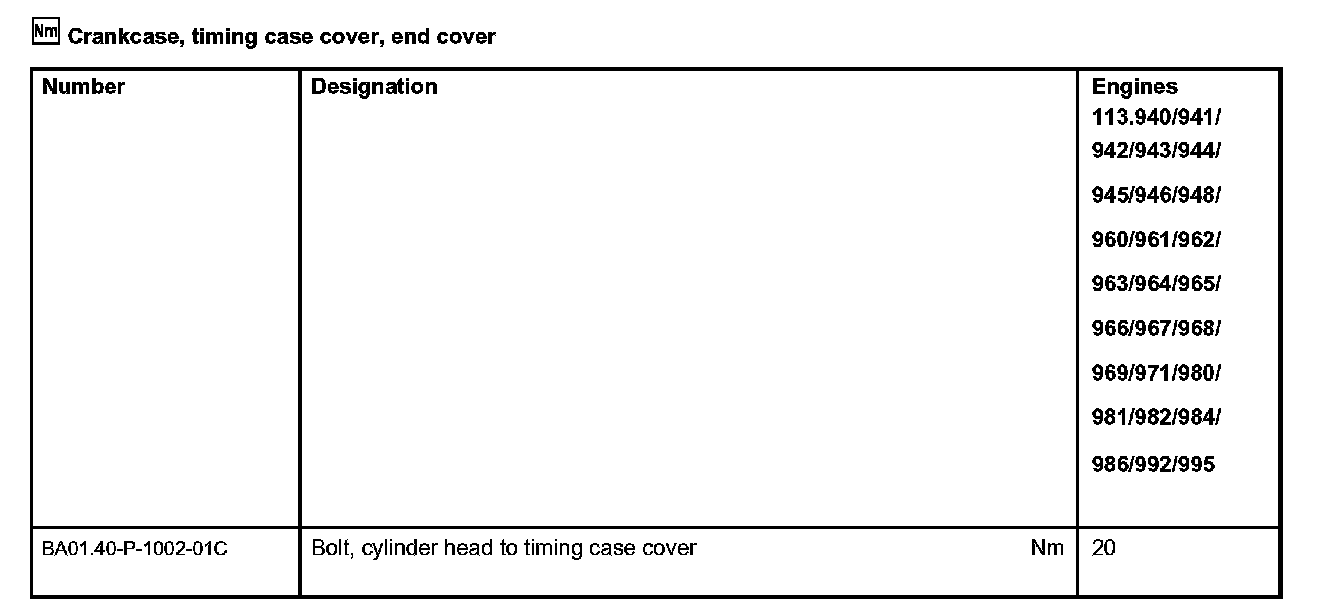

Crankcase, timing case cover, end cover:
