Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine >> BA03.10-P-1000-01E Connecting Rod

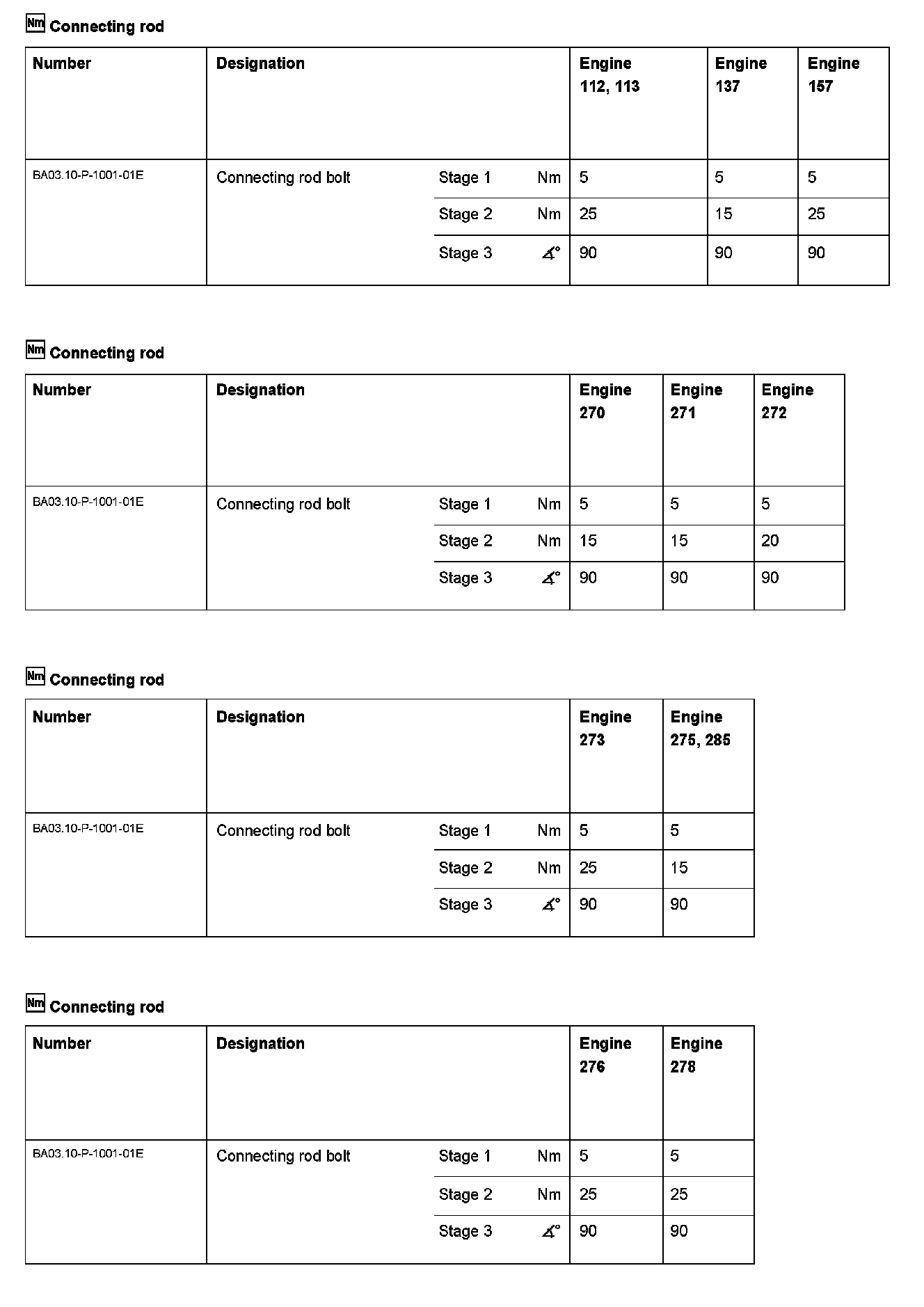

BA03.10-P-1000-01E Connecting Rod



BA03.10-P-1000-01E Connecting Rod
ENGINE 112, 113, 137, 157, 270, 271, 272, 273, 275, 276, 278, 285
