Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications

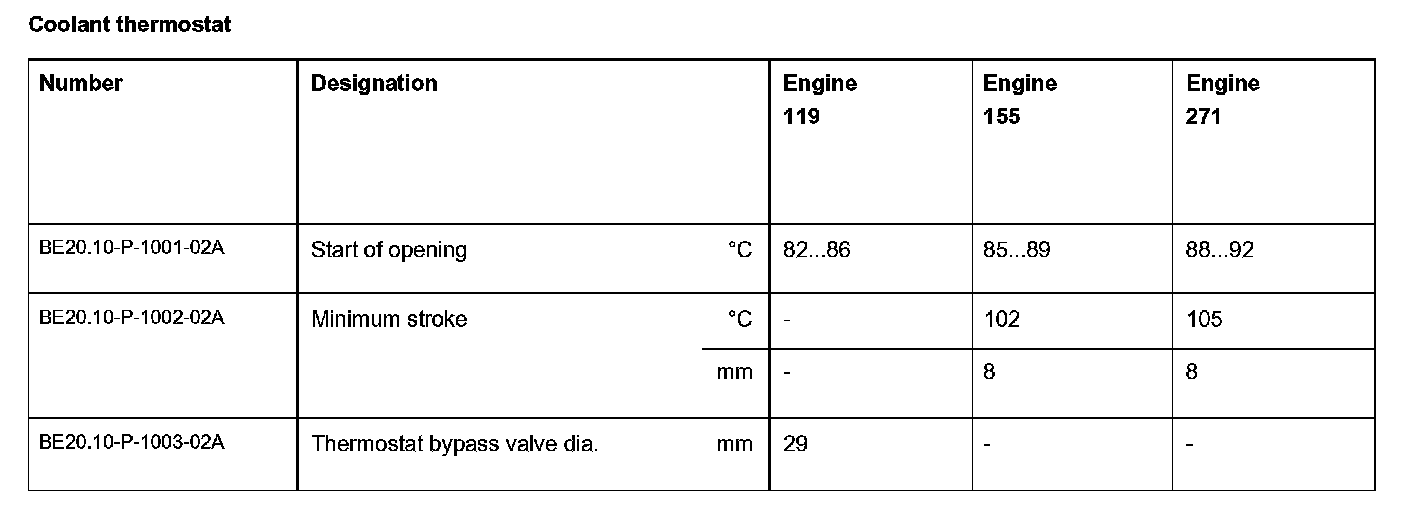

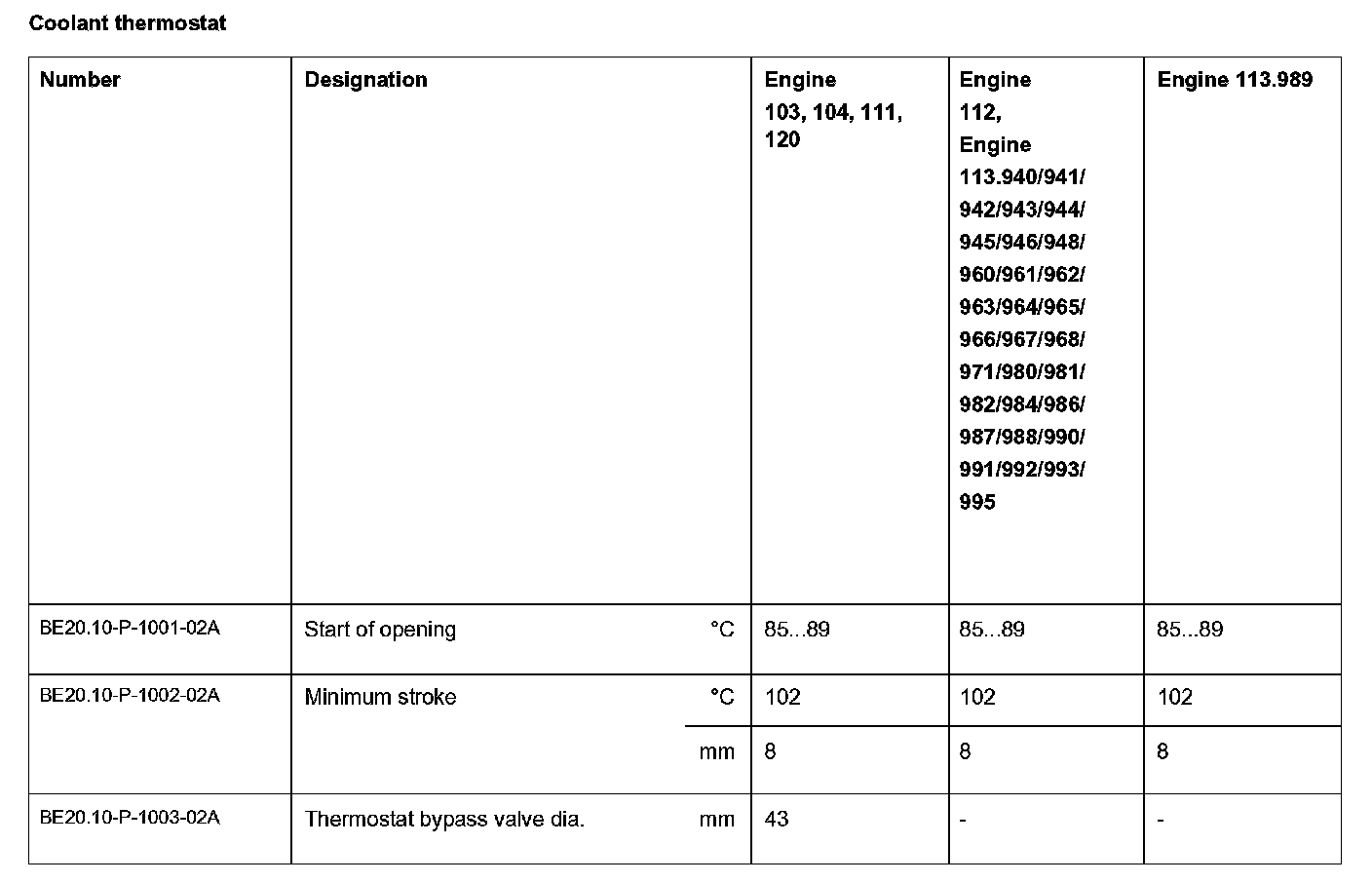

BE20.10-P-1000-02A Coolant thermostat

Coolant thermostat:




Coolant thermostat:
