CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
System Specifications
>>
BA62.30-P-1000-01A Cross Member And Front Reinforcement
BA62.30-P-1000-01A Cross Member And Front Reinforcement
BA62.30-P-1000-01A Cross Member And Front Reinforcement

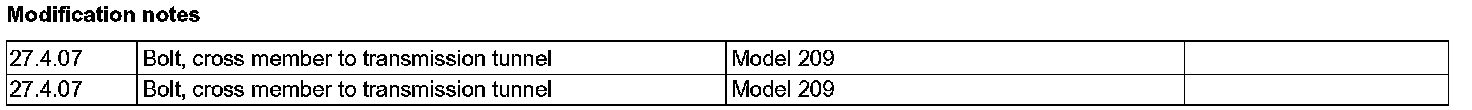

Modification Notes:

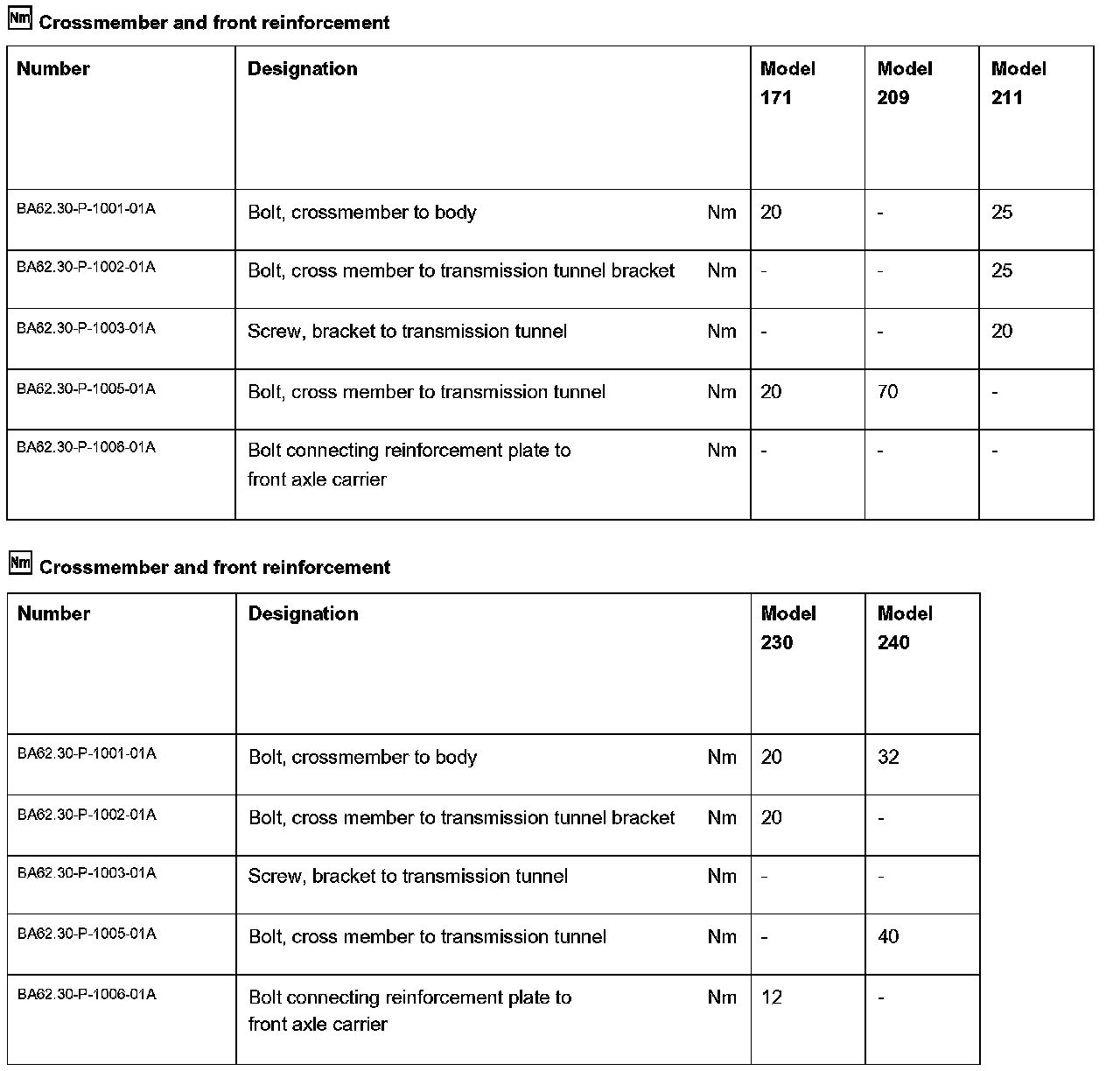

Crossmember And Front Reinforcement:
