Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> BE27.51-P-1000-01C Multi-Disk Clutch

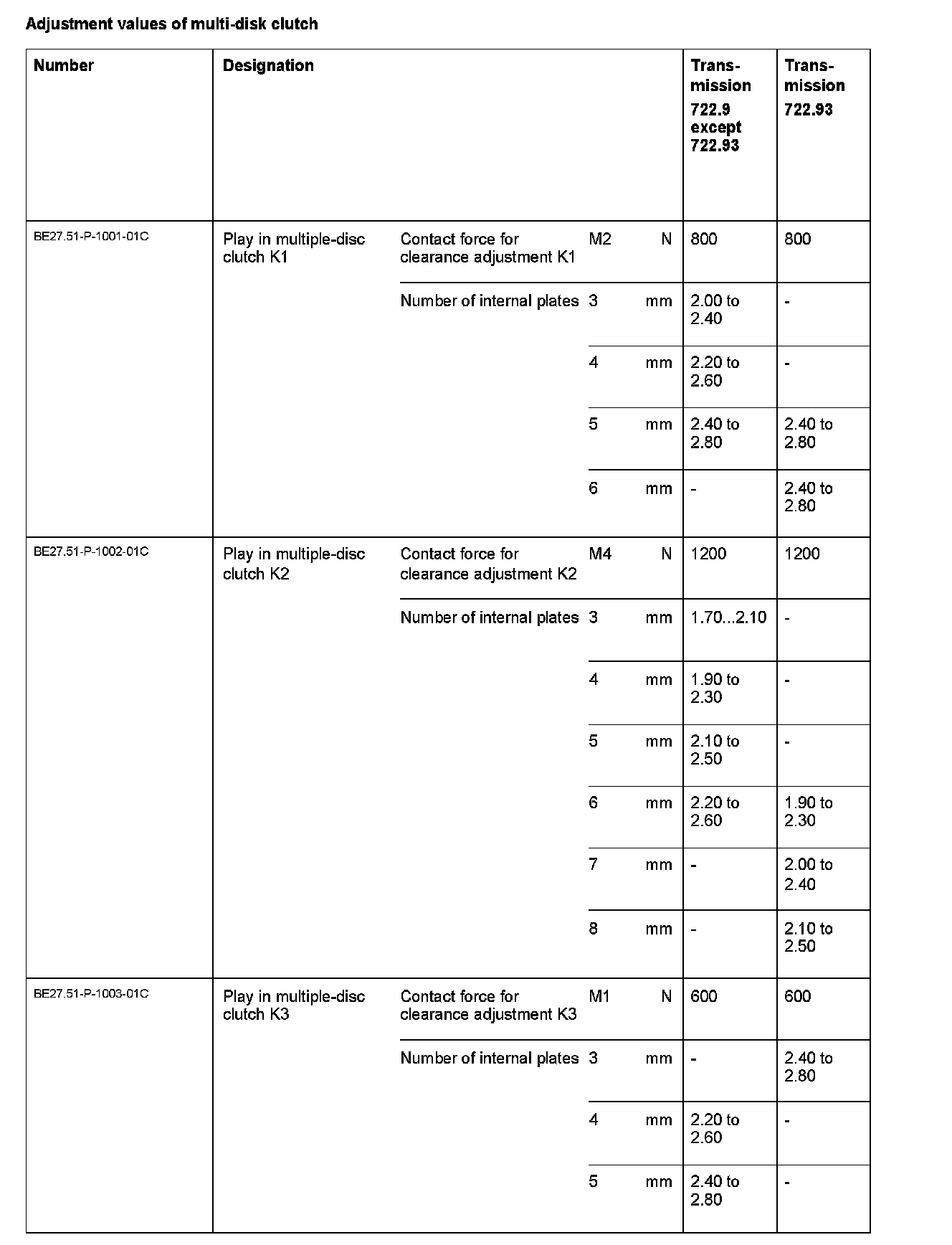

BE27.51-P-1000-01C Multi-Disk Clutch



BE27.51-P-1000-01C Multi-disk Clutch
Transmission 722.9
