Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Window Shade Switch >> Locations

Window Shade Switch: Locations



Blind Switch, Rear

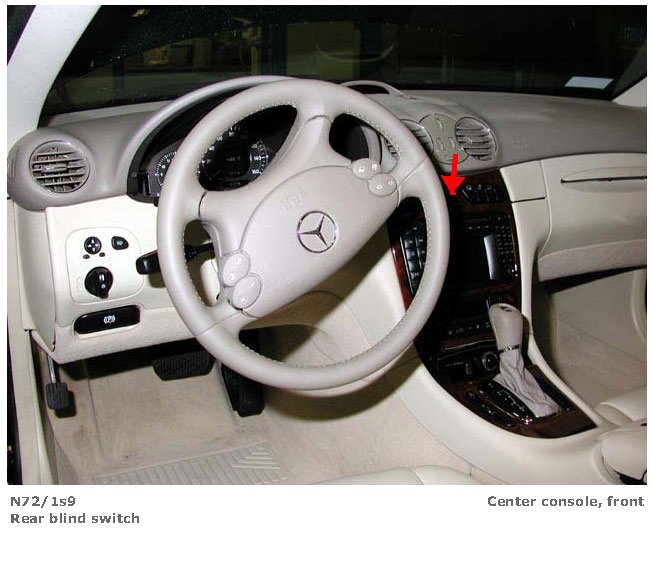

Rear Blind Switch (View 1):

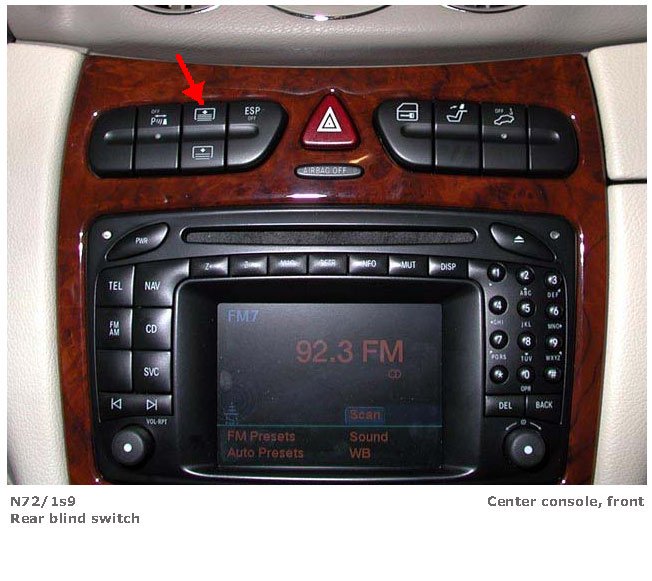

Rear Blind Switch (View 2):
