AR91.60-P-0720QBS Remove/Install Seat Occupancy Recognition Sensor



AR91.60-P-0720QBS Remove/Install Seat Occupancy Recognition Sensor
- with CODE (P98) Black Series

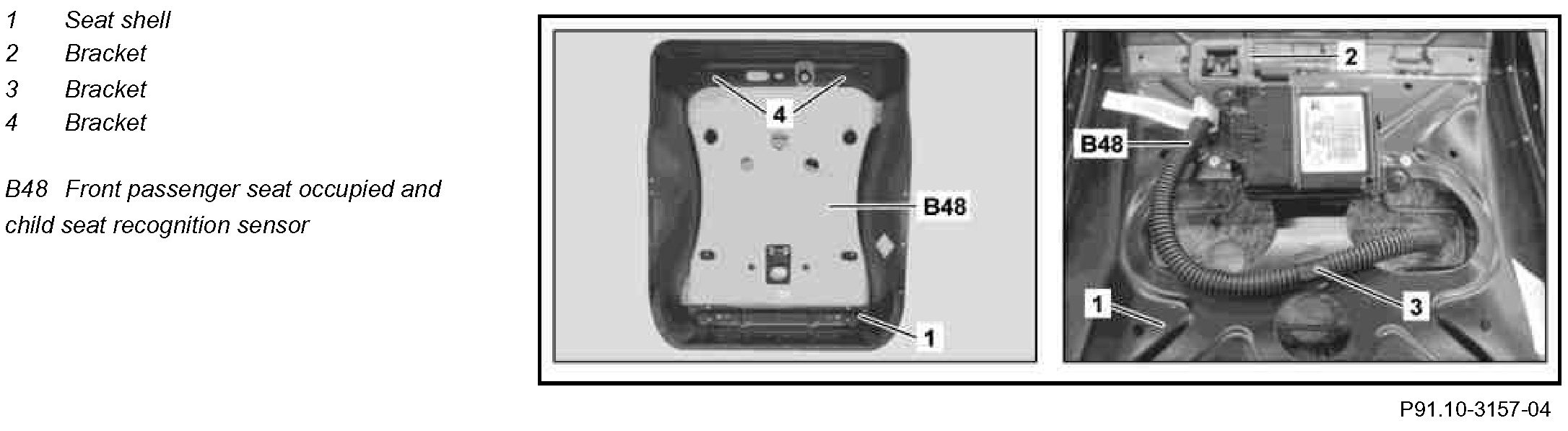

Component Identification:

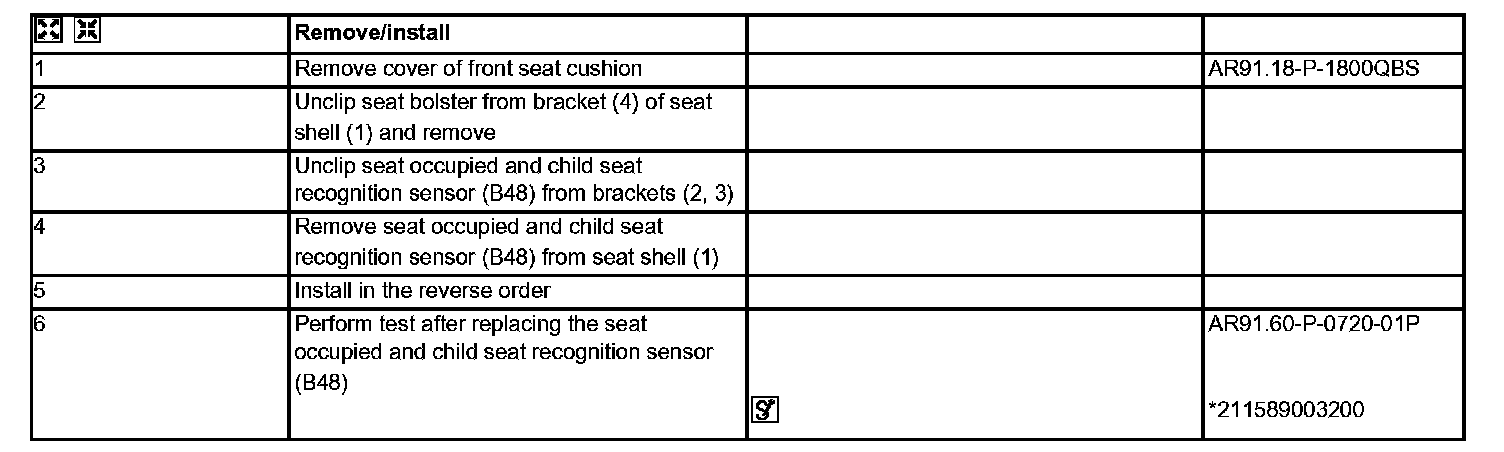

Steps 1 - 6:

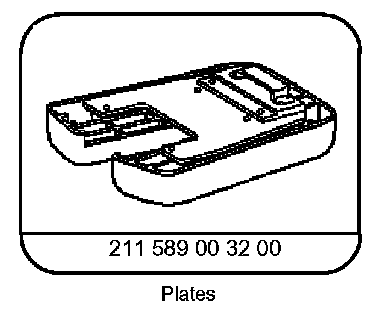

Special Tools:
