Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Service and Repair

Impact Sensor: Service and Repair

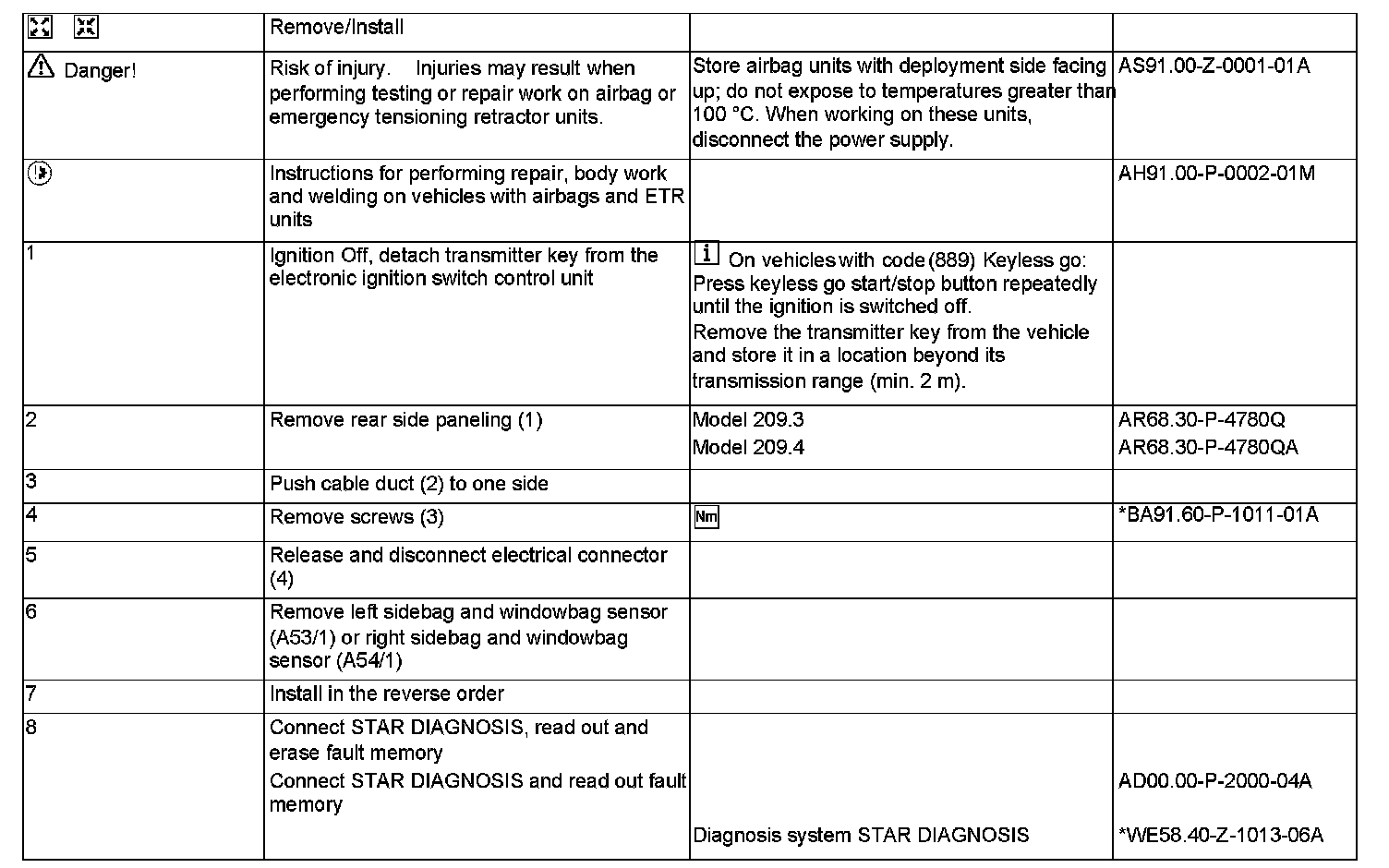

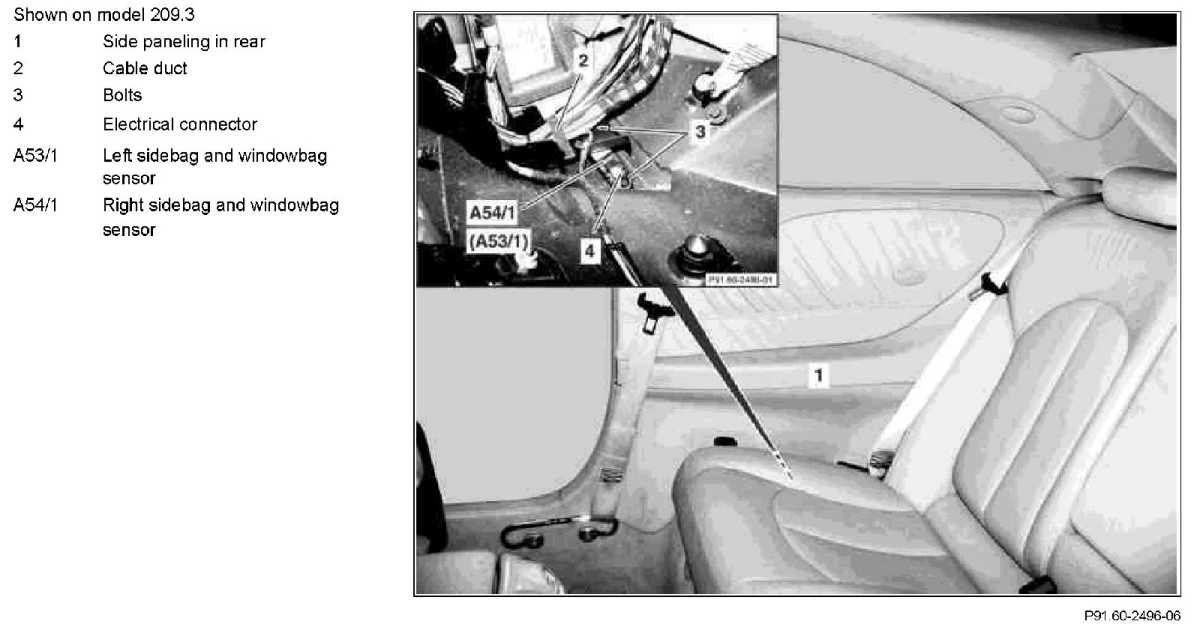

AR91.60-P-0710Q Remove/Install Sidebag Sensor

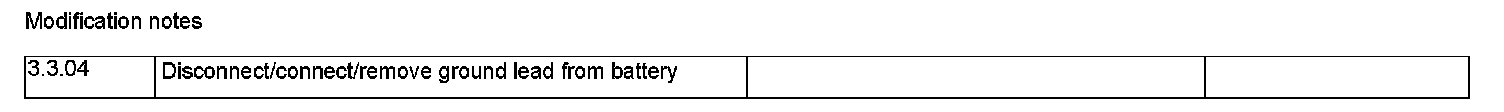

Modification Notes:

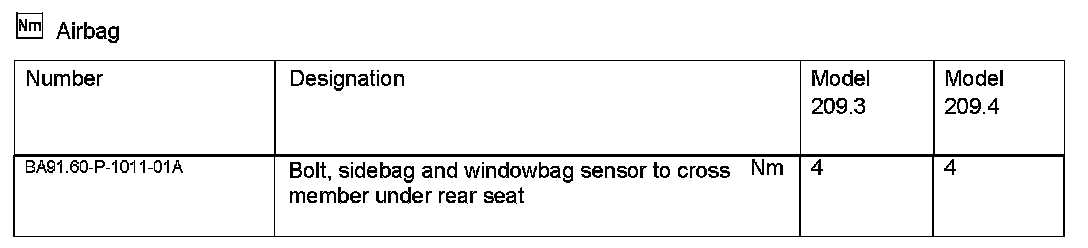

Airbag:
