FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Ignition System
>>
Ignition Switch
>>
Service and Repair
>>
Removal and Replacement
>>

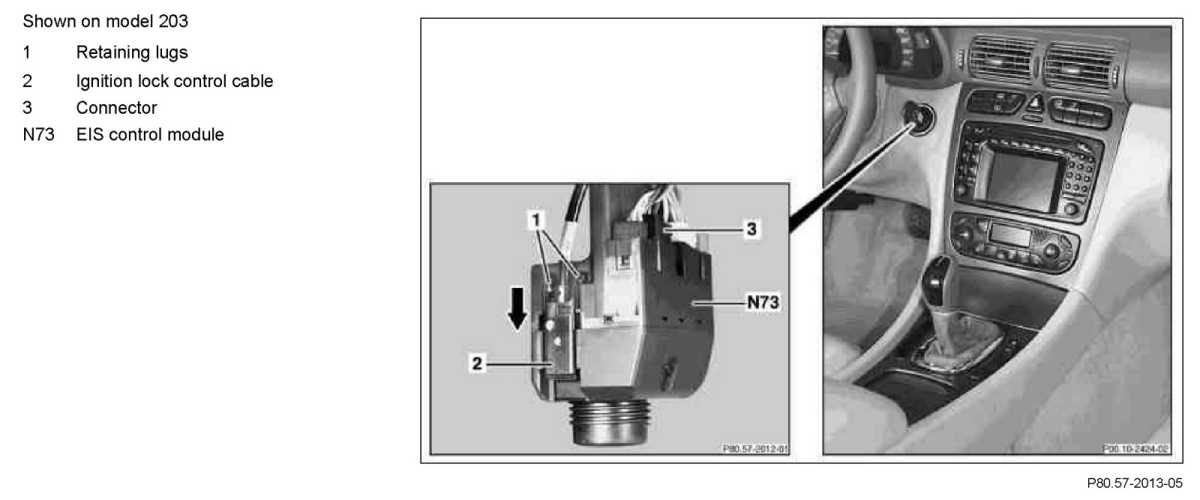

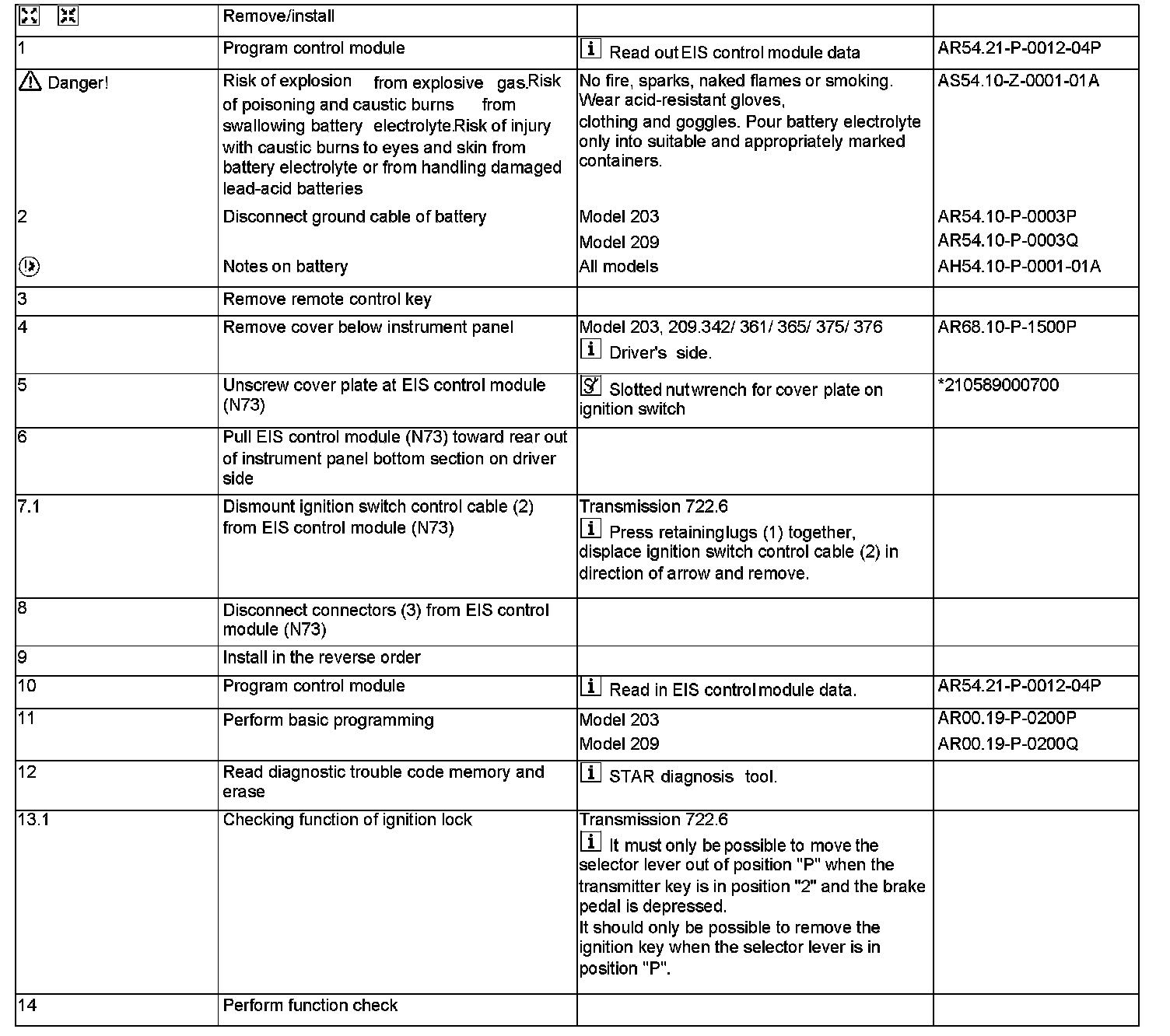

AR80.57-P-1000P Remove/Install Electronic Ignition/Starter Switch Control Module
AR80.57-P-1000P Remove/Install Electronic Ignition/Starter Switch Control Module
AR80.57-P-1000P Remove/Install Electronic Ignition/Starter Switch Control Module
