AR82.10-P-4084P Remove/Install Rear Axle Headlamp Range Adjustment Sensor

AR82.10-P-4084P Remove/Install Rear Axle Headlamp Range Adjustment Sensor
- with CODE (612) Xenon headlamp unit
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- except CODE (P98) Black Series [model 209]

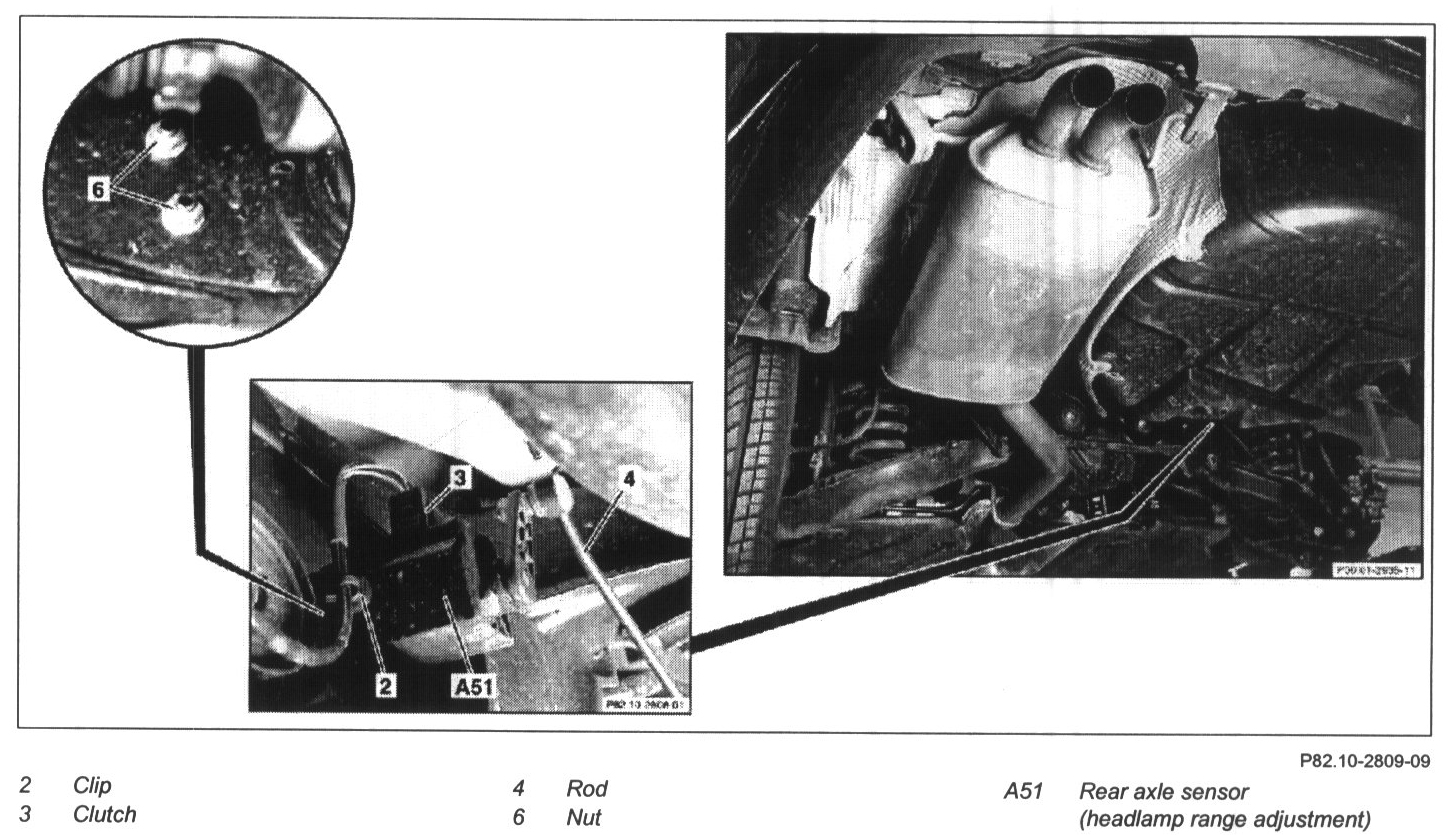

1 Press out clip (2)

NOTE: Press clip (2) off of rear axle sensor (headlamp range adjustment) (A51)

2 Disconnect connector (3)
3 Press rod (4) off of ball pivot (5)
4 Unscrew nuts (6)

NOTE: Nuts for amount (9) on rear axle carrier

5 Remove rear axle sensor (headlamp range adjustment) (A51)

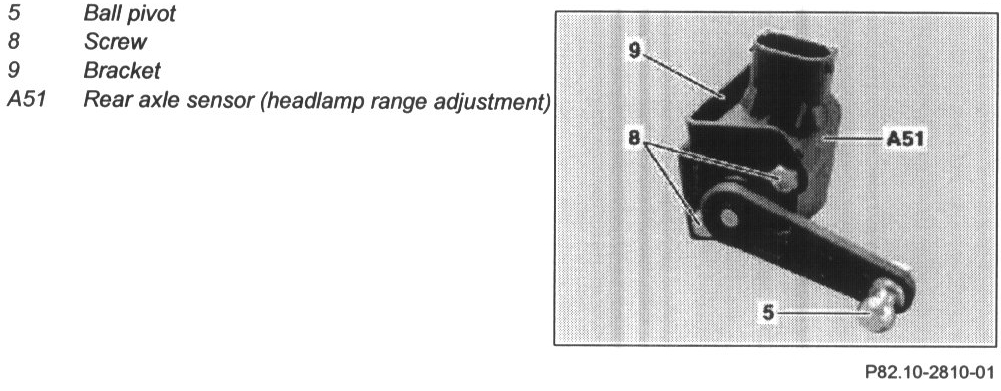

6 Unscrew ball pivot (5)
7 Unscrew screws (8)
8 Remove mount (9)

NOTE: Remove mount (9) from rear axle sensor (headlamp range adjustment) (A51)

9 Install in the reverse order
