AR82.10-P-4083Q Remove/Install Headlamp Range Adjustment Front Axle Sensor



AR82.10-P-4083Q Remove/Install Headlamp Range Adjustment Front Axle Sensor
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- except CODE (P98) Black Series

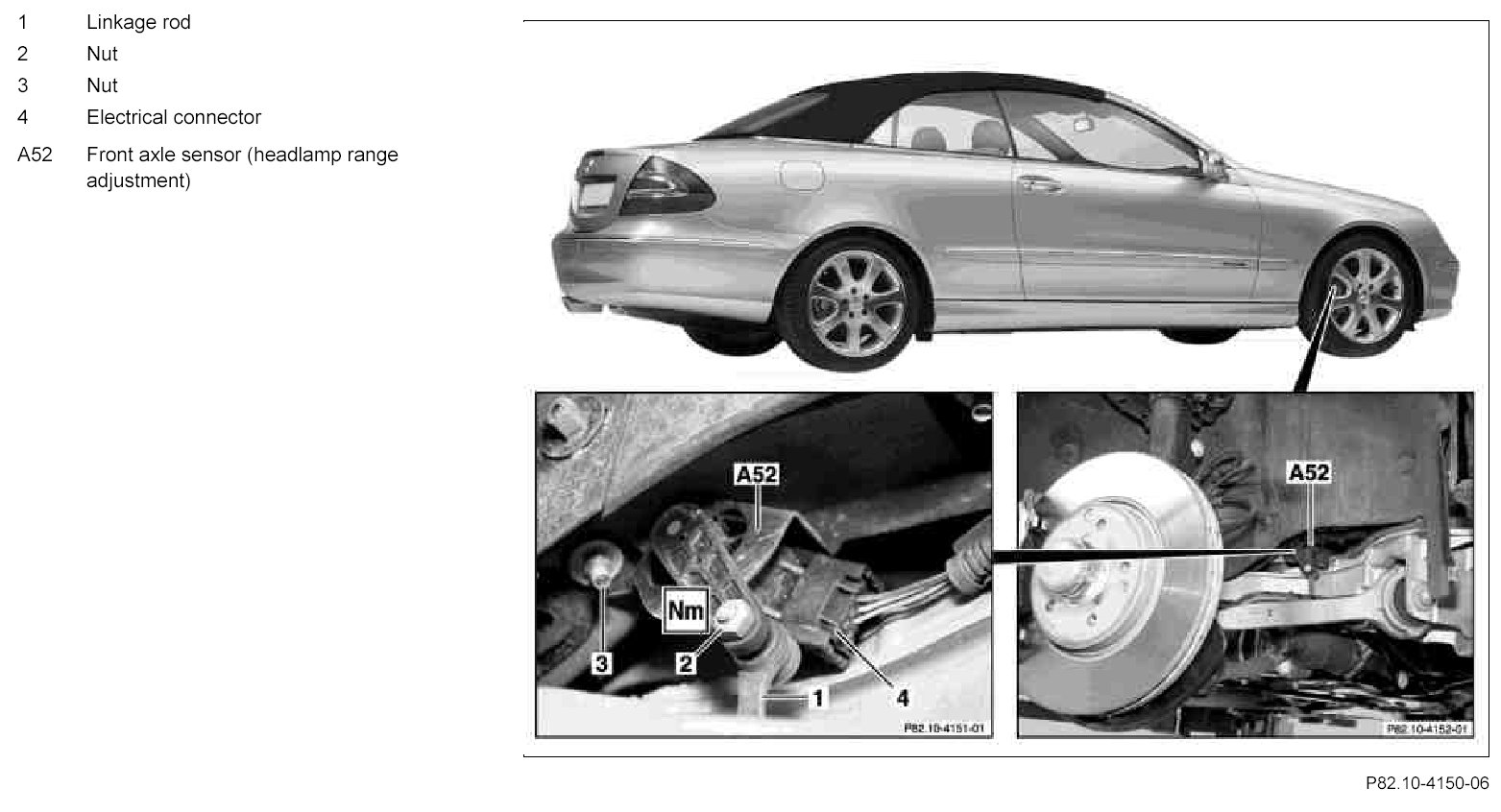

Component Identification:

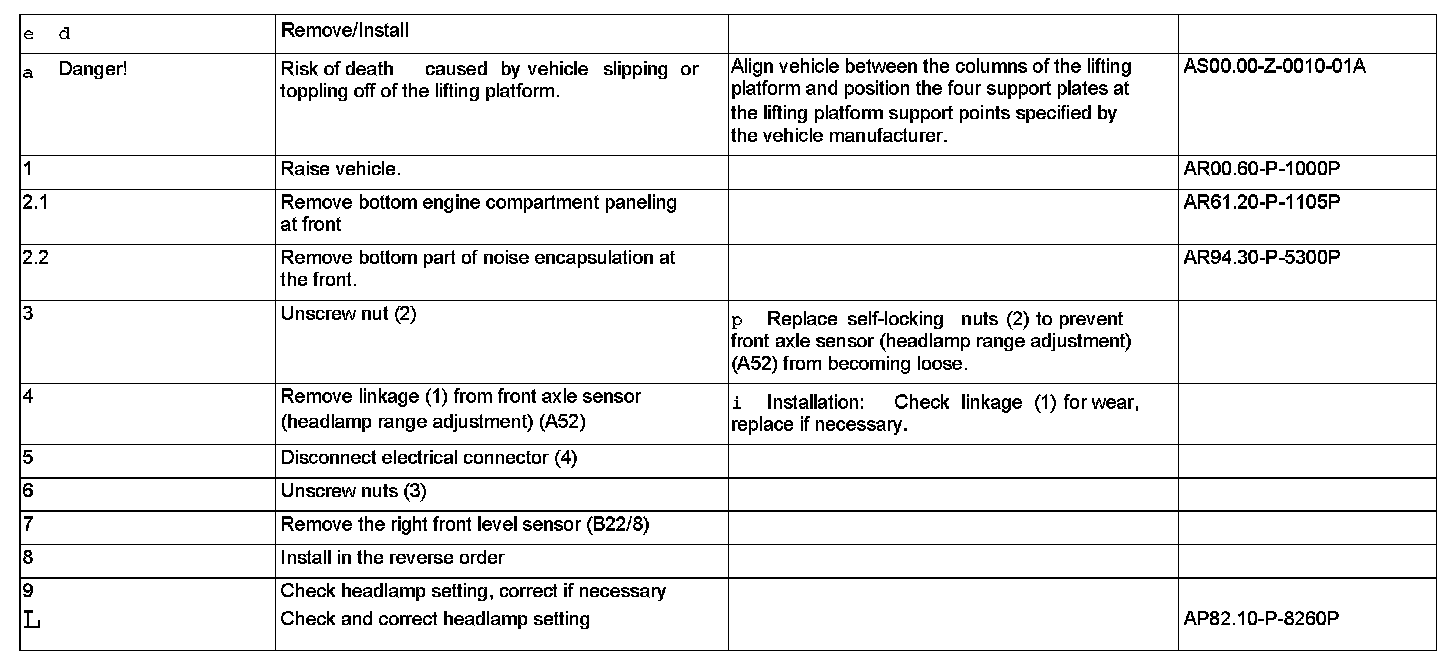

Steps 1 - 9:
