Outside Temperature Display Sensor: Locations



Ambient Temperature Display Temperature Sensor

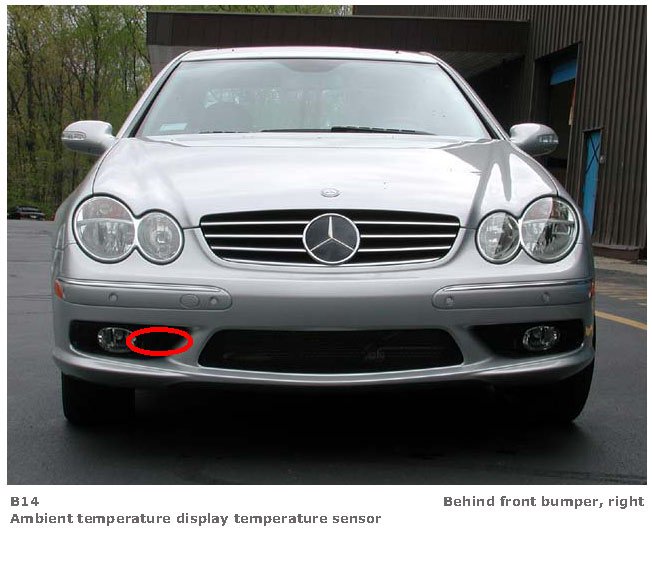

Ambient Temperature Display Temperature Sensor (View 1):

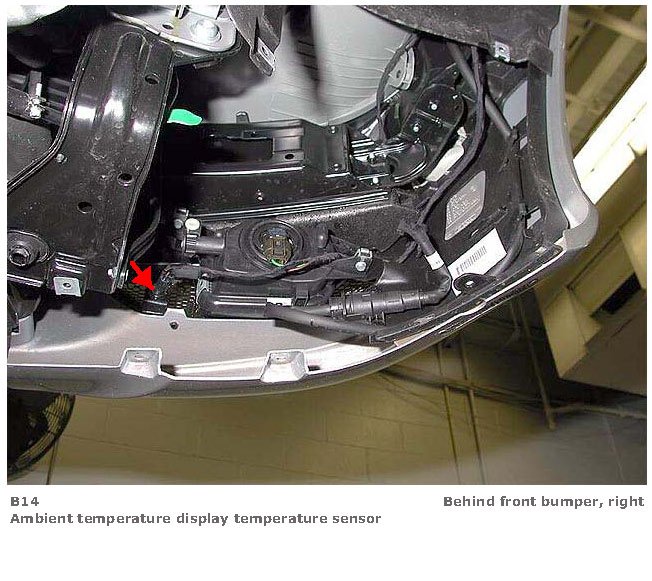

Ambient Temperature Display Temperature Sensor (View 2):
