Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Evaporator Temperature Sensor / Switch >> Locations

Evaporator Temperature Sensor / Switch: Locations



Evaporator Temperature Sensor

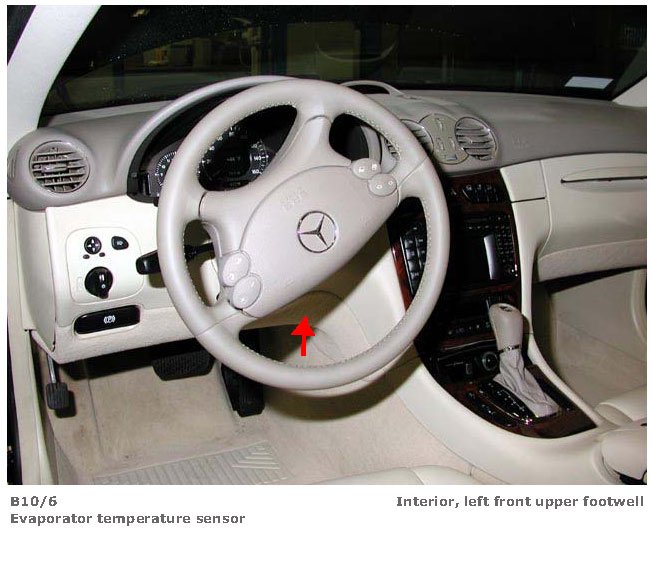

Evaporator Temperature Sensor (View 1):

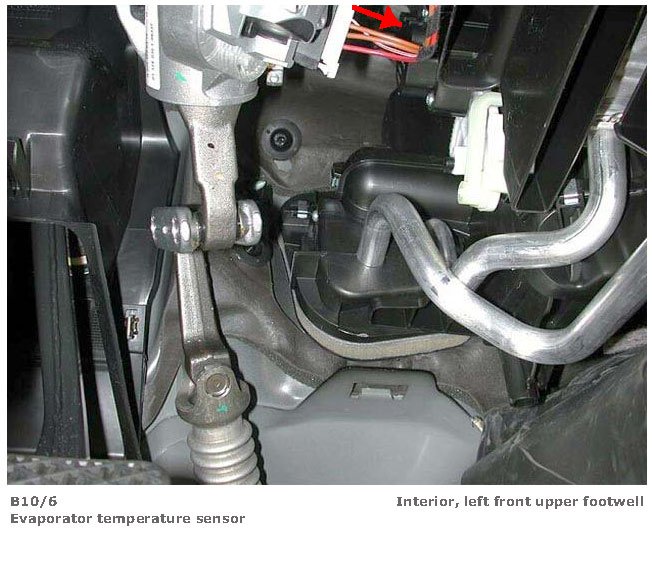

Evaporator Temperature Sensor (View 2):
