FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Engine
>>
Oil Level Sensor
>>
Description and Operation
>>

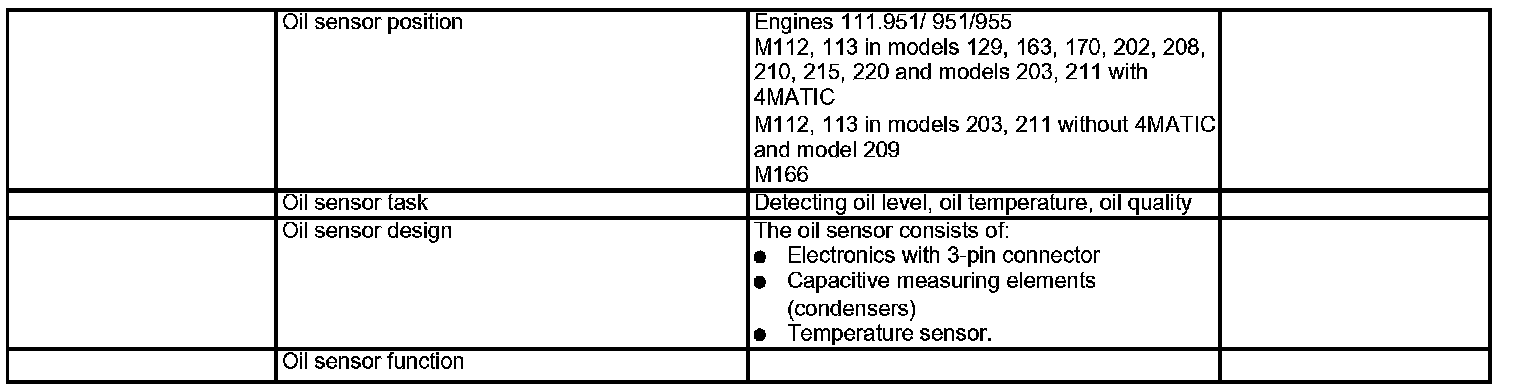

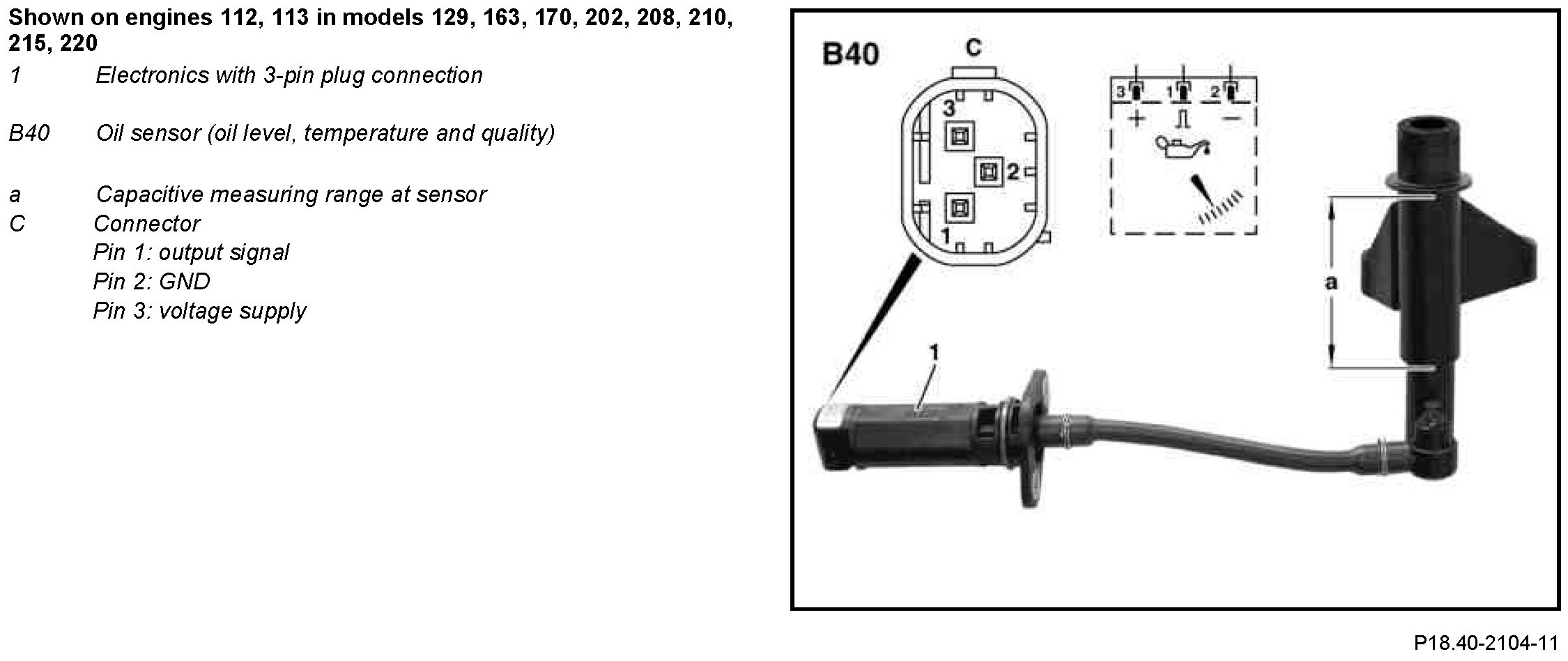

GF18.40-P-4111A Oil Sensor - Location/Task/Design/Function
GF18.40-P-4111A Oil Sensor - Location/Task/Design/Function
GF18.40-P-4111A Oil Sensor - Location/Task/Design/Function
