Vacuum/Pressure Pump Switch: Description and Operation

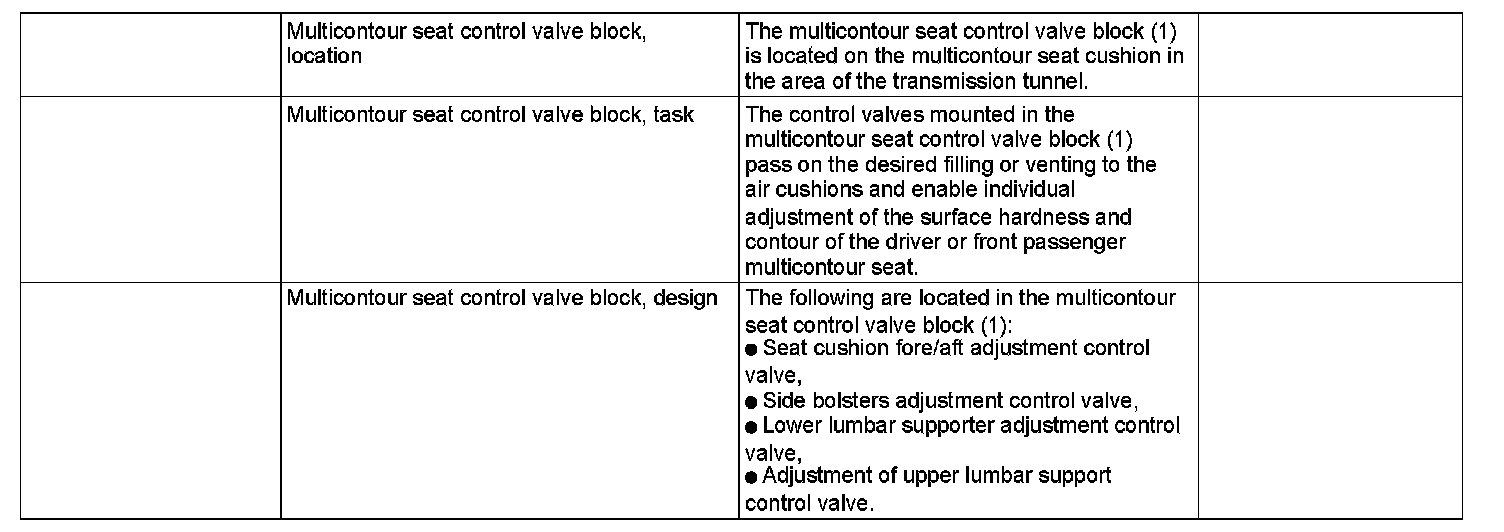

GF91.25-P-2125Q Multicontour Seat Control Valve Block, Location/Task/Design
- with CODE (404a) Left multi-contour seat
- with CODE (405a) Right multi-contour seat

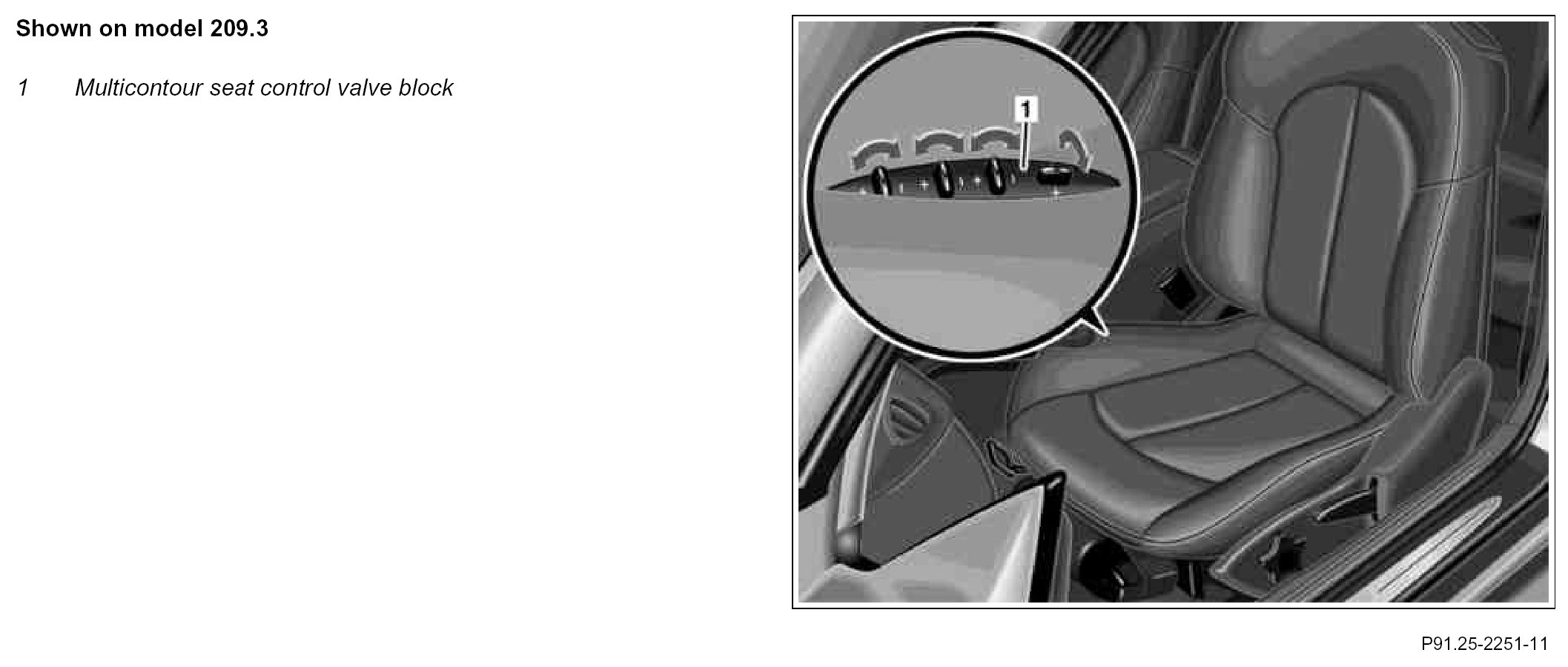

Component Identification:
