Power Mirror Switch
>>
Description and Operation
Power Mirror Switch: Description and Operation

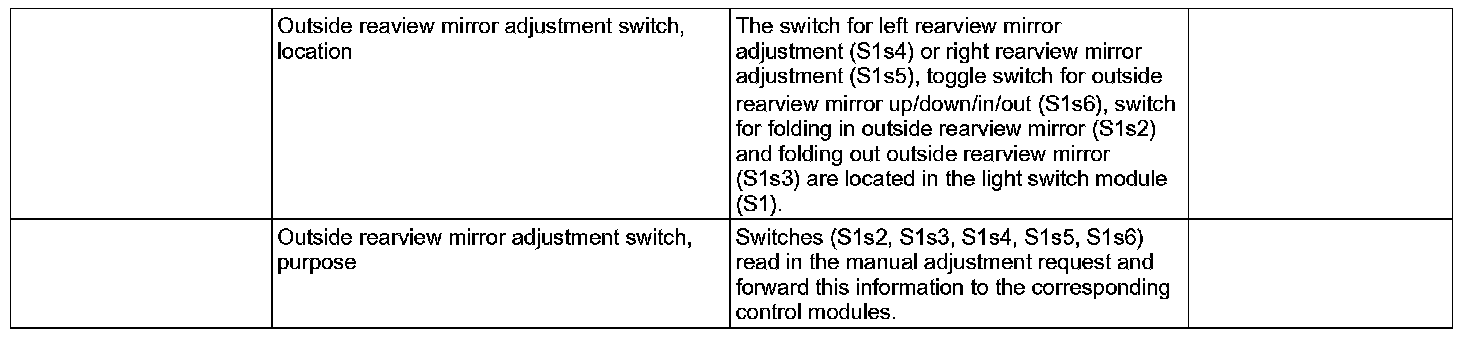

GF88.79-P-3001Q Outside Rearview Mirror Adjustment Switch, Location/Purpose

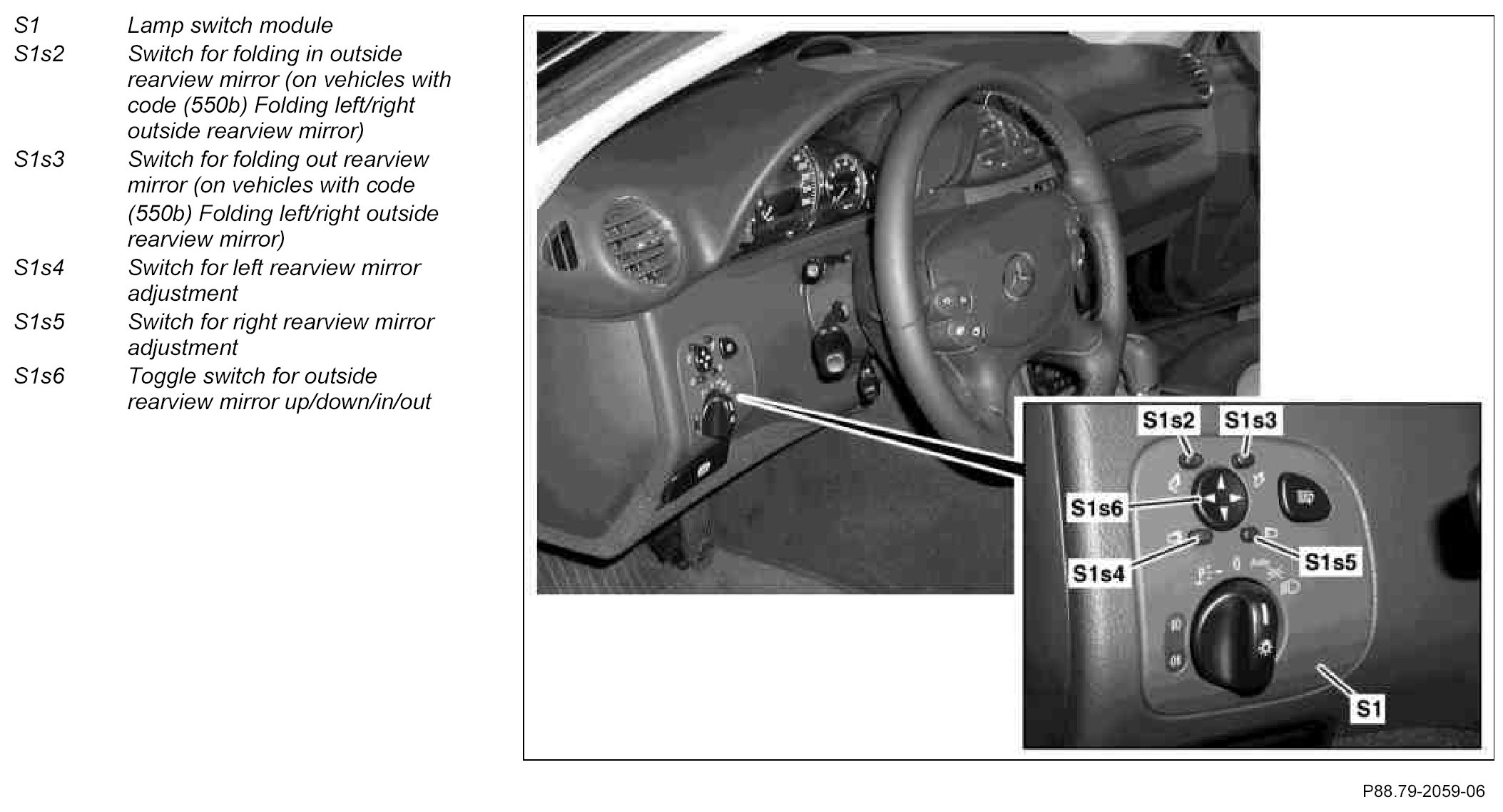

Component Identification:
