AZ54.65-P-0001-06Q Route and Connect Wiring Harness

AZ54.65-P-0001-06Q Route And Connect Wiring Harness

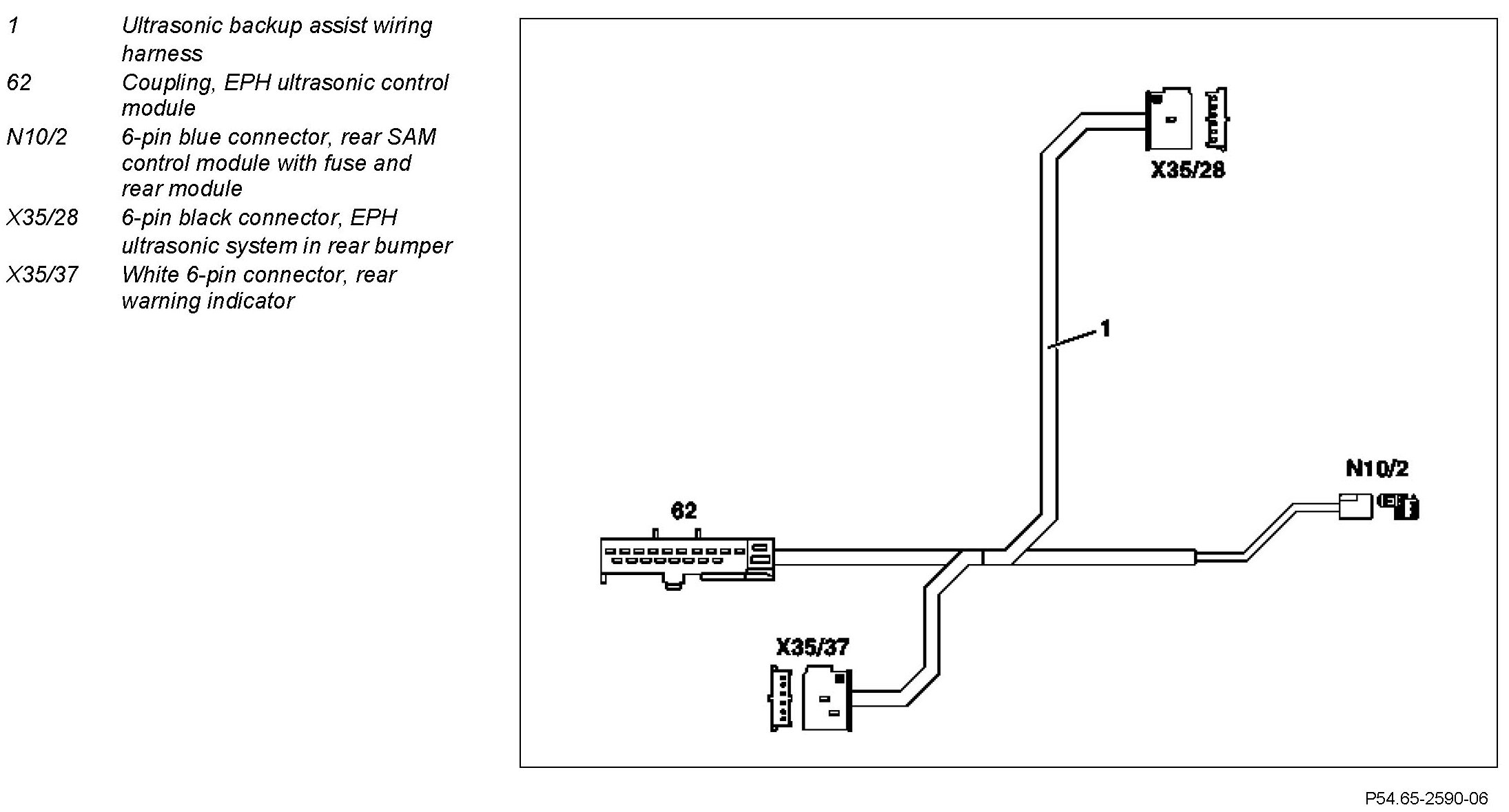

Component Identification:

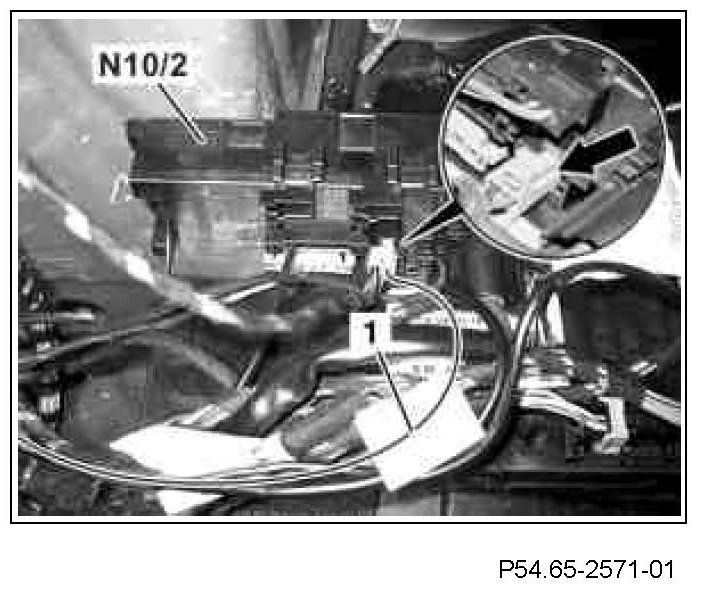

1. Guide lacing from wiring harness for ultrasonic backup assist (1) with 6-pin blue coupling to the rear SAM control module with fuse and relay module (N10/2) and contact in the plug location identified with blue (arrow).

Fasten lacing to existing cables with cable straps.

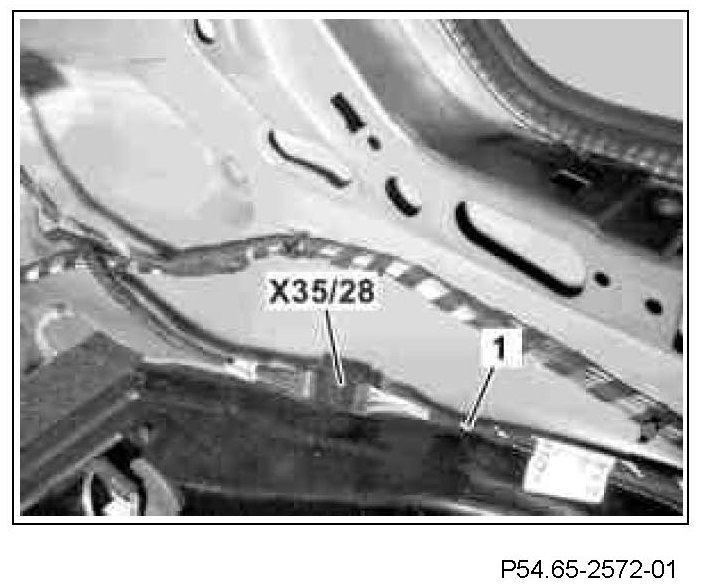

2. Route lacing of the wiring harness for ultrasonic backup assist (1) with 6-pin black coupling along existing cables to the EPH connector for the rear bumper (X35/28) and connect to the bumper coupling.

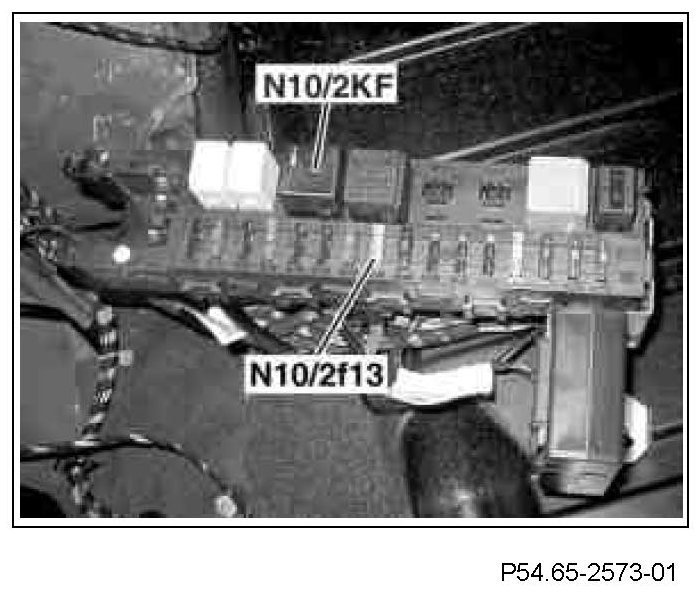

3. Fit fuse 13 (N10/2f13) with a 5A fuse.

Check whether relay 1 circuit 15R (N10/2kF) is inserted in plug location F, if not, connect relay

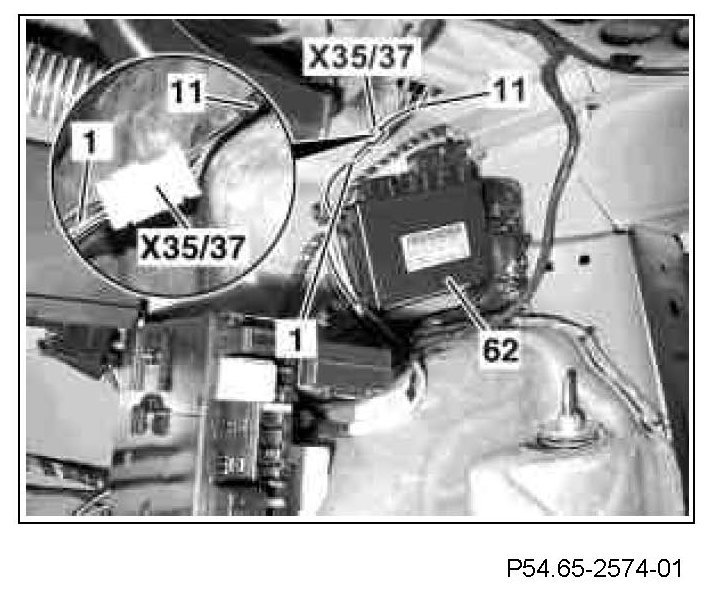

4. Route the lacing of wiring harness (1) from the EPH ultrasonic control module (62) with white coupling to rear warning display connector (X35/37) and connect to the wiring harness for warning display (11)
