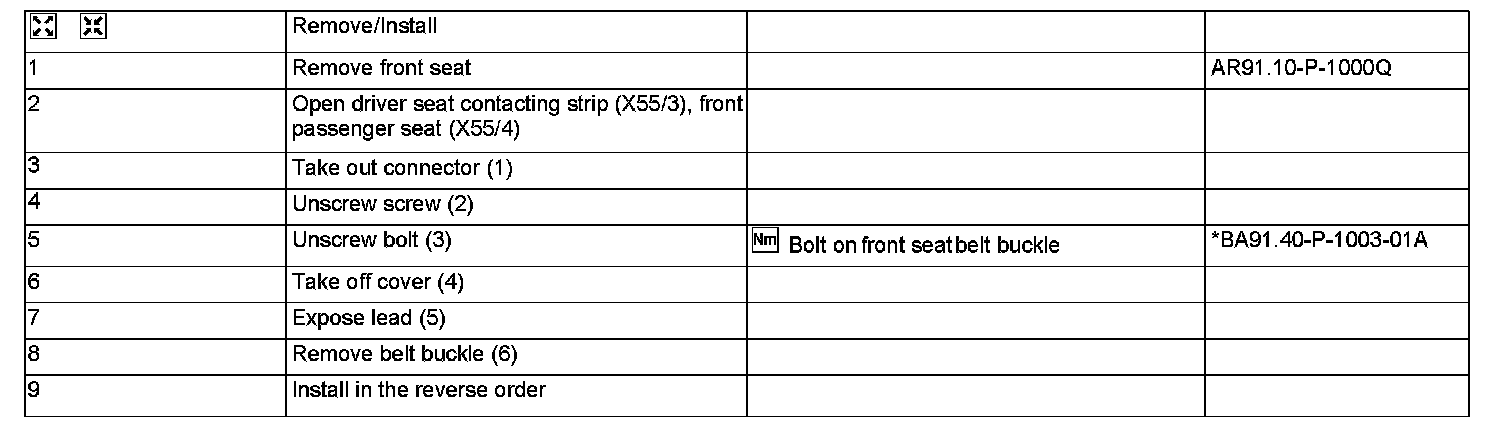

AR91.40-P-1515Q Remove/Install Belt Buckle (Front Seat)
AR91.40-P-1515Q Remove/Install Belt Buckle (Front Seat)
AR91.40-P-1515Q Remove/Install Belt Buckle (Front Seat)

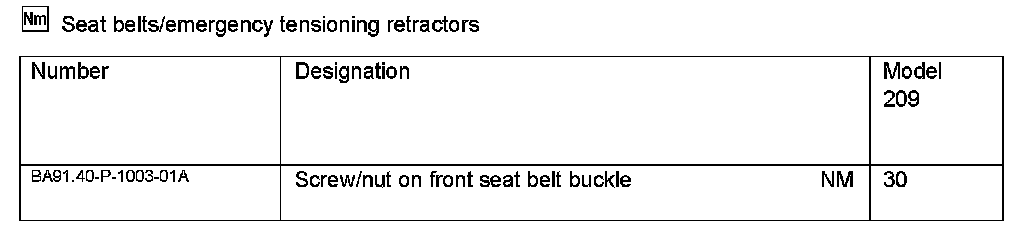

Seat Belts/Emergency Tensioning Retractors:
