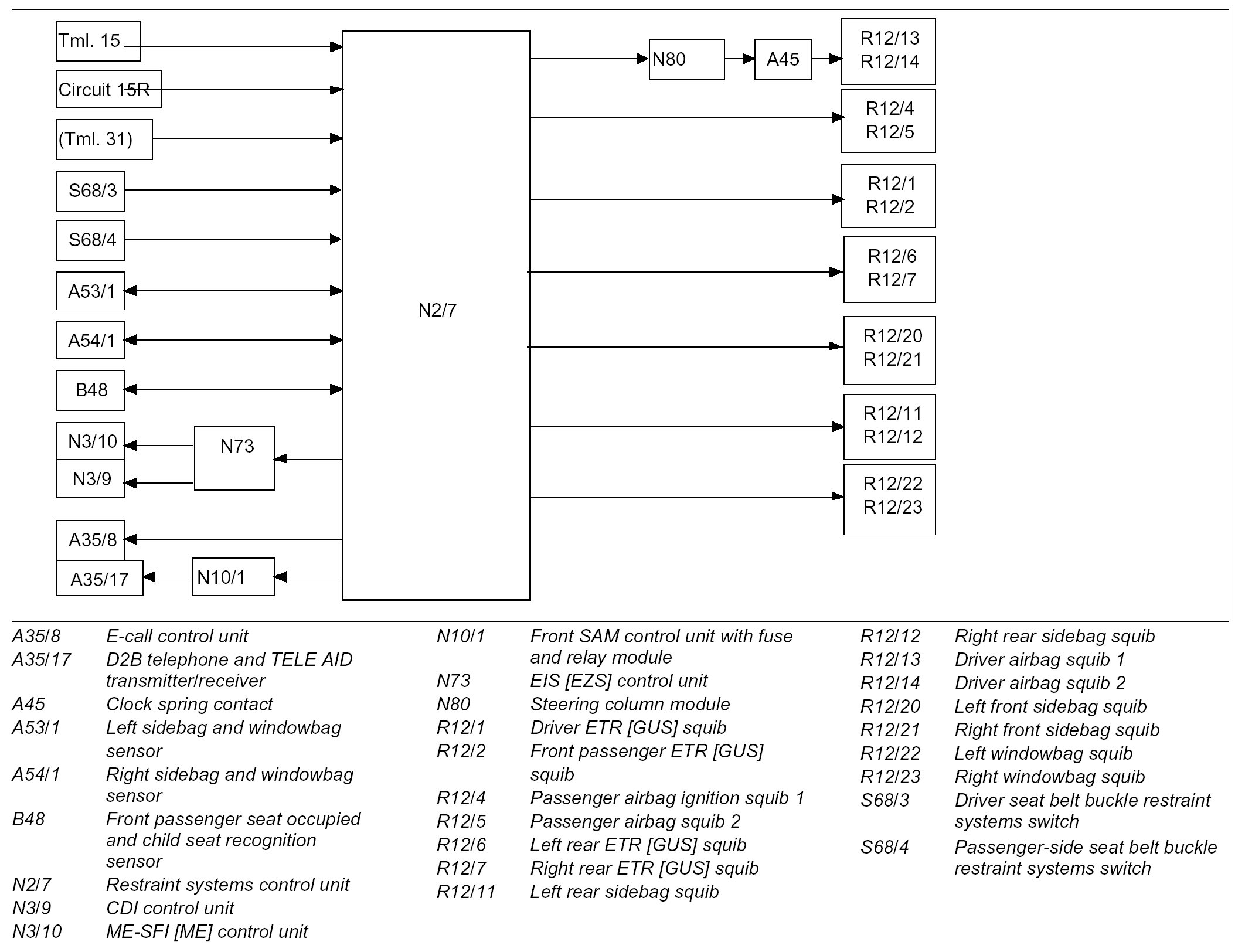

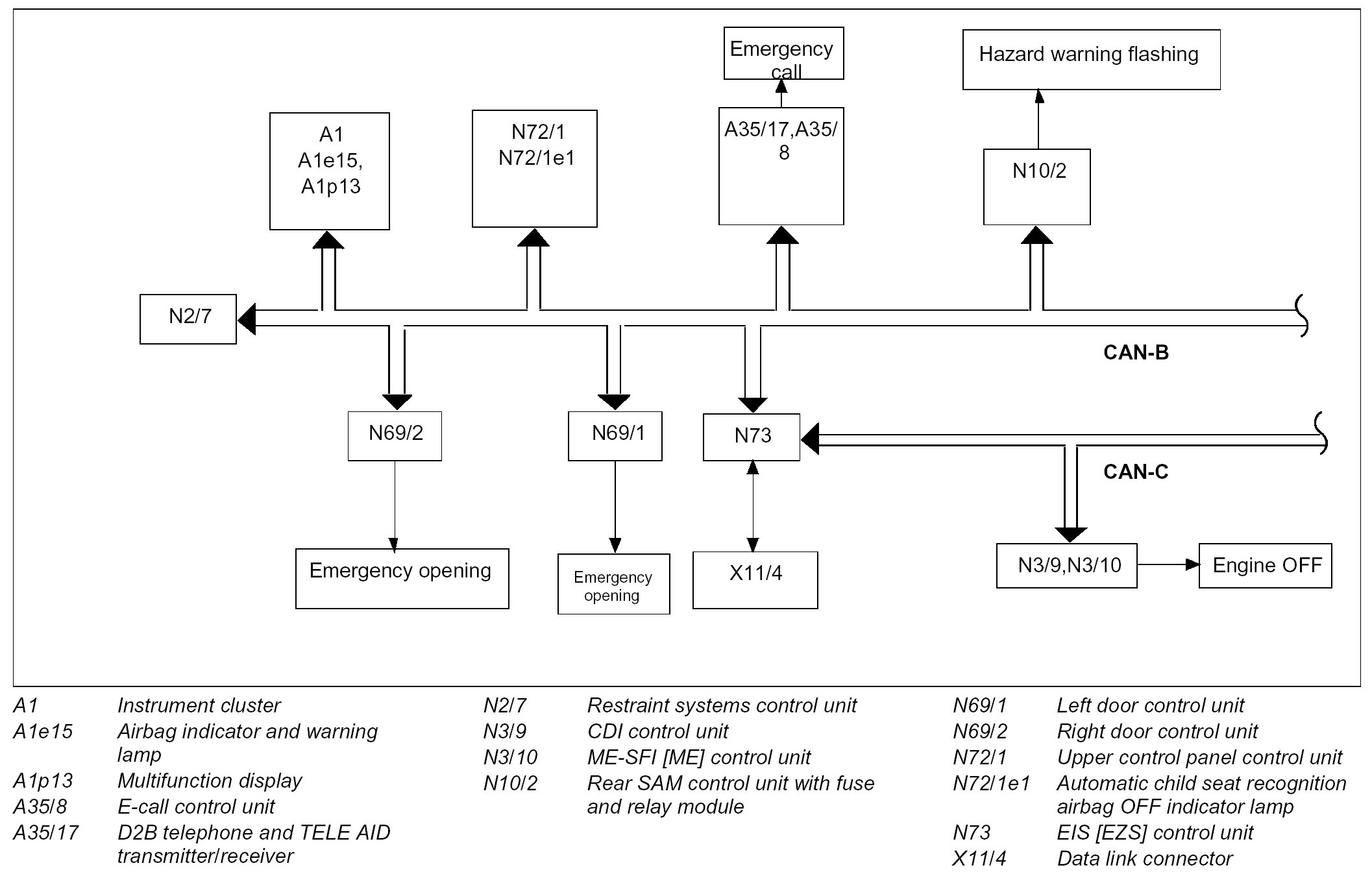

GF91.60-P-0002-03Q Supplemental Restraint System (SRS), Block Diagram



GF91.60-P-0002-03Q Supplemental Restraint System (SRS), Block Diagram
- up to 31.5.04

Component Identification:




Component Identification:
