AR46.10-P-0200Q Remove/Install Clock Spring Contact
AR46.10-P-0200Q Remove/Install Clock Spring Contact
AR46.10-P-0200Q Remove/install clock spring contact

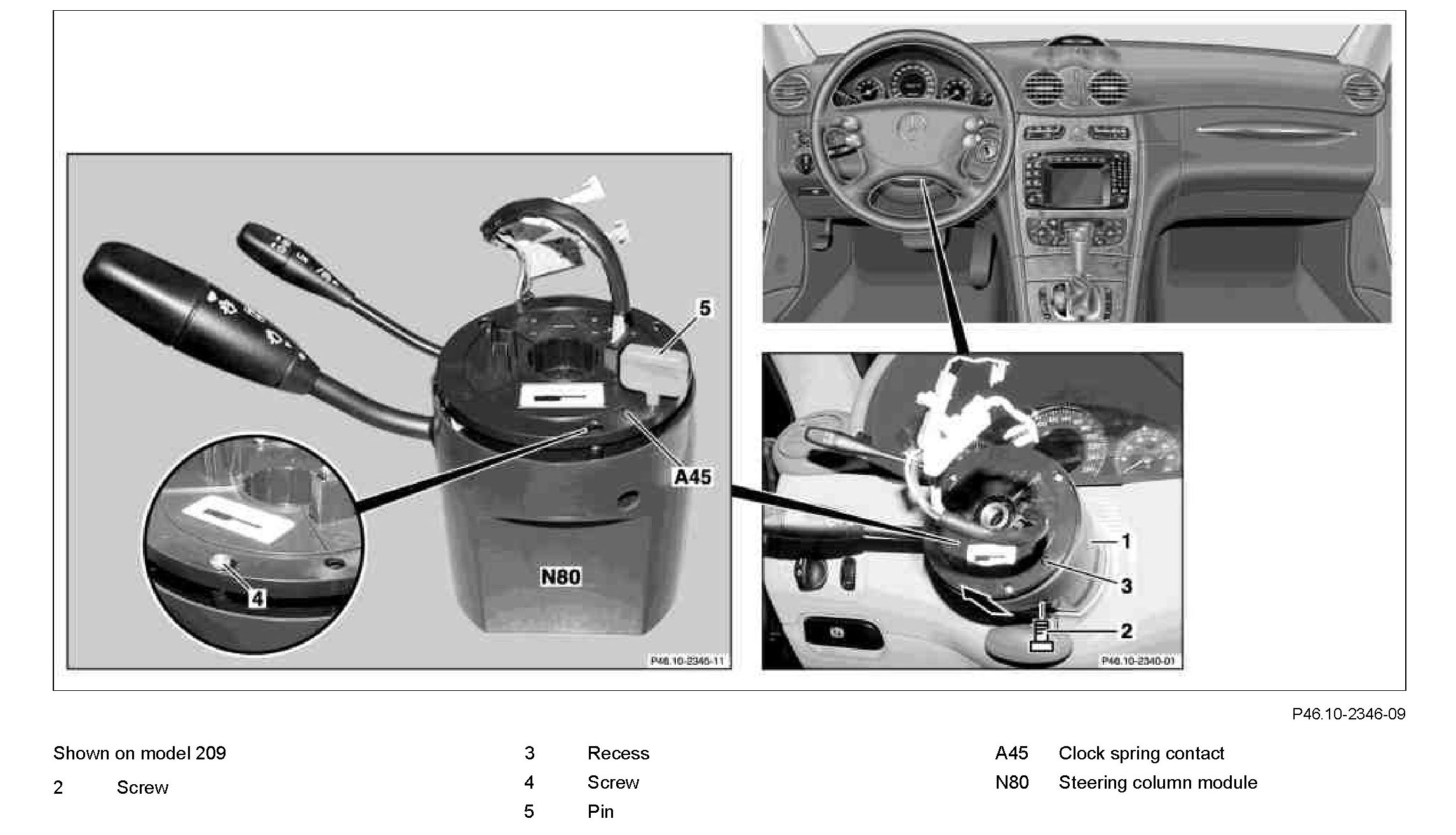

Component Identification:

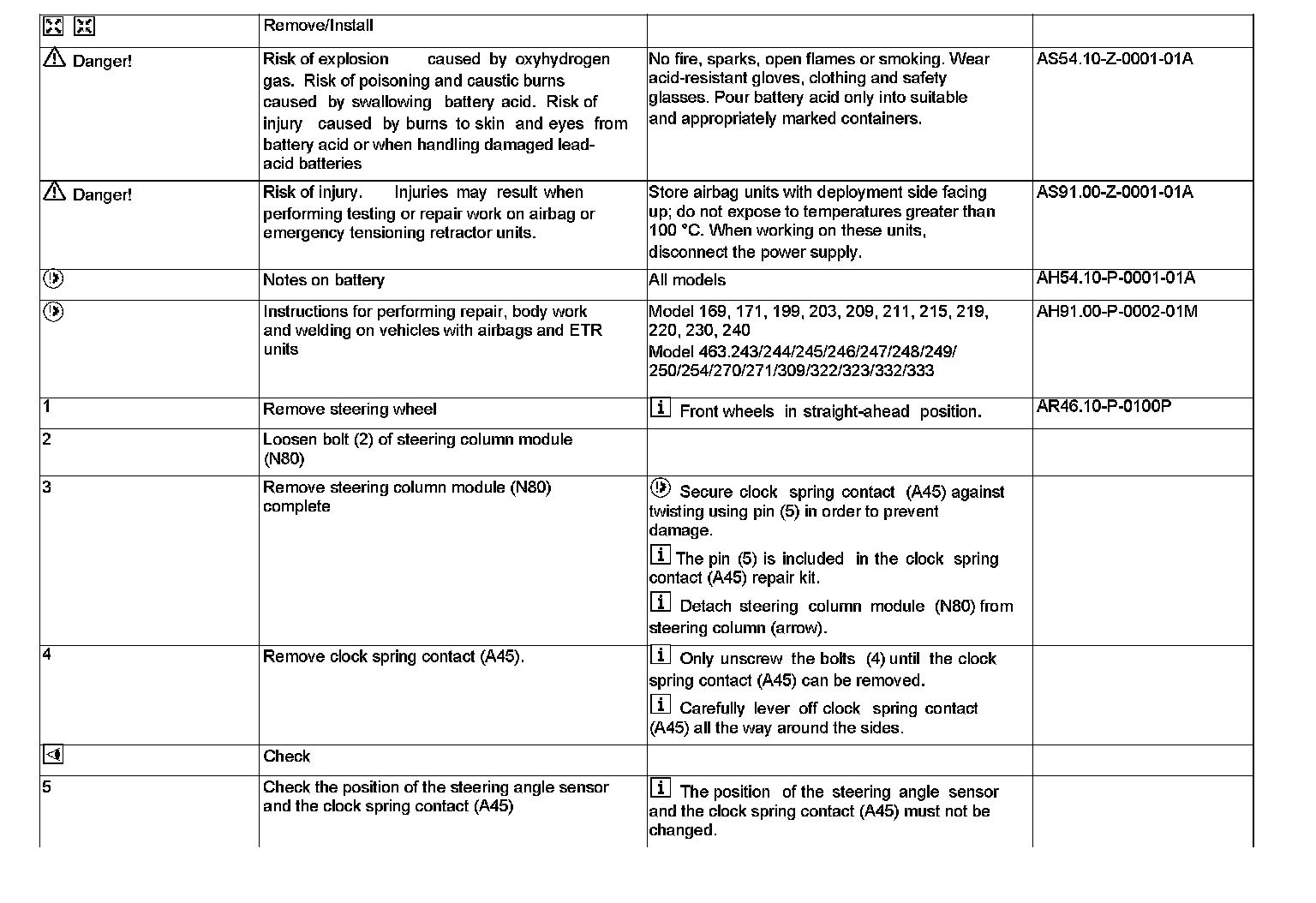

Steps 1 - 5:

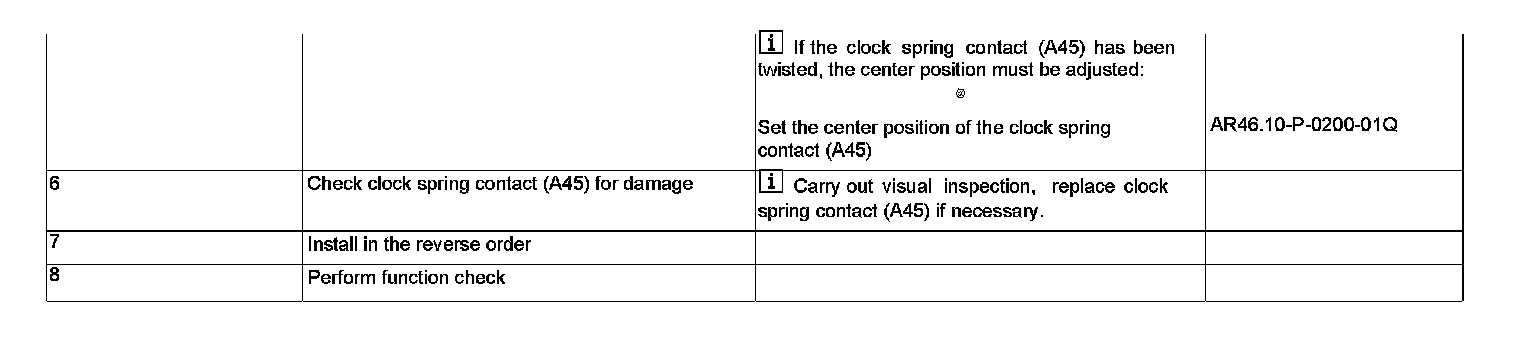

Steps 6 - 8:
