Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Wiper and Washer Systems
>>
Wiper Relay
>>
Locations
>>
Wiper On and Off Relay
Wiper On and Off Relay
Wiper ON And OFF Relay

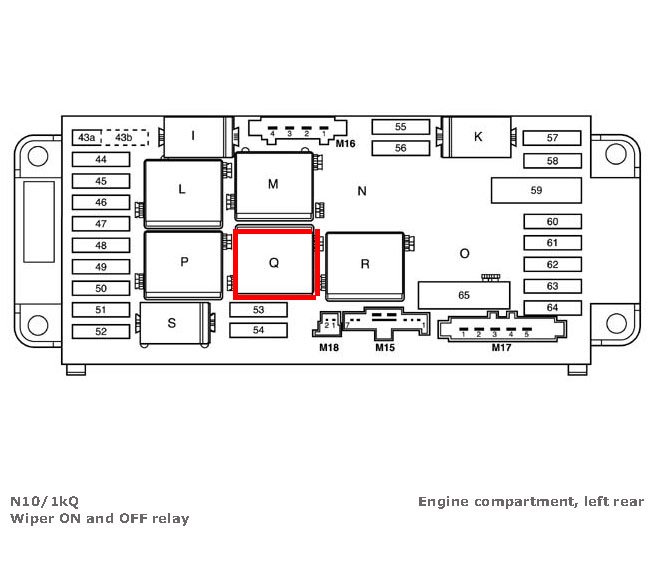

Wiper ON And OFF Relay (View 1):

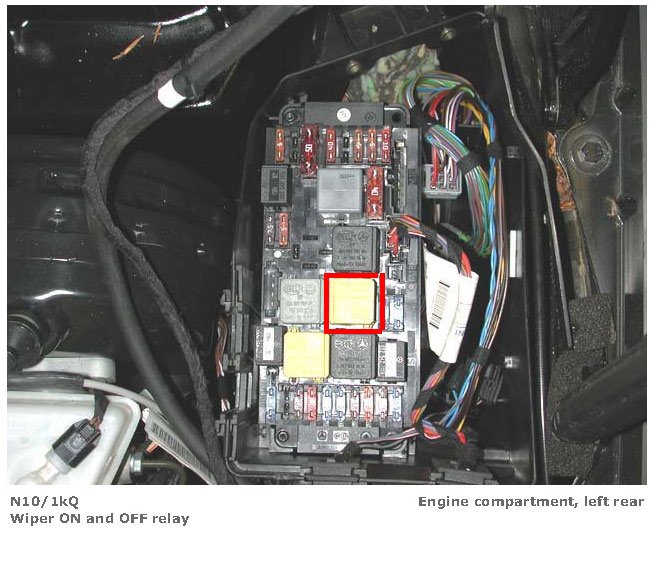

Wiper ON And OFF Relay (View 2):

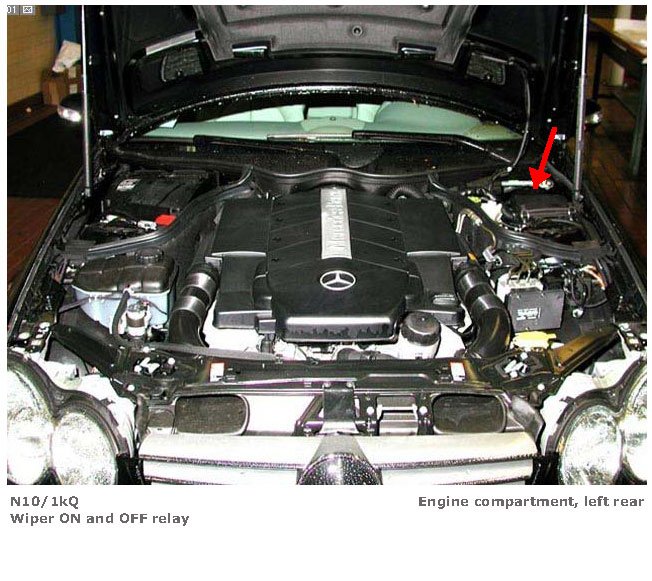

Wiper ON And OFF Relay (View 3):
